Installing an interface card

1.
Wear an ESD wrist strap and make sure it makes good skin contact and is correctly grounded.
2.
Loosen the mounting screws on the filler panel over the interface card slot with a Phillips
screwdriver and remove the filler panel.

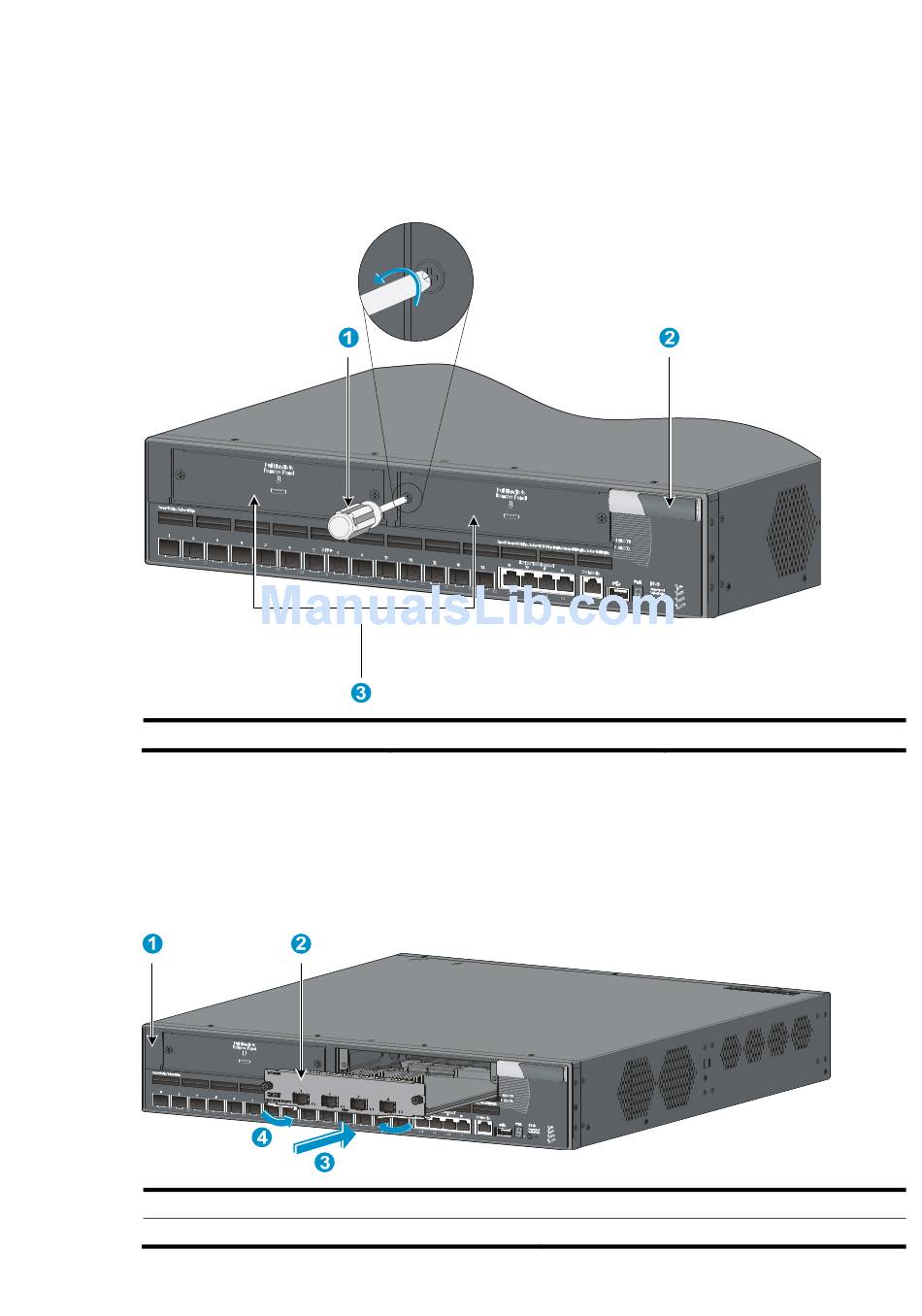

Figure 48 Removing the filler panel from an interface card slot
(1) Phillips screwdriver
3.
Put away the removed filler panel for future use.
4.
Unpack the interface card and make sure the ejector levers are perpendicular to the card panel.
5.
Gently push the interface card in along the slot guide rails until the interface card has good contact
with the switch chassis, and push the ejector levers inward.
Figure 49 Installing an interface card
(1) Chassis front panel
(3) Push the interface card
(2) Chassis front panel
(2) Interface card
(4) Push the ejector levers inward
36
(3) Filler panel
