Closed User Group (CUG)

What's this?
A Closed User Group is a network of PBXs to provide seamless connectivity. The PBXs connected in the network
behave as a single unit. Extension users of one PBX can reach the extension users of the other PBX without dialing
any access code, as if they were dialing extension numbers of their own PBX.
You can connect ETERNITY NE and other PBX(s) to over Analog trunks as well as over the IP Network.
How it works

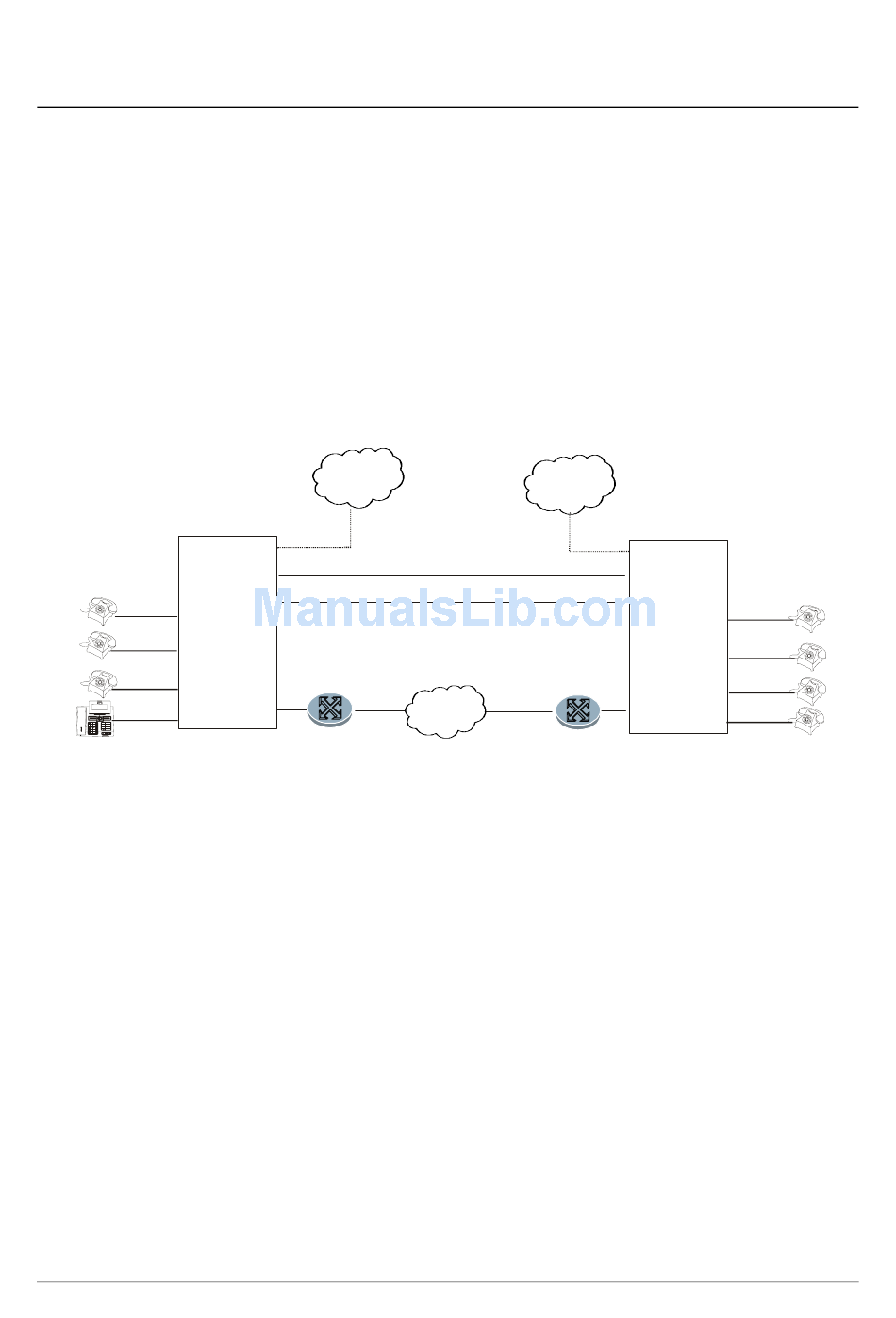

Let us understand this application with the help of this illustration:
Location A
201
SLT2
202
SLT3
203
SLT4
Menu S at 01 05: 30
204
DKP1
Fw d B us y F w d N R C an c el M ut e C on f er e nc e T r a ns f er
D N D Voi c e M ai l N am es R ed i al R ej e c t H ol d
1 2 abc 3 def
4 ghi 5 j k l 6 m no
C LI R 7 pqrs 8 t uv 9 w xyz
C A4 * 0 #
H ot l i n e C A3
S I P 2 C A2
S I P 1 C A1
Here,
• ETERNITY is installed at Location A and is networked with PBX A at Location B.
• To create a CUG over Analog Trunks,
• the CO port of ETERNITY NE is connected to the SLT (FXS) port of PBX A.
• the CO port (FXO) of PBX A is connected to an SLT port of ETERNITY.
• To create a CUG over IP Network, both ETERNITY NE and PBX A may be connected directly to the
Public network, in Peer-to-Peer mode.
• The Extension Numbers of ETERNITY NE and PBX A must be unique.
• Seamless connectivity can be provided to the extension users at both locations with suitable configuration
of ETERNITY NE and PBX A.
476
CO
CO1
CO2
SLT1
ETERNITY
115.118.161.165
Ethernet
WAN
Broadband
Router/Modem
CO
121.124.130.110
IP
Broadband
Router/Modem
Matrix ETERNITY NE System Manual
Location B
CO1
SLT1
CO2
SLT2
PBX A
SLT3
SLT4
Ethernet
WAN
SLT5
301
302
303
304
