6.2 Netbiter EasyConnect EC220

6.2.1 Input Wiring

Please see page 17 for how to set the Analog input switch.

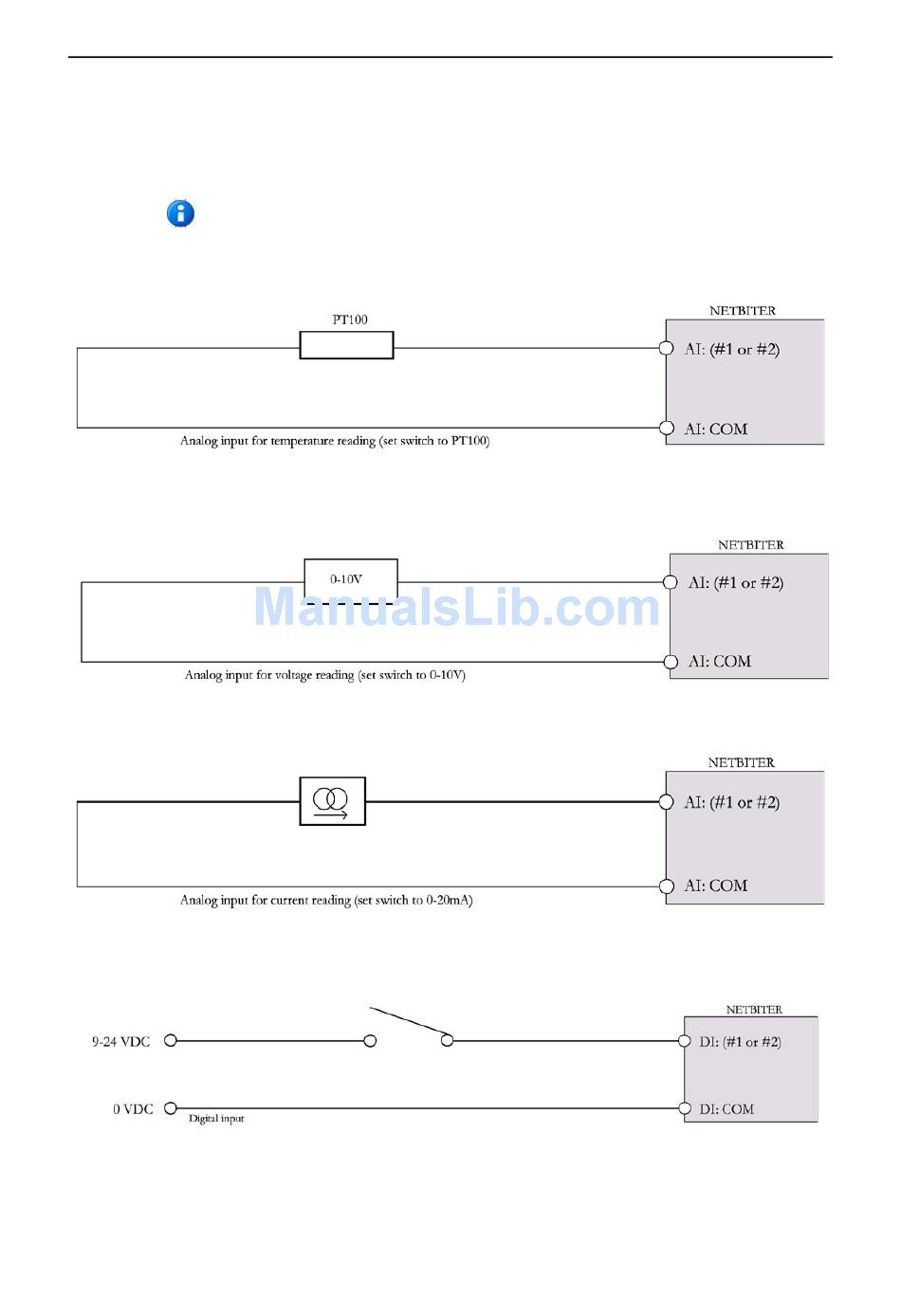

Wire an Analog Input for Temperature Readings
Wire an Analog Input for Voltage Readings
Wire an Analog Input for Current Readings
Connect a Device to a Digital Input
Netbiter EasyConnect
Doc.Rev. 2.10
I/O Wiring Diagrams 35
Doc.ID. HMSI-168-92
