5. LED Indicators

5.1 Netbiter EasyConnect EC150

5.1.1 Module Status LED

The Module Status LED indicates the status of the unit and whether there are any problems. Once the
unit is fully operational it will show 3 green flashes, as below. During the boot-up phase, the LED will
first show orange and then steady green. It will take approximately 30 seconds for the unit to start com-
pletely.
Unlit/OFF: No Power
Check the power supply.
3 Green Flashes: Running
After the bootup phase is complete, this indicates normal operation.
2 Red Flashes: Problem with Network Settings.
Ensure that the network settings are correct:.
• If set to DHCP, check that there is a DHCP server on the network.
• If set to use a static IP address, check the settings for the IP address, default gateway and DNS
server.
• If a proxy is used, make sure that settings are correct.
3 Red Flashes: No Connection to Netbiter Argos.
Ensure that one of the Ethernet ports 443, 80 or 5222 is open in the firewall, and if a proxy is used, that
the proxy settings are correct.

5.1.2 Serial Status LED

Flashing green:
Flashing red:
Netbiter EasyConnect
Doc.Rev. 2.10

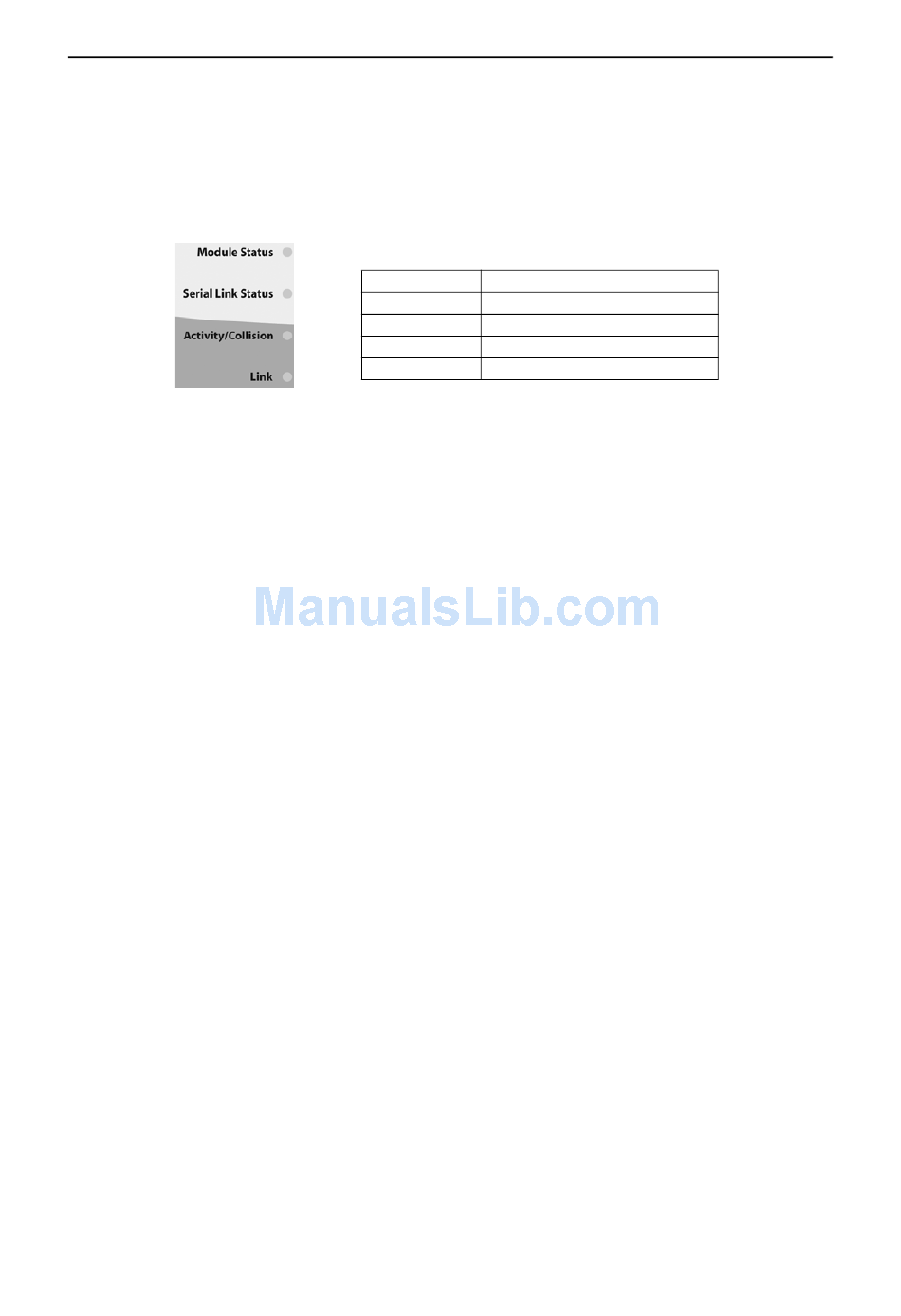

LED
Module Status
Serial Link Status
Activity/Collision
Link
Receiving serial packet
Transmitting serial packet
Indicates
Basic unit status and errors
Receiving or transmitting serial signal
The activity on the Ethernet link
The speed of the Ethernet link
Chapter 5
Doc.ID. HMSI-168-92
