- Page 1 Ewon Cosy+ INSTALLATION GUIDE IG-0031-00 1.0 en-US ENGLISH...
- Page 2 HMS Networks reserves the right to modify its products in line with its policy of continuous product development. The information in this document shall therefore not be construed as a commitment on the part of HMS Networks and is subject to change without notice. HMS Networks makes no commitment to update or keep current the information in this document.
-
Page 3: Table Of Contents
Table of Contents Page Preface ..........................3 About This Document .......................3 Document History ......................3 Related Documents ......................3 Trademark Information .....................3 Product Summary........................ 4 Concept of the Ewon Cosy+ ....................4 Hardware General Specification..................4 Typical Applications ......................4 Type & Part Numbers .......................4 Safety, Environmental &... - Page 4 Specification of the External Power Supply..............20 Digital Output & Digital Inputs..................21 Possible Features ......................22 IG-0031-00 1.0 en-US Ewon Cosy+ Installation Guide...
-
Page 5: Preface
General Reference Guide for Cosy+ RG-0011-00 Trademark Information Ewon ® is a registered trademark of HMS Industrial Networks SA. All other trademarks mentioned in this document are the property of their respective holders. IG-0031-00 1.0 en-US Ewon Cosy+ Installation Guide... -
Page 6: Product Summary

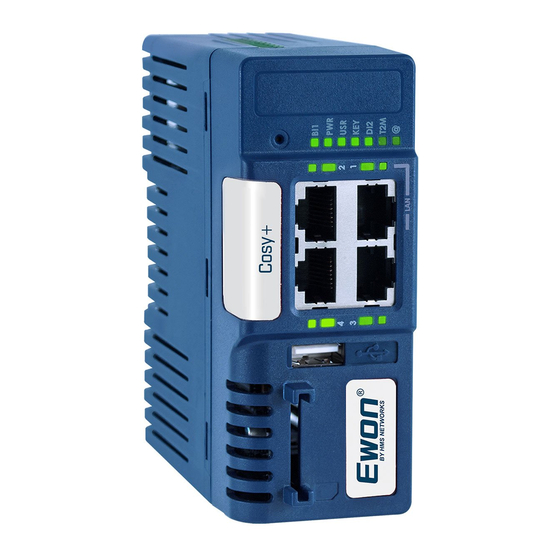

Product Summary 4 (24) Product Summary Concept of the Ewon Cosy+ There is a single model of the Ewon Cosy+ proposing the following communication media: • Ewon Cosy+ with 4 port Ethernet switch (4 * RJ45: 1 LAN and 3 WAN/LAN) Hardware General Specification Characteristic Value... -
Page 7: Safety, Environmental & Regulatory Information
Safety, Environmental & Regulatory Information 5 (24) Safety, Environmental & Regulatory Information Scope This chapter addresses safety, environmental & regulatory information for the Ewon Cosy+. Power Supply The external power supply is a third party device that is not part of this certification. The equipment should be supplied from external, separately provided power supply 12-24Vdc, 30W min., certified for 60°C and for altitudes up to 2000m. - Page 8 Safety, Environmental & Regulatory Information 6 (24) Fig. 1 DIN rail mounting position ( Description SIM card slot DIN rail mounting bracket Fig. 2 Wall mounting position Description SIM card slot Wall mounting bracket (suggested screw dimensions 4,2 x 32 mm) IG-0031-00 1.0 en-US Ewon Cosy+ Installation Guide...
- Page 9 & lower ventilation openings of the unit. A free gap of at least 1 cm must be respected on each side of the unit. Fig. 3 Free gap surrounding the Ewon Cosy+for heat dissipation. 3.4.4 Mechanical Dimensions All units are expressed in millimeters —...
- Page 10 Safety, Environmental & Regulatory Information 8 (24) IG-0031-00 1.0 en-US Ewon Cosy+ Installation Guide...
-
Page 11: Internal Battery
Safety, Environmental & Regulatory Information 9 (24) Fig. 4 Mechanical dimensions of the Ewon Cosy+ 3.4.5 Cabling Rules Shielded cables must be used for Ethernet and USB connectivity to comply with the EMC requirements. USB cable must be: • Shorter than 3m •... - Page 12 Safety, Environmental & Regulatory Information 10 (24) • Keep new and used batteries away from children. • If the cell battery is swallowed, it can cause several internal burns in just 2 hours and can lead to death. • If the equipment’s enclosure do not close securely, stop using the product and keep it away from children.
-
Page 13: Hardware Description
Hardware Description 11 (24) Hardware Description Label The identification label of the Ewon Cosy+ is placed on the right hand side of the housing. The different parts of the label are described hereunder: Label Description Part Number (see syntax table below) Serial Number in the form: YYWW-SSSS-PP •... -
Page 14: Overall Description
Hardware Description 12 (24) EC7133m_ccLL[suffix] (continued) Description Acceptable values Position(s) Modem communication option No modem 00 = no software option Contains one or more characters ( digits and/or letters) Regroups EN, FR, DE, ES and IT Defines the firmware language [suffix] Optional “... -
Page 15: Lan Switch Specifications
Hardware Description 13 (24) 4.2.3 Status LED All Versions Label Description Button BI1 input Steady green = reset button is being pressed Power Steady green = unit is powered on User Blinking green slowly = Unit is ok Orange pattern = special attention required Fig. -
Page 16: Ip Address & Access To The Web Configuration
IP Address & Access to the Web Configuration 14 (24) IP Address & Access to the Web Configuration Factory Default IP Settings Characteristics Values LAN IP address 10.0.0.53 LAN subnet mask 255.255.255.0 Gateway 0.0.0.0 The WAN IP address is set by default in DHCP mode. Powering On Power on the unit and wait approximately 2 minutes until the boot process is completed. - Page 17 IP Address & Access to the Web Configuration 15 (24) • The eCatcher Easy Setup This method benefits from the use of a USB stick or SD card that holds a configuration file created inside eCatcher. More info in Connect an Ewon device to Talk2M from Related Documents, p.
-
Page 18: Troubleshooting
Troubleshooting 16 (24) Troubleshooting Normal Boot Process The normal boot process of the Ewon Cosy+ takes approximately 1m30 to 2 minutes to complete. During this process, all LEDs are first shortly on (except BI1) then only the PWR LED stays steady green. -
Page 19: Impact Matrix Of A Reset
Troubleshooting 17 (24) • Power off the Ewon Cosy+ and power it on again to reboot the unit in a normal mode. As described before, the Cosy+ returns to its default COM parameters and factory IP addresses (such as LAN 10.0.0.53) after this level 2 reset is performed. Any other LED pattern reflects a problem. - Page 20 This page intentionally left blank...
-
Page 21: Connector Pinout & Related Specifications
Appendix A: Connector Pinout & Related Specifications 19 (24) Connector Pinout & Related Specifications Main Connector As shown in the below picture, the female mating connector is labeled with the appropriate symbols. Characteristic Value Connector type MINICONNEC MC model Type MC 1.5 / 9–ST-3.5 Pitch = 3.50mm 9–pin female 0.25Nm... - Page 22 Appendix B: Specification of the External Power Supply 20 (24) Specification of the External Power Supply The Ewon Cosy+ should be supplied from external, separately provided power supply 12-24Vdc, 30W min. certified for 60°C and for altitudes up to 2000m. Power supply should be separately certified according to UL/IEC 62368-1 with ES1, PS2 output or separately certified to IEC/UL60950–1 with LPS output or Class2 per NEC..
- Page 23 Appendix C: Digital Output & Digital Inputs 21 (24) Digital Output & Digital Inputs Fig. 10 Current scheme of the main connector Characteristic Value Type of digital output Open drain MOSFET 200 mA Maximum current (ext,source) Isolation (both DI & DO) 1.5 kV DI voltage range 0 to 24 VDC...
- Page 24 Appendix C: Digital Output & Digital Inputs 22 (24) Fig. 11 External wiring for the Digital Output Possible Features Wiring the Digital Output & Inputs can be used to externalize some features (as connectivity condition) as described below: Connector Description Authorize or prevent the Internet connection.
- Page 25 This page intentionally left blank...
- Page 26 © 2021 HMS Industrial Networks Box 4126 300 04 Halmstad, Sweden info@hms.se IG-0031-00 1.0 en-US / 2021-04-30 / 22283...
