- Page 1 Anybus ® X-gateway ™ USER MANUAL HMSI-27-262-EN 3.1 ENGLISH...
- Page 2 Important User Information Liability Every care has been taken in the preparation of this document. Please inform HMS Industrial Networks AB of any inaccuracies or omissions. The data and illustrations found in this document are not binding. We, HMS Industrial Networks AB, reserve the right to modify our products in line with our policy of continuous product development.
-
Page 3: Table Of Contents
Table of Contents Page Preface ..........................3 About This Document.....................3 Document history......................3 Document Conventions ....................4 Document-specific Conventions ..................4 Description ........................5 Introduction ........................5 Data Exchange ......................6 Status and Diagnostics....................7 Controlling the X-gateway from the Network..............9 Error Handling .......................9 Data Mapping Examples....................10 Installation ........................ - Page 4 This page intentionally left blank...
-
Page 5: Preface
Preface 3 (18) Preface About This Document This document describes the functions and general configuration of the Anybus X-gateway. Documentation and software for the specific fieldbus and Ethernet network interfaces can be downloaded from www.anybus.com/support. Document history Version Date Description 1.00 2004-04-02 First release... -
Page 6: Document Conventions
This is a cross-reference within this document: Document Conventions, p. 4 This is an external link (URL): www.hms-networks.com This is additional information which may facilitate installation and/or operation. This instruction must be followed to avoid a risk of reduced functionality and/or damage to the equipment, or to avoid a network security risk. -
Page 7: Description

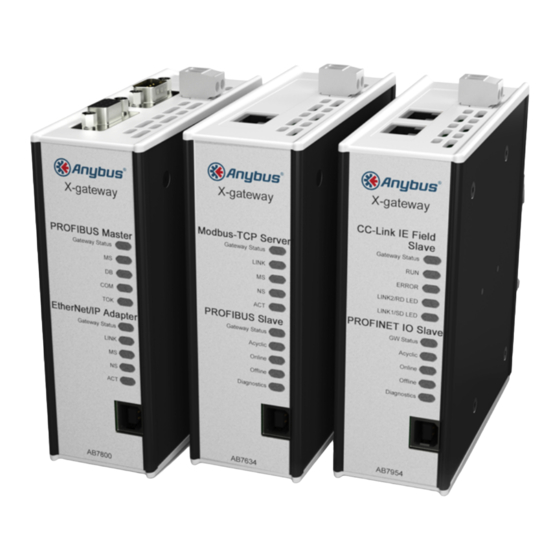

Description 5 (18) Description Introduction The Anybus X-gateway consists of two Anybus fieldbus or Ethernet network interface modules and an intelligent gateway platform which transfers data between the two networks. The X-gateway can be configured via a USB port using a Windows-based application, Anybus Configuration Manager. -
Page 8: Data Exchange
Description 6 (18) Data Exchange Data From Data From Network 2 Network 1 Network Interface 1 Network Interface 2 Data From Data From Network 1 Network 2 Fig. 2 Anybus X-gateway data exchange The terminology and definitions used for different types of data vary between different network types. -
Page 9: Status And Diagnostics
Description 7 (18) Status and Diagnostics 2.3.1 Status Word Runtime status and diagnostic information can be provided through the Status Word, which (if enabled) takes up the first two bytes of the output area (data to the network). The Status Word is disabled by default and must be enabled for each network separately through Anybus Configuration Manager. - Page 10 Description 8 (18) 2.3.2 Live List (Master Configurations Only) The Live List provides the active status of the slaves associated with an on-board network inter- face acting as master. The list is assembled by the master interface and forwarded to the other network each gateway cycle.
-
Page 11: Controlling The X-Gateway From The Network
Description 9 (18) Controlling the X-gateway from the Network Some functions in the X-gateway can be controlled from the network by setting the correspond- ing bits in the Control Word, which (if enabled) takes up the first two bytes of the input area (data coming from the network). -
Page 12: Data Mapping Examples
Description 10 (18) Data Mapping Examples Usage of the Control Word, Status Word and Live List affect how data is mapped to the network interfaces in the Anybus X-gateway. The following generic examples describe typical configurations. The actual representation of data on the network is highly network-specific and is described in the Network Guide for the re- spective interface. -
Page 13: Installation
Installation 11 (18) Installation DIN Rail Mounting The unit must be electrically grounded through the DIN rail for EMC compliance. Mount on DIN rail The unit is designed to be mounted on a standard DIN rail. No tools are needed. Hook the unit onto the upper lip of the rail and push gently downwards. -
Page 14: Connectors And Indicators
Installation 12 (18) Connectors and Indicators GW Status GW Status Fig. 7 Front and top views 3.2.1 Power Connector (X3) Function + 24 VDC Power ground Fig. 8 Power connector 3.2.2 USB Connector (X4) Signal +5 V input USBDM (USB communication) USBDP (USB communication) Signal ground Housing... -
Page 15: Anybus Configuration Manager
Anybus Configuration Manager 13 (18) Anybus Configuration Manager Introduction The Anybus X-gateway usually requires only a minimum of configuration during setup, since the on-board network interfaces are configured from the respective networks. Some parameters in the gateway may however need to be adjusted to suit specific networks and applications. The gateway settings are accessed via the USB port of the X-gateway using the Windows- based application Anybus Configuration Manager. -
Page 16: Setup
Anybus Configuration Manager 14 (18) Setup Download Anybus Configuration Manager and Anybus Transport Provider from www.anybus.com/support. Unzip the contents of each archive in a folder on your computer and double-click on the setup executable, then follow the instructions in the installation wizard. Connect a USB cable between the computer and the USB port on the X-gateway. -
Page 17: A Technical Data
Appendix A: Technical Data 15 (18) Technical Data Technical Specifications Model name Anybus X-gateway Dimensions (L x W x H) 114 x 44 x 127 mm Weight 400 g Operating temperature -25 to +65 °C (IEC 60068-2-1 and IEC 60068-2-2) (max. -
Page 18: B Regulatory Compliance
When this product reaches its end of life, contact local authorities to learn about disposal and recy- cling options, or simply drop it off at your local HMS office or return it to HMS. For more information, see www.hms-networks.com. - Page 19 Appendix B: Regulatory Compliance 17 (18) UL Certification This equipment is suitable only for use in Class I, Division 2, Groups A, B, C and D OR non-haz- ardous locations only. Combinations of equipment in your system are subject to investigation by the local Authority Having Jurisdiction at the time of installation.
- Page 20 © 2018 HMS Industrial Networks AB Box 4126 300 04 Halmstad, Sweden info@hms.se HMSI-27-262-EN 3.1.7971 / 2018-03-23...
