Gpm400 Processor Module - Raymarine G-Series system Installation & Commissioning Instructions

Remember
Where constraints on the installation prevent any of the above
recommendations:
• Always allow the maximum separation possible between differ-
ent items of electrical equipment.
• This will provide the best conditions for EMC performance for
the installation.
Suppression ferrites
Raymarine cables may be fitted with suppression ferrites. These
are important for correct EMC performance. Any ferrite removed to
facilitate installation must be replaced in the original position imme-
diately after the installation is complete.
• Use only ferrites of the correct type, supplied by Raymarine au-
thorized dealers.
Connections to other equipment
If Raymarine equipment is to be connected to other equipment
using a cable not supplied by Raymarine, a Raymarine suppres-
sion ferrite MUST always be attached to the cable near the
Raymarine unit.
5.2

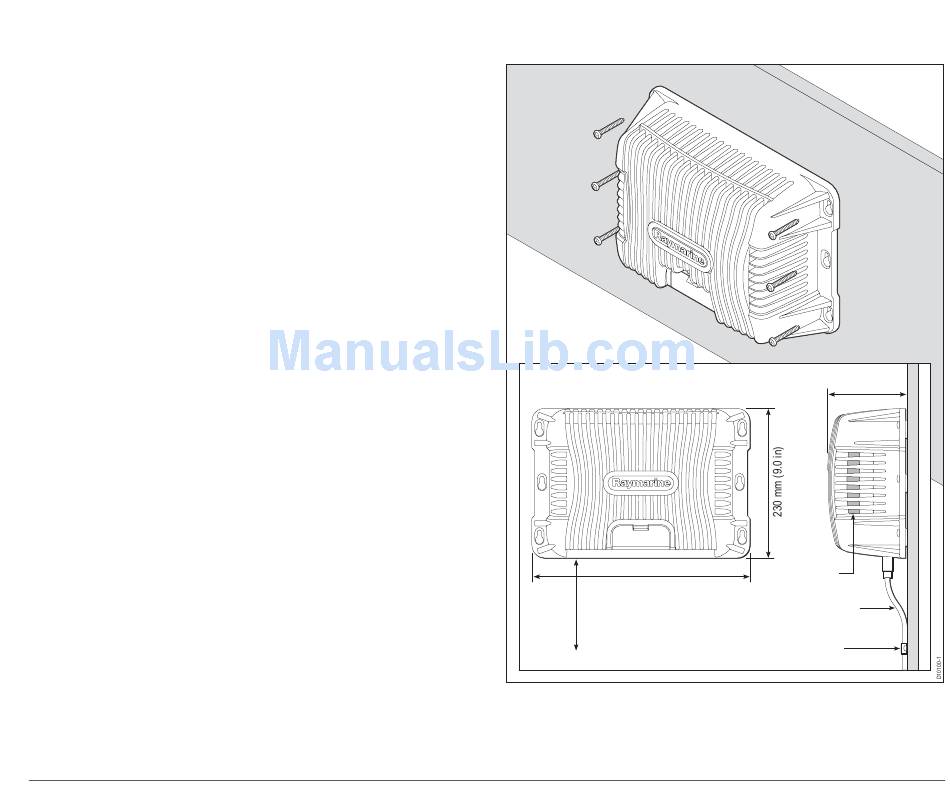

GPM400 Processor module

335 mm (13.2 in)
Minimum ventilation
clearance of XXX mm
around total perimeter
59
125 mm (4.92 in)
Air vents
Minimum radius
bend of cable
(100mm)
Cable clip
Chapter 5: Installation and mounting
