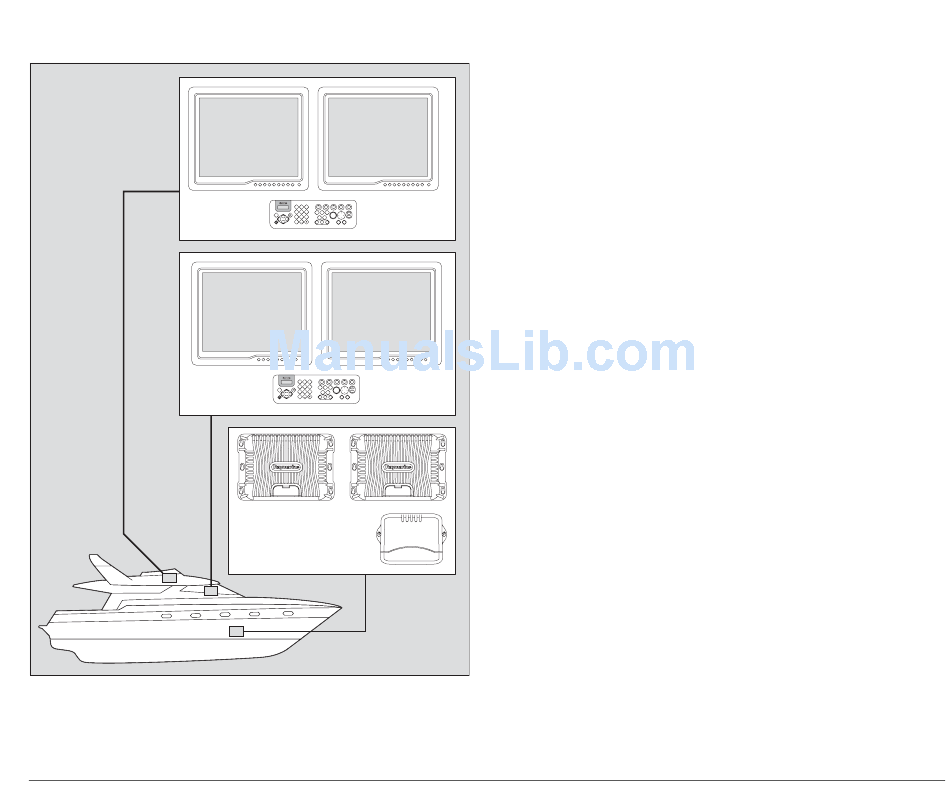

Typical Nav station arrangement
Nav Station 1
(Flybridge)
Nav Station 2
(Bridge)
Each display within a Nav Station must be connected to a different
GPM400. This is because the master and repeat displays con-
nected to any single GPM400 will both show the same information
or page.
1 2 3
ABC DEF
4 5 6
WPTS
GHI JKL MNO PAGE MOB MENU
ENTER
7 8 9
PQRS TUV WXYZ ACTIVE DATA
0
DODGE STANDBY PILOT OK CANCEL
1 2 3
ABC DEF
4 5 6
WPTS
GHI JKL MNO PAGE MOB MENU
ENTER
7 8 9
PQRS TUV WXYZ ACTIVE DATA
0
DODGE STANDBY PILOT OK CANCEL
Below decks components
(GPM400, GVM400 etc..)
See also
For more information on nav station connections, see
2: Typical systems.
7.3

Select Master GPM

The GPM400 master handles the data from the marine electronics
installed around the boat. It receives data (e.g. via SeaTalk
transmit this around the G-Series system via the SeaTalk
network.
Note: The initial set up should be done at a monitor connected to
the master GPM. See
D10239-1
75
Chapter
page 74.
Chapter 7: Initial Setup
