Fishfinder Checks - Raymarine G-Series system Installation & Commissioning Instructions

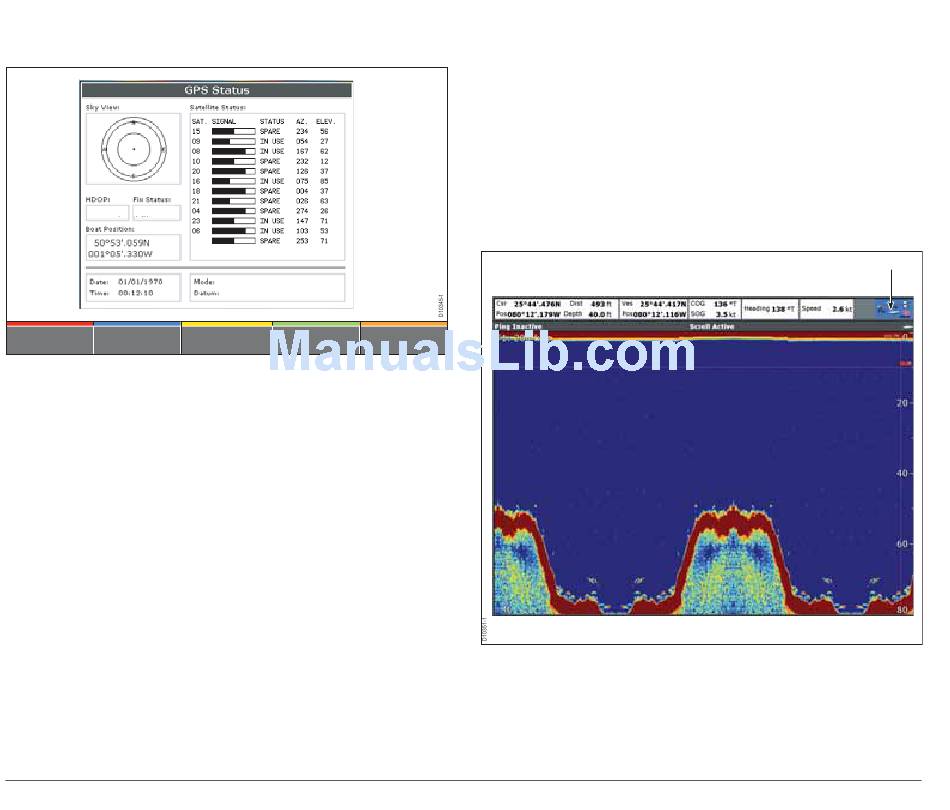

Typical GPS status screen
SD-FIX
00001.0
DIFF GPS
ON OFF
This screen may help diagnose a NO FIX status. It provides infor-
mation for each for each tracked GPS satellite.
HDOP
The HDOP (Horizontal Dilution Of Position) value shown on screen
provides an indication of the positional accuracy. This will vary
depending upon the relative position of the GPS satellites and the
prevailing conditions.
An ideal figure is 1.0. which indicates optimum accuracy.
A consistently high value (6 or above) may be associated with
NO-FIX occurring frequently. Check that the GPS antennae has a
clear view of the entire sky and refer to the troubleshooting section
on page 95.
See also
For further information and details regarding differential GPS, refer
to the separate user reference manual.
G-Series Installation & Commissioning
0
0
0
0
0
0
0
0
0
0
0
122 0
HDOP FIX STATUS
SATELLITE DIFFERENTIAL
WGS 1984
DIFF SETUP OTHER SETUP
8.5

Fishfinder checks

For the fishfinder window to function the system must be connected
to a digital sounder (e.g. DSM400).
To select a fishfinder screen:
• Press the PAGE key to select from the current page set.
• Press and hold the PAGE key to select from all available
screens.
Typical fishfinder screen
RESTART GPS
Points to check:
• Fishfinder screen is scrolling and showing graphical
information.
• FIshfinder status icon animated in top right hand corner.
86
Fishfinder status
icon
