Assign monitors
Information required
IP Address
From the list displayed, select the IP address of the
monitor being assigned.
• DISCOVER IP
If you are unsure of which monitor to select, press this
softkey to identify the IP address of each monitor.
• IDENTIFY MONITOR
You can confirm that the correct monitor has been
assigned by pressing this softkey. The selected
monitor will then display its OSD menus, allowing it to
be identified.
Input
Select the monitor input to which the G-Series cable is
connected (e.g. VGA 1)
To identify the correct monitor
Softkeys are provided to help you identify the correct monitor.
• DISCOVER IP
If you are unsure of which monitor to select, press this softkey
to identify the IP address of each monitor.
• IDENTIFY MONITOR
You can confirm that the correct monitor has been assigned by
pressing this softkey. The selected monitor will then display its
OSD menus, allowing it to be identified.
G-Series Installation & Commissioning
7.5
Monitor
type(s)
Introduction
RAY monitors only
You must assign each G-Series Keyboard to control a Nav station
or an individual monitor.
To open the Assign Keyboards menu:
MENU
SYSTEM SETUP
RAY monitors only

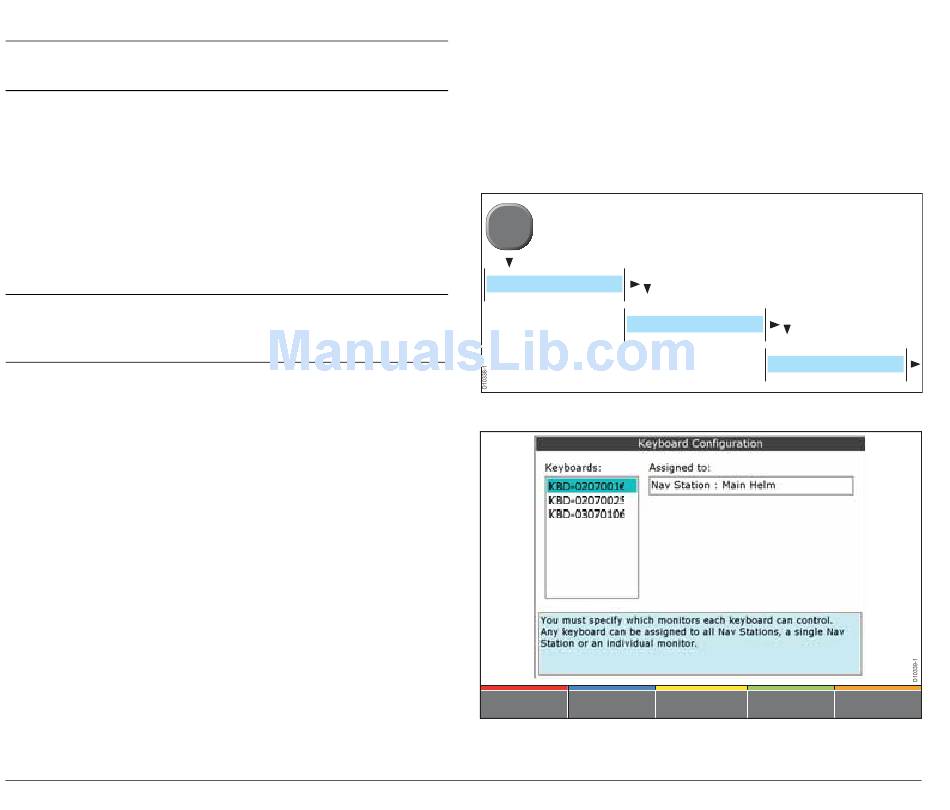

Keyboard Configuration - menu and soft keys
ASSIGN TO NAV STATION
• KBD-XXXXXXXXX
The available Keyboards are listed by serial number. Cross re-
78

Assign Keyboards

SYSTEM CONFIGURATION
ASSIGN TO MONITOR
ASSIGN KEYBOARDS
