8.1

Language setting

The system will operate in the following languages:
English (US) English (UK)
Danish Dutch
French German
Icelandic Italian
Korean Norwegian
Russian Spanish
To select a language:
MENU
SYSTEM SETUP
LANGUAGE
Select the required language from those displayed.
8.2

Compass heading setup

The G-Series system provides options to set up a Raymarine
compass.
Note: If the compass is connected to a Raymarine autopilot, you
should calibrate the compass heading using the autopilot
controller, and proceed to the Radar setup
G-Series Installation & Commissioning

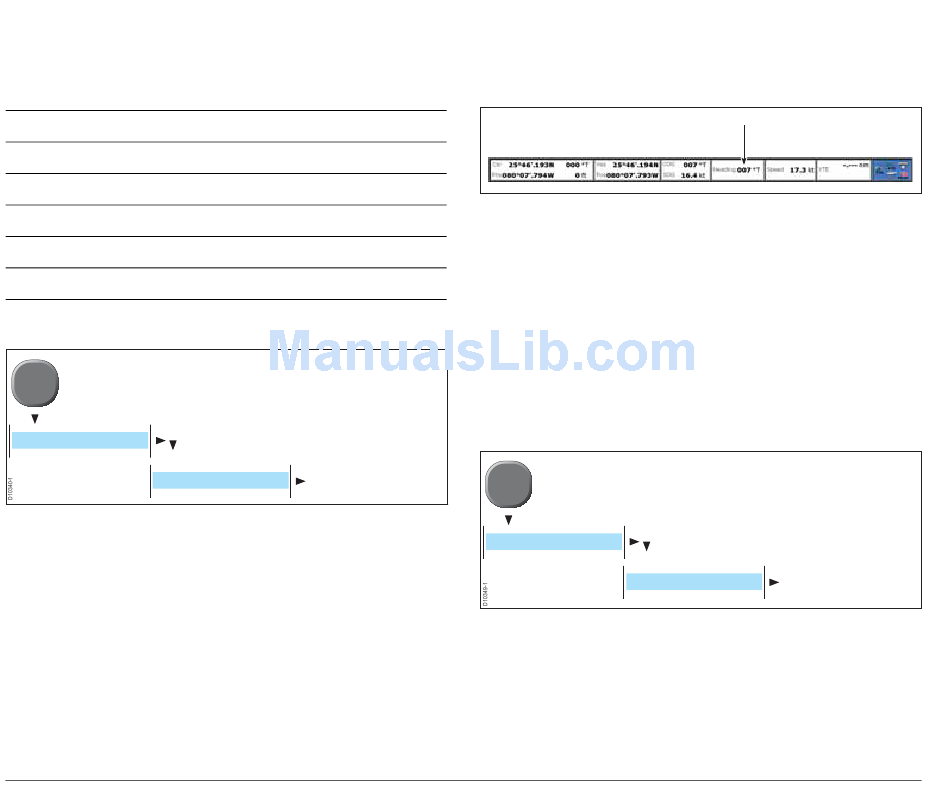

Check heading
Provided that the system has a compass connected, the compass
heading is displayed in the data bar at the top of the screen:
Chinese
Finnish
Greek
D10351-1
If no heading is displayed this could indicate a problem with the
Japanese
autopilot or compass connection. See
Portuguese
Troubleshooting. Page 91
Swedish
Linearize (swing) the compass
If your system has a Raymarine compass (e.g ST80 or Fasthead-
ing sensor) which is not connected to an autopilot system, then you
will need to linearize (swing) the compass using the G-Series
system.
To linearize your compass:
1. Once you have selected LINEARIZE COMPASS, follow the on-
2. When instructed to align heading, press the ALIGN HEADING
(page 83).
82
for more information.
MENU
COMPASS SETUP
LINEARIZE COMPASS
screen instructions.
soft key and then turn the rotary control one click at a time to
fine tune the heading.
Compass Heading
Chapter 9:
