Cable Part No
Power cable extension Not supplied
See Appendix C for other cables and accessories.
See also
• For more detailed installation information refer to the separate
users guide supplied with the display.
• Ensure you record connections to the GPM400 on the schemat-
ic diagram. See Appendix B - Nav Station schematic
G-Series Installation & Commissioning
Notes
You may extend the power cable
if required. See page 35.
.
4.5

Keyboard connections

The G-Series Keyboard communicates using the SeaTalk
tem. It may be connected directly to the backbone (wired) or use a
remote basestation (wireless).
Note: You should have at least one permanently wired keyboard.
In the event that any wireless keyboards are lost, the wired
keyboard can be used to control the system.
Maximum quantity of Keyboards
The G-Series system will support up to 8 keyboards.
Schematic diagram
When connecting a keyboard to the system, record its details on
your system/schematic diagram. You will need this information dur-
ing commissioning. (See

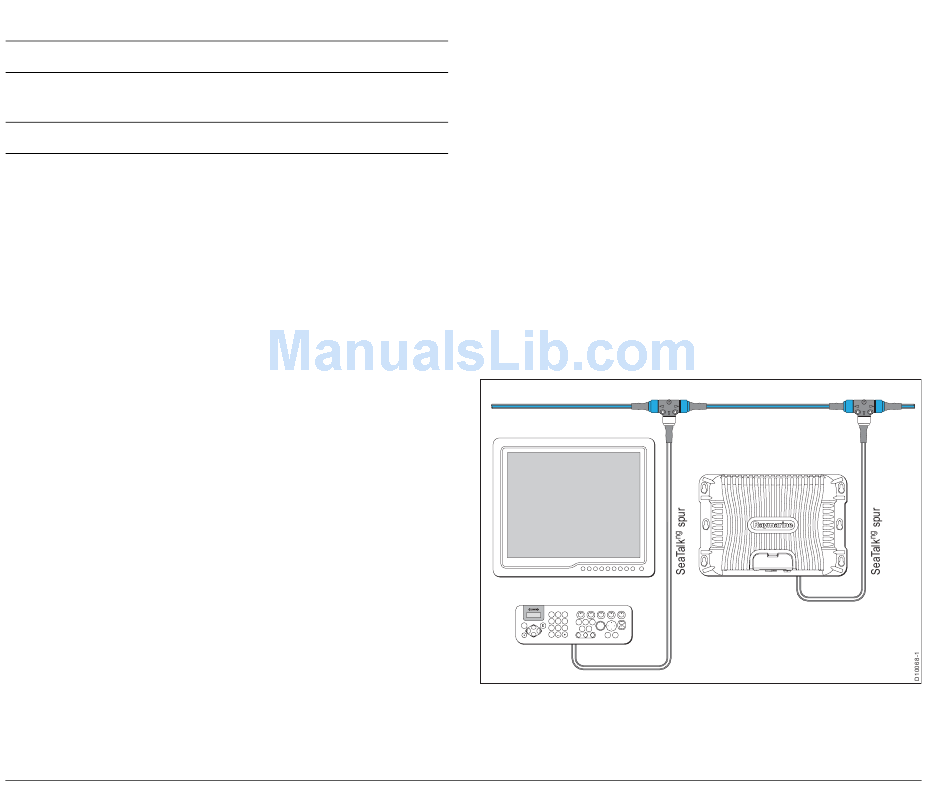

Wired keyboard system
Monitor
Keyboard
1 2 3
ABC DEF
4 5 6
WPTS
GHI JKL MNO PAGE MENU
MOB
ENTER
7 8 9
PQRS TUV WXYZ ACTIVE DATA
. 0
DODGE STANDBY PILOT OK CANCEL
40
Appendix B for sample diagrams.)
ng
SeaTalk backbone
GPM 400
ng
sys-
