Setup

Preliminary Connections

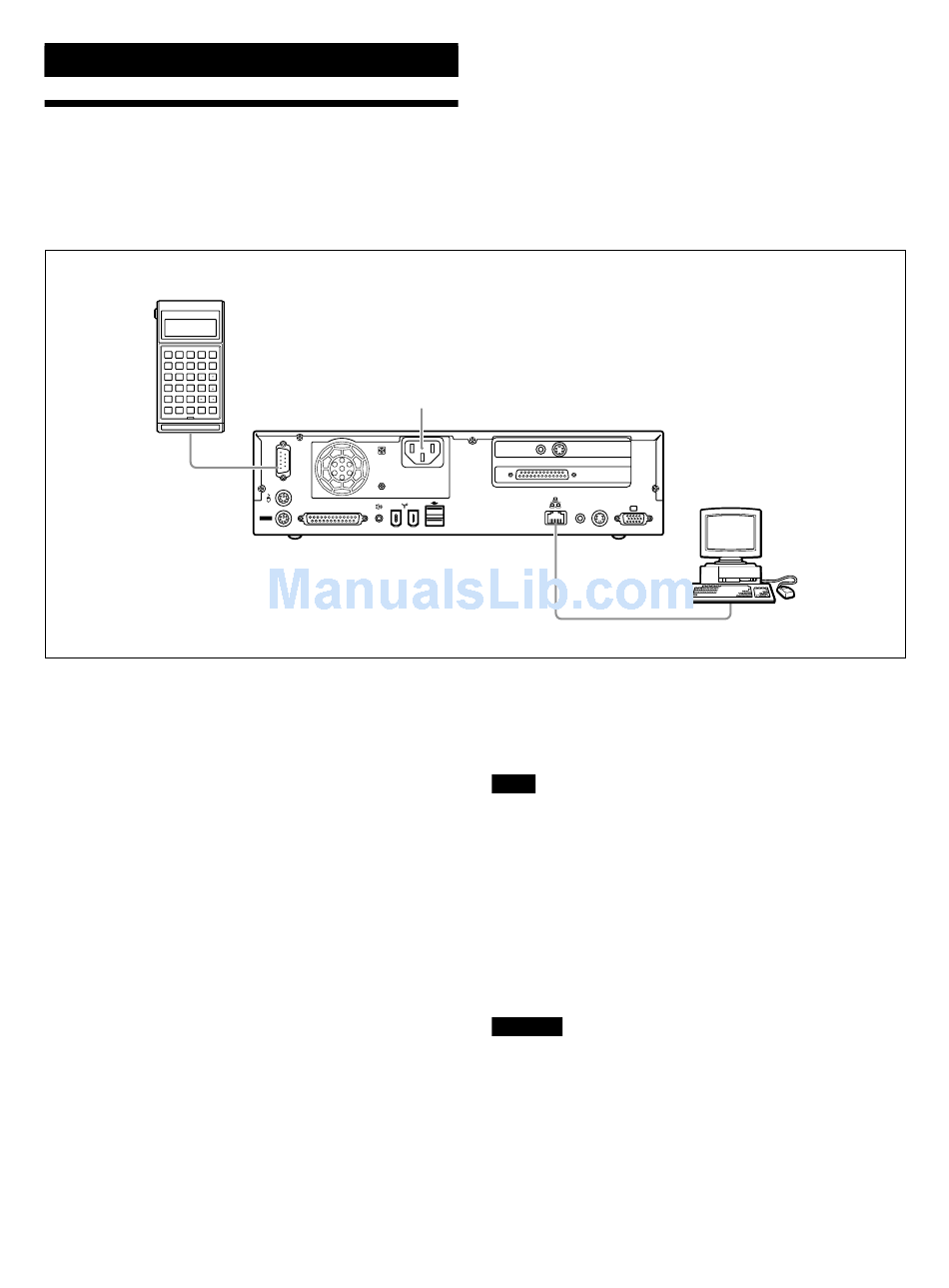

Before using the UPA-P100MD (locally or through a
network), you need to make certain connections. To
make these connections, use the following procedure.
RM-P110 Remote
Control Unit
A
B
C
D
F1
F2
F3
F4
ESC
E
F
G
H
I
F5
F6
F7
F8
BS
J
K
L
M
N
1
2
3
O
P
Q
R
S
4
5
6
T
U
V
W
X
7
8
9
Y
Z
abc
ABC
0
SP
ENT
RM-P110
1
Locate the UPA-P100MD's power cord.
2
On the rear panel of the device, locate the AC inlet.
3
Connect the female end of the power cord to the
AC inlet.
4
Connect the RM-P110 Remote Control Unit
connector to the remote control port on the rear
panel. When using a foot switch or other such
external control device, connect the foot switch to
the parallel port on the rear panel of the UPA-
P100MD.
5
On the rear panel of the UPA-P100MD, locate the
network port. Connect a LAN cross cable to this
port.
AC Power Inlet
6
Connect the other end of the LAN cross cable to
the network port of your computer. You are now
ready to make preliminary settings.
Note
• Before connecting the unit, make sure that you are
using the appropriate type of cross cable. If you are
not sure of what type of cable to use, ask your system
administrator.
• If your computer is connected to a network, to be able
to make the preliminary settings of the UPA-
P100MD, it is necessary to isolate your computer
from the network so that the connection between the
UPA-P100MD and your computer is local.
Warning
The Remote control port outputs 5 V; therefore do not
connect it to the RM-P110 Remote Control Unit when
the UPA-P100MD is on.
PC
TV OUT
AV
S-VIDEO
12
