Overview

Digital Capture Unit
Overview
RM-P110 Remote
Control Unit
A
B
C
D
F1
F2
F3
F4
ESC
E
F
G
H
I
F5
F6
F7
F8
BS
J
K
L
M
N
1
2
3
O
P
Q
R
S
4
5
6
T
U
V
W
X
7
8
9
Y
Z
abc
ABC
0
SP
ENT
RM-P110
External Control Device
(not provided by Sony)

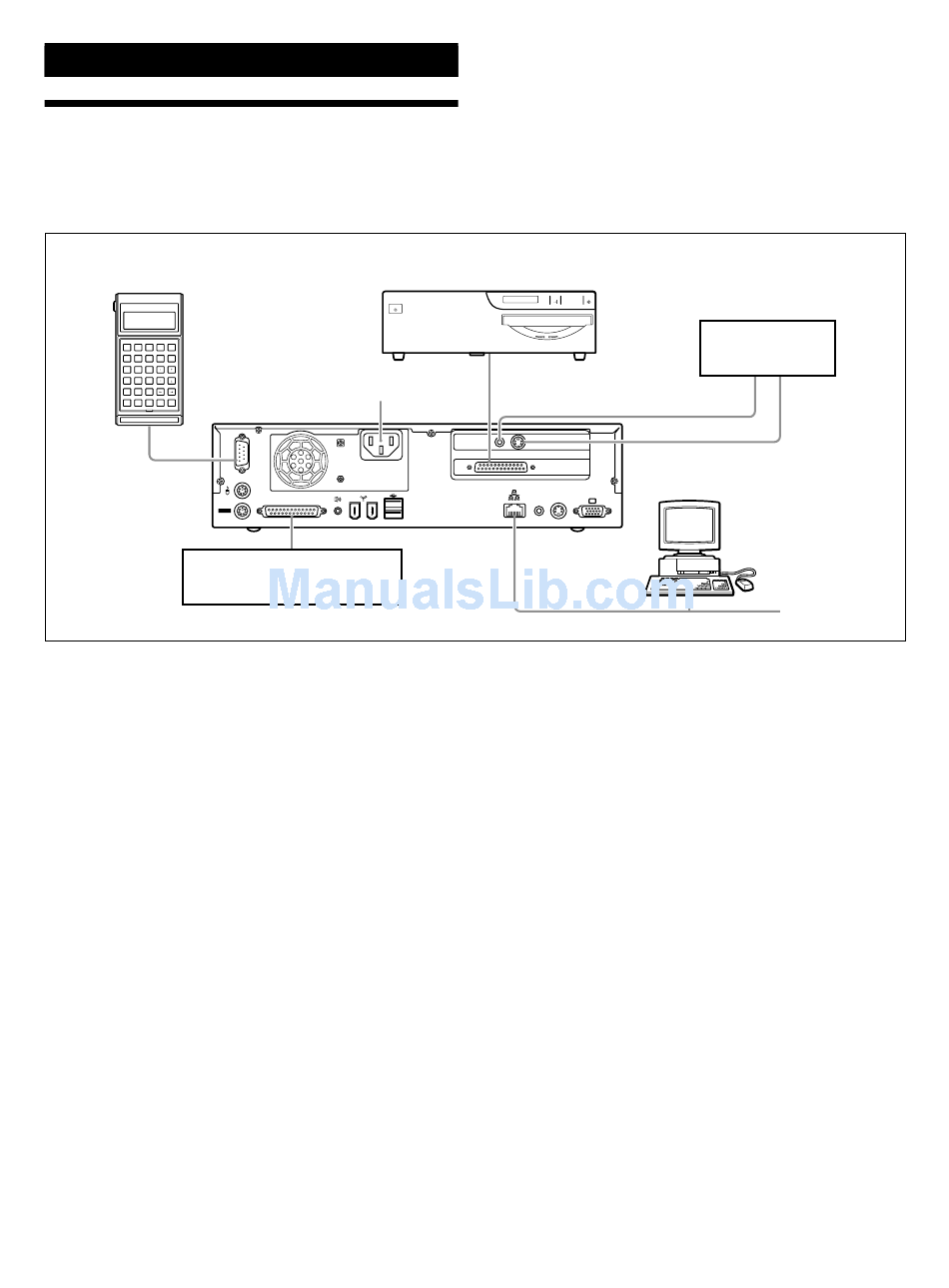

The illustration above presents the connections of the
UPA-P100MD. For explanations about the UPA-
P100MD connectors and rear panel, see "Rear Panel"
on page 10. For more about the RM-P110 Remote
Control Unit, see "Remote Control" on page 11 and
consult the Remote Control Unit User's Guide on page
31. For explanations about how to connect the UPA-
P100MD to a network, see "Connecting the Digital
Capture Unit to a Network" on page 14.
The Digital Capture Unit is used to record analog
images from video devices in JPEG and TIFF format.
As need arises, it is also possible to save the recorded
images on CD with the built-in CD-R drive or print the
images with a digital color printer (UP-D50, UP-
D70XR). Furthermore, if the unit is connected to a
network, users can preview the images on the unit's
hard disk using an Internet browser.
UP-D50 or UP-D70XR
Digital Color Printers
AC Power Inlet
PC
TV OUT
AV
S-VIDEO
Video Device
Network
(if applicable)
7
