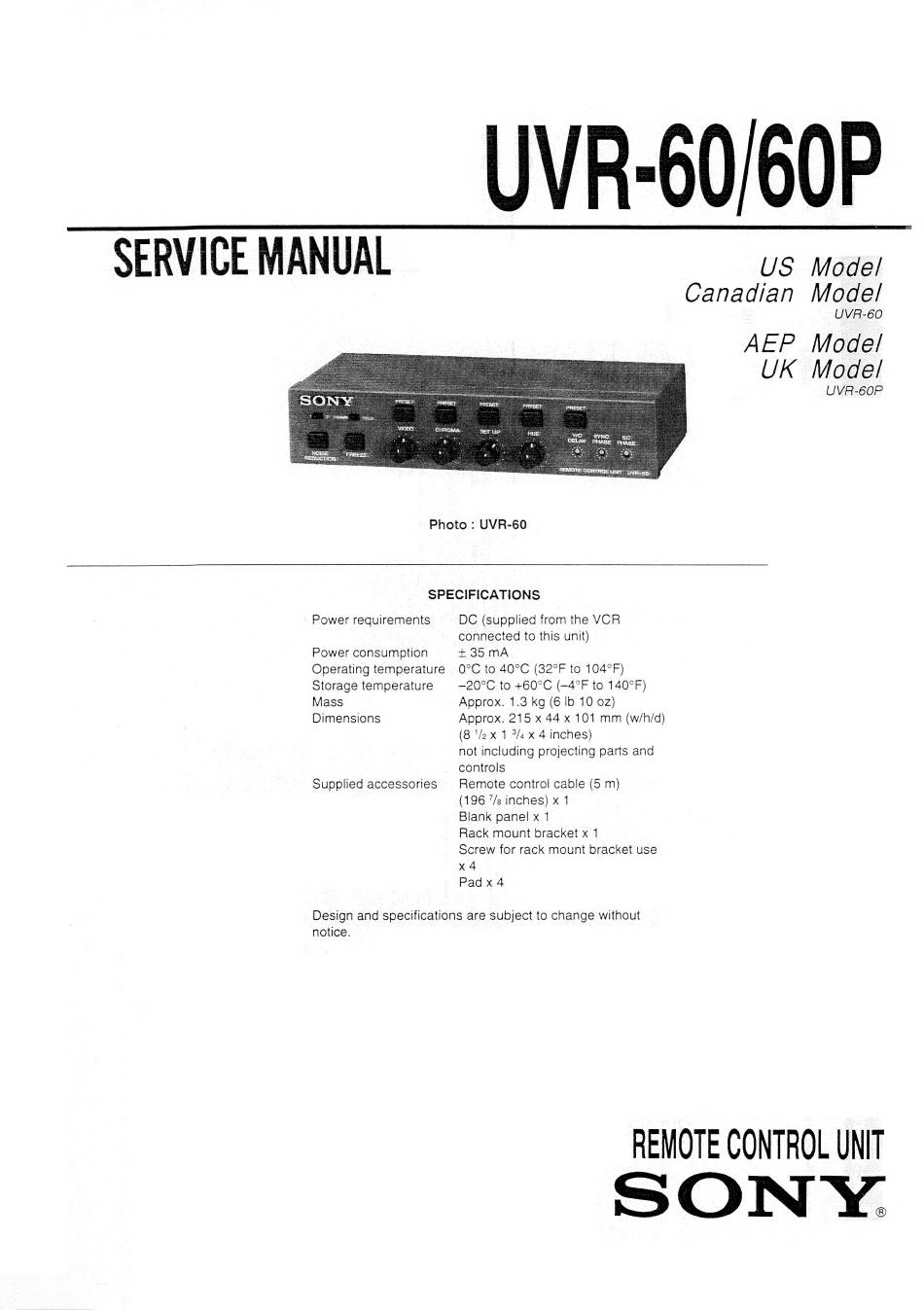

Sony UVR-60 Service Manual

Photo : UVR-60
SPECIFICATIONS
' Power requirements
Power consumption
Operating temperature
Storage temperature
Mass
Dimensions
Supplied accessories
DC (supplied from the VCR
connected to this unit)
+35 mA
O°C to 40°C (32°F to 104°F)
—20°C to +60°C (—4°F to 140°F)
Approx. 1.3 kg (6 Ib 10 oz)
Approx. 215 x 44 x 101 mm (w/h/d)
(8 '/2x 1 9/4 x 4 inches)
not including projecting parts and
controls
Remote control cable (5 m)
(196 '/s inches) x 1
Blank panel x 1
Rack mount bracket x 1
Screw for rack mount bracket use
x4
Pad x 4
_ Design and specifications are subject to change without
notice.
US Model
Canadian Model
AEP Model
UK Model
UVR-60P
