Sony PS3 INFIMOD Remote Control Manual

WARNING

Before using this product, carefully read this manual and retain it for future reference. Read also the instructions for the PLAYSTATION 3 system.

Do not touch material from a leaking battery.
- Contact of the material with the eyes or body can result in injury or burns to the eyes or skin. Even if foreign substances are not immediately visible, chemical changes in the material can result in injuries occurring at a later time.
If you do come in contact with material from a leaking battery, take the following actions:
- If the material gets into the eyes, do not rub. Flush the eyes with clean water and immediately seek medical attention.
- If the material comes into contact with the skin or clothes, rinse the affected area thoroughly with water. Consult your doctor if inflammation or soreness develops.

Precautions

Battery use

Never throw batteries into a fire.
Do not use batteries other than those specified, and always replace with the same type of battery. Do not mix old and new batteries.
Insert batteries with the plus and minus ends in the correct direction.
Remove batteries when they have reached the end of their life, or if the BD remote control is to be stored for an extended period of time.

Use and handling

Do not expose the BD remote control to high temperatures, high humidity or direct sunlight.
Do not allow liquid or small particles to get into the product.
Do not put heavy objects on the product.
Never disassemble or modify the product.
Do not throw or drop the product, or subject it to strong physical shock.
Do not place any rubber or vinyl materials on the product exterior for an extended period of time.
When cleaning the product, use a soft, dry cloth. Do not use solvents or other chemicals.

Preparing for use

Inserting the batteries

Remove the cover from the BD remote control rear and insert the supplied batteries. Set the batteries in the correct position.

Updating the PS3 system

PS3 system software version 1.30 or later is required to use the BD remote control. To check the system software version, from the PS3 system's home menu, select (Settings) > (System Settings) > "System Information".

You must update the system software if it is a version earlier than 1.30. Use any of the following methods to perform the update.

Network update

Download the update data directly to the PS3 system. From the system's home menu, select (Settings) > (System Update) > "Update via Internet".

Update using a PC

Use a PC to download the update data to compatible storage media.
For details, visit http://asia.playstation.com.

For other update methods, contact the PS3 service line at the number listed on your warranty card for assistance.

Registering the device with the PS3 system

Before using the BD remote control, you must register ("pair") the remote control with the PS3 system. This operation is performed only once when you are using the remote control for the first time.

Turn on the PS3 system.
From the system's home menu, select (Settings) > (Accessory Settings) > "Register Bluetooth Device", and then press the button.
Select the type of device to register.
Follow the on-screen instructions.

Hints

Only one BD remote control can be registered with the PS3 system.
If you register the BD remote control with another PS3 system, you will have to re-register if you want to use the remote control again with the first PS3 system.

Basic operations

Basic operation of the BD remote control
This manual explains button operations for Blu-ray Disc (BD) playback. The same operations can also be performed when playing DVD videos, videos saved on the hard disk drive or audio CDs, with the exception of some functions.

Notice
Some content may have preset playback conditions set by the content developer. In this case, some button operations of the remote control may not be available.

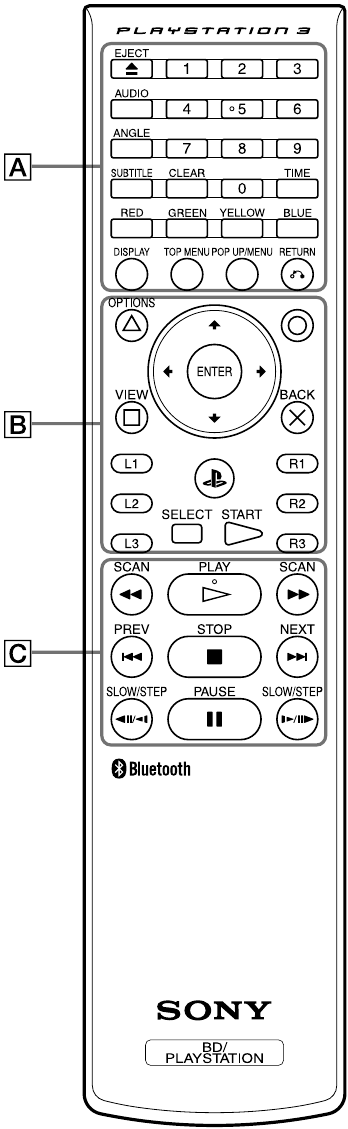

button operations (refer to diagram)
EJECT button	Eject the disc.
AUDIO button	Change audio on BDs with multiple audio tracks recorded.
ANGLE button	Change viewing angles on BDs with multiple angles recorded on the same scene.
SUBTITLE button	Change the language for subtitles on BDs with subtitles recorded.
CLEAR button	Clear entered numbers.
TIME button	View the elapsed time or remaining time of a title or chapter.
0-9 button	Enter numbers.
RED, GREEN, YELLOW, BLUE button	Perform functions assigned to each button. (Assigned functions vary depending on the content being played.)
DISPLAY button	View status information or other information on the content being played.
TOP MENU button	View the content's top menu.
POP UP/MENU button	View the content's pop-up menu.
RETURN button	Return to a specific point in the video.
button operations (refer to diagram)
/OPTIONS, /VIEW, /BACK, button	Perform the same operations as the SIXAXIS wireless controller for the PS3 system.
Directional buttons
(PS button)
L1, R1, L2, R2, L3, R3 button
SELECT, START button
ENTER button	Perform the same operation as the button on the SIXAXIS wireless controller for the PS3 system
button operations (refer to diagram)
PLAY button	Start playback.
STOP button	Stop playback.
PAUSE button	Stop playback temporarily.
SCAN, SCAN button	Fast forward or fast reverse playback. Playback speed changes each time you press the button.
PREV, NEXT button	Move to the previous or next chapter.
SLOW/STEP, SLOW/STEP button	Play content one frame at a time. If you press and hold down the button, content plays in slow motion.

Hint
Pressing any button on the BD remote control when the PS3 system is turned off (in standby mode) will turn on the system.

If the battery charge is low
When the battery charge is low, the remote control may not operate properly or the distance within which you can operate the remote control may become shorter. In this case, replace both batteries with new ones.

Specifications

Power source	Type AA batteries (2)
External dimensions	Approx. 51 × 25.5 × 219 mm / 2 × 1 × 8.6 in (w × h × d)
Operating temperature	5°C – 35°C / 41°F – 95°F

Design and specifications are subject to change without notice.

" " and "PLAYSTATION" are registered trademarks of Sony Computer Entertainment Inc. Also, "PS3" and "SIXAXIS" are trademarks of the same company.
"SONY" is a registered trademark, and " " is a trademark of Sony Corporation.

The Bluetooth word mark and logos are owned by the Bluetooth SIG, Inc. and any use of such marks by Sony Computer Entertainment Inc. is under license.
"Blu-ray Disc" is a trademark.
