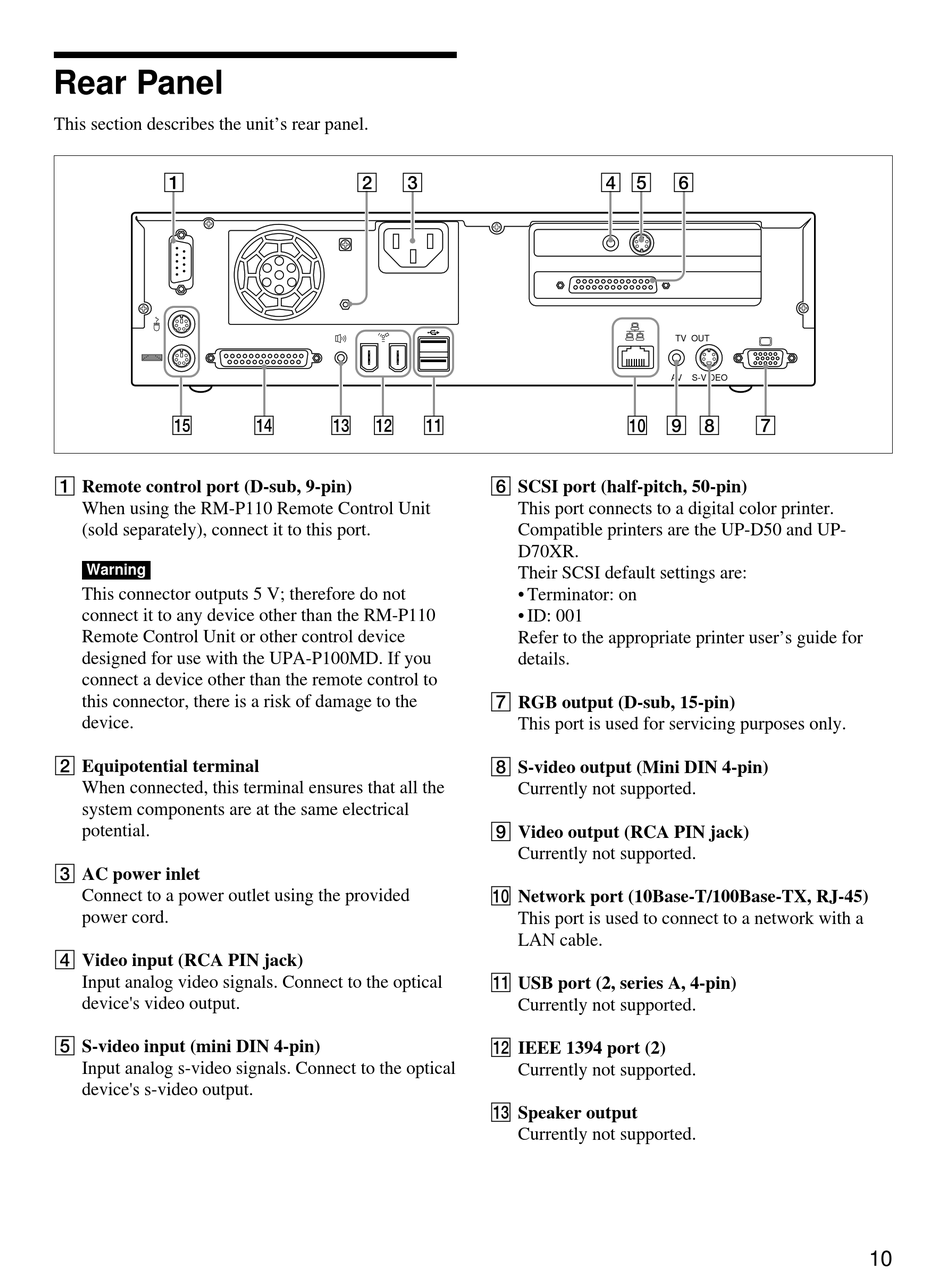

Rear Panel

This section describes the unit's rear panel.
1
qg
1 Remote control port (D-sub, 9-pin)
When using the RM-P110 Remote Control Unit
(sold separately), connect it to this port.
Warning
This connector outputs 5 V; therefore do not
connect it to any device other than the RM-P110
Remote Control Unit or other control device
designed for use with the UPA-P100MD. If you
connect a device other than the remote control to
this connector, there is a risk of damage to the
device.
2 Equipotential terminal
When connected, this terminal ensures that all the
system components are at the same electrical
potential.
3 AC power inlet
Connect to a power outlet using the provided
power cord.
4 Video input (RCA PIN jack)
Input analog video signals. Connect to the optical
device's video output.
5 S-video input (mini DIN 4-pin)
Input analog s-video signals. Connect to the optical
device's s-video output.
2
3
qf
qd
qs
qa
4 5
0
9
6 SCSI port (half-pitch, 50-pin)
This port connects to a digital color printer.
Compatible printers are the UP-D50 and UP-
D70XR.
Their SCSI default settings are:
• Terminator: on
• ID: 001
Refer to the appropriate printer user's guide for
details.
7 RGB output (D-sub, 15-pin)
This port is used for servicing purposes only.
8 S-video output (Mini DIN 4-pin)
Currently not supported.
9 Video output (RCA PIN jack)
Currently not supported.
0 Network port (10Base-T/100Base-TX, RJ-45)
This port is used to connect to a network with a
LAN cable.
qa USB port (2, series A, 4-pin)
Currently not supported.
qs IEEE 1394 port (2)
Currently not supported.
qd Speaker output
Currently not supported.
6
TV OUT
AV
S-VIDEO
8
7
