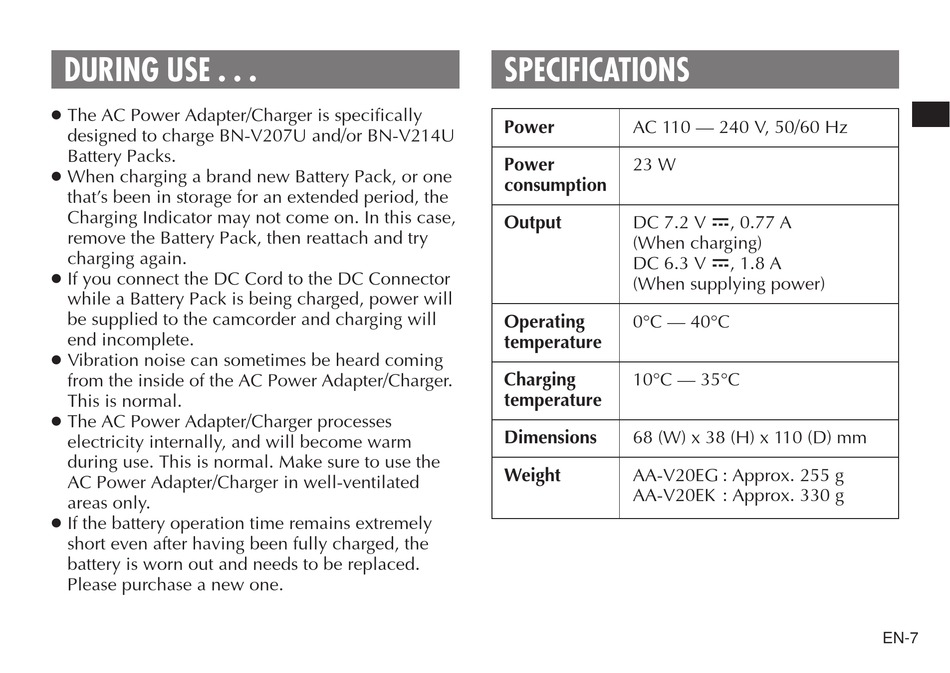

DURING USE . . .
The AC Power Adapter/Charger is specifically
designed to charge BN-V207U and/or BN-V214U
Battery Packs.
When charging a brand new Battery Pack, or one
that's been in storage for an extended period, the
Charging Indicator may not come on. In this case,
remove the Battery Pack, then reattach and try
charging again.
If you connect the DC Cord to the DC Connector
while a Battery Pack is being charged, power will
be supplied to the camcorder and charging will
end incomplete.
Vibration noise can sometimes be heard coming
from the inside of the AC Power Adapter/Charger.
This is normal.
The AC Power Adapter/Charger processes
electricity internally, and will become warm
during use. This is normal. Make sure to use the
AC Power Adapter/Charger in well-ventilated
areas only.
If the battery operation time remains extremely
short even after having been fully charged, the
battery is worn out and needs to be replaced.
Please purchase a new one.

SPECIFICATIONS

Power
AC 110 — 240 V, 50/60 Hz
Power
23 W
consumption
Output
DC 7.2 V }, 0.77 A
(When charging)
DC 6.3 V }, 1.8 A
(When supplying power)
Operating
0°C — 40°C
temperature
Charging
10°C — 35°C
temperature
Dimensions
68 (W) x 38 (H) x 110 (D) mm
Weight
AA-V20EG : Approx. 255 g
AA-V20EK : Approx. 330 g
EN-7
