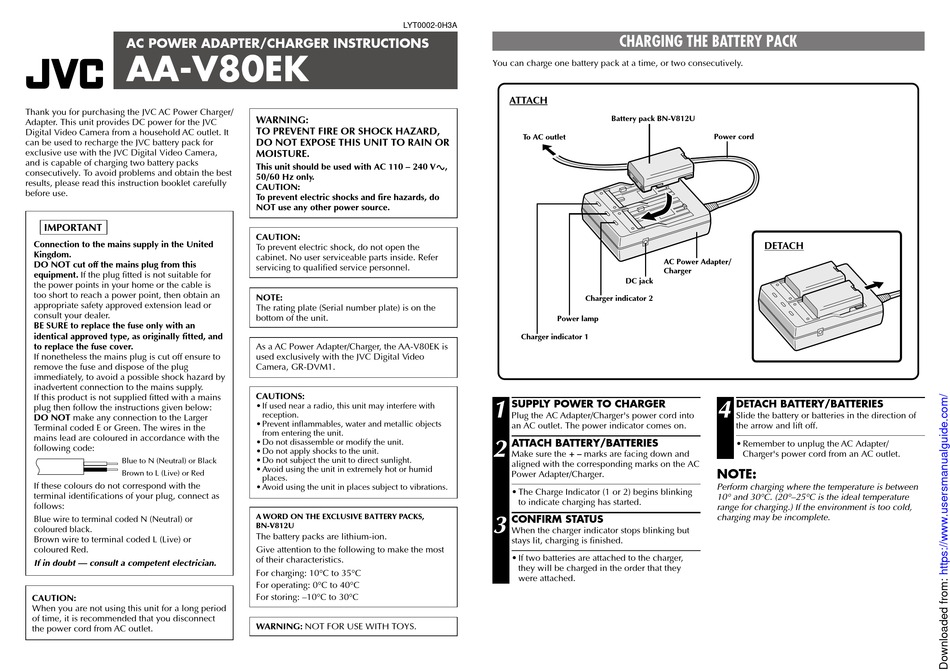

JVC AA-V80EK Instructions

AC POWER ADAPTER/CHARGER INSTRUCTIONS
AA-V80EK
Thank you for purchasing the JVC AC Power Charger/
Adapter. This unit provides DC power for the JVC
Digital Video Camera from a household AC outlet. It
can be used to recharge the JVC battery pack for
exclusive use with the JVC Digital Video Camera,
and is capable of charging two battery packs
consecutively. To avoid problems and obtain the best
results, please read this instruction booklet carefully
before use.
IMPORTANT
Connection to the mains supply in the United
Kingdom.
DO NOT cut off the mains plug from this
equipment. If the plug fitted is not suitable for
the power points in your home or the cable is
too short to reach a power point, then obtain an
appropriate safety approved extension lead or
consult your dealer.
BE SURE to replace the fuse only with an
identical approved type, as originally fitted, and
to replace the fuse cover.
If nonetheless the mains plug is cut off ensure to
remove the fuse and dispose of the plug
immediately, to avoid a possible shock hazard by
inadvertent connection to the mains supply.
If this product is not supplied fitted with a mains
plug then follow the instructions given below:
DO NOT make any connection to the Larger
Terminal coded E or Green. The wires in the
mains lead are coloured in accordance with the
following code:
Blue to N (Neutral) or Black
Brown to L (Live) or Red
If these colours do not correspond with the
terminal identifications of your plug, connect as
follows:
Blue wire to terminal coded N (Neutral) or
coloured black.
Brown wire to terminal coded L (Live) or
coloured Red.
If in doubt — consult a competent electrician.
CAUTION:
When you are not using this unit for a long period
of time, it is recommended that you disconnect
the power cord from AC outlet.
LYT0002-0H3A
WARNING:
TO PREVENT FIRE OR SHOCK HAZARD,
DO NOT EXPOSE THIS UNIT TO RAIN OR
MOISTURE.
This unit should be used with AC 110 – 240 V` ` ` ,
` `
50/60 Hz only.
CAUTION:
To prevent electric shocks and fire hazards, do
NOT use any other power source.
CAUTION:
To prevent electric shock, do not open the
cabinet. No user serviceable parts inside. Refer
servicing to qualified service personnel.
NOTE:
The rating plate (Serial number plate) is on the
bottom of the unit.
As a AC Power Adapter/Charger, the AA-V80EK is
used exclusively with the JVC Digital Video
Camera, GR-DVM1.
CAUTIONS:
• If used near a radio, this unit may interfere with
reception.
• Prevent inflammables, water and metallic objects
from entering the unit.
• Do not disassemble or modify the unit.
• Do not apply shocks to the unit.
• Do not subject the unit to direct sunlight.
• Avoid using the unit in extremely hot or humid
places.
• Avoid using the unit in places subject to vibrations.
A WORD ON THE EXCLUSIVE BATTERY PACKS,
BN-V812U
The battery packs are lithium-ion.
Give attention to the following to make the most
of their characteristics.
For charging: 10°C to 35°C
For operating: 0°C to 40°C
For storing: –10°C to 30°C
WARNING: NOT FOR USE WITH TOYS.
CHARGING THE BATTERY PACK
You can charge one battery pack at a time, or two consecutively.
ATTACH
Battery pack BN-V812U
To AC outlet
AC Power Adapter/
Charger
DC jack
Charger indicator 2
Power lamp
Charger indicator 1
1
SUPPLY POWER TO CHARGER
Plug the AC Adapter/Charger's power cord into
an AC outlet. The power indicator comes on.
2
ATTACH BATTERY/BATTERIES
Make sure the + – marks are facing down and
aligned with the corresponding marks on the AC
Power Adapter/Charger.
• The Charge Indicator (1 or 2) begins blinking
to indicate charging has started.
3
CONFIRM STATUS
When the charger indicator stops blinking but
stays lit, charging is finished.
• If two batteries are attached to the charger,
they will be charged in the order that they
were attached.
Power cord
DETACH
4
DETACH BATTERY/BATTERIES
Slide the battery or batteries in the direction of
the arrow and lift off.
• Remember to unplug the AC Adapter/
Charger's power cord from an AC outlet.
NOTE:
Perform charging where the temperature is between
10° and 30°C. (20°–25°C is the ideal temperature
range for charging.) If the environment is too cold,
charging may be incomplete.
