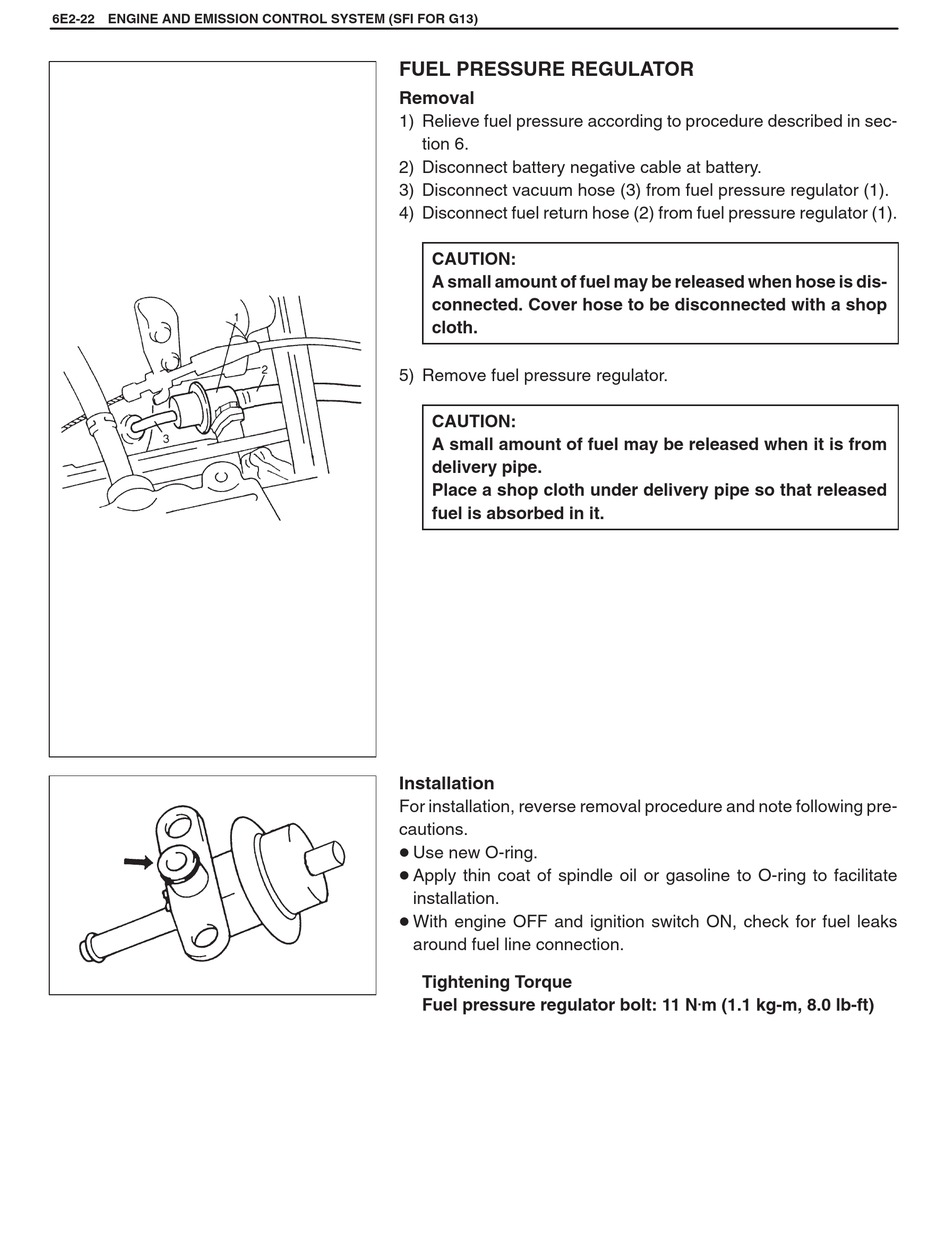

6E2-22 ENGINE AND EMISSION CONTROL SYSTEM (SFI FOR G13)

FUEL PRESSURE REGULATOR

Removal
1) Relieve fuel pressure according to procedure described in sec-
tion 6.
2) Disconnect battery negative cable at battery.
3) Disconnect vacuum hose (3) from fuel pressure regulator (1).
4) Disconnect fuel return hose (2) from fuel pressure regulator (1).
CAUTION:
A small amount of fuel may be released when hose is dis-
connected. Cover hose to be disconnected with a shop
cloth.
5) Remove fuel pressure regulator.
CAUTION:
A small amount of fuel may be released when it is from
delivery pipe.
Place a shop cloth under delivery pipe so that released
fuel is absorbed in it.
Installation
For installation, reverse removal procedure and note following pre-
cautions.
D Use new O-ring.
D Apply thin coat of spindle oil or gasoline to O-ring to facilitate
installation.
D With engine OFF and ignition switch ON, check for fuel leaks
around fuel line connection.
Tightening Torque
Fuel pressure regulator bolt: 11 N
.
m (1.1 kg-m, 8.0 lb-ft)
