ENGINE MECHANICAL (G13B, 1-CAM 16-VALVES ENGINE) 6A1-29

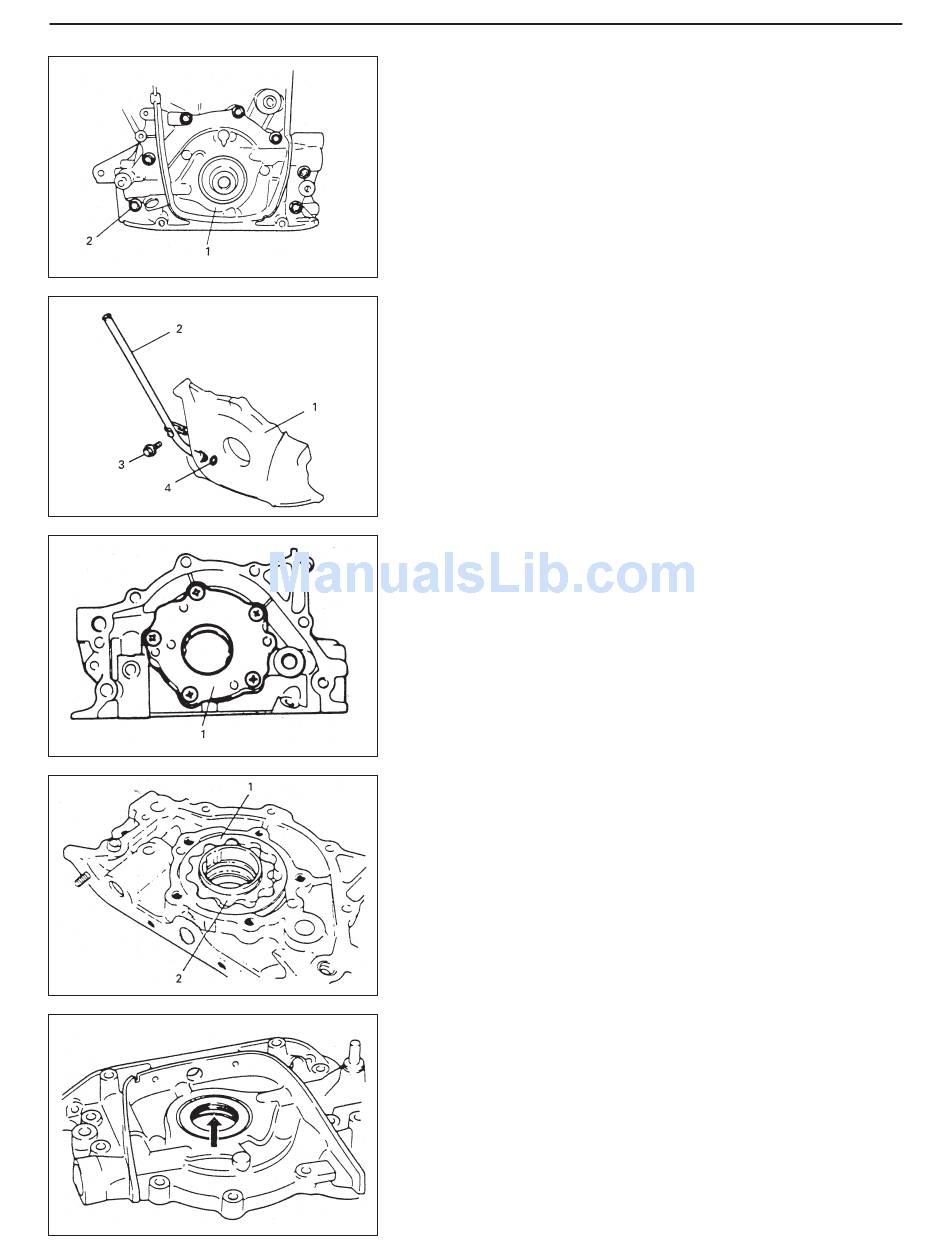

7) Remove oil pump assembly (1) after removing bolts (2).
DISASSEMBLY
4. Guide seal
1) Remove oil level gauge guide bolt (3) and pull out guide (2) from
oil pump (1).
2) Remove rotor plate (1).
3) Remove outer rotor (1) and inner rotor (2).
INSPECTION
D Check oil seal lip for fault or other damage. Replace as necessary.
