6A1-30 ENGINE MECHANICAL (G13B, 1-CAM 16-VALVES ENGINE)
NOTE:

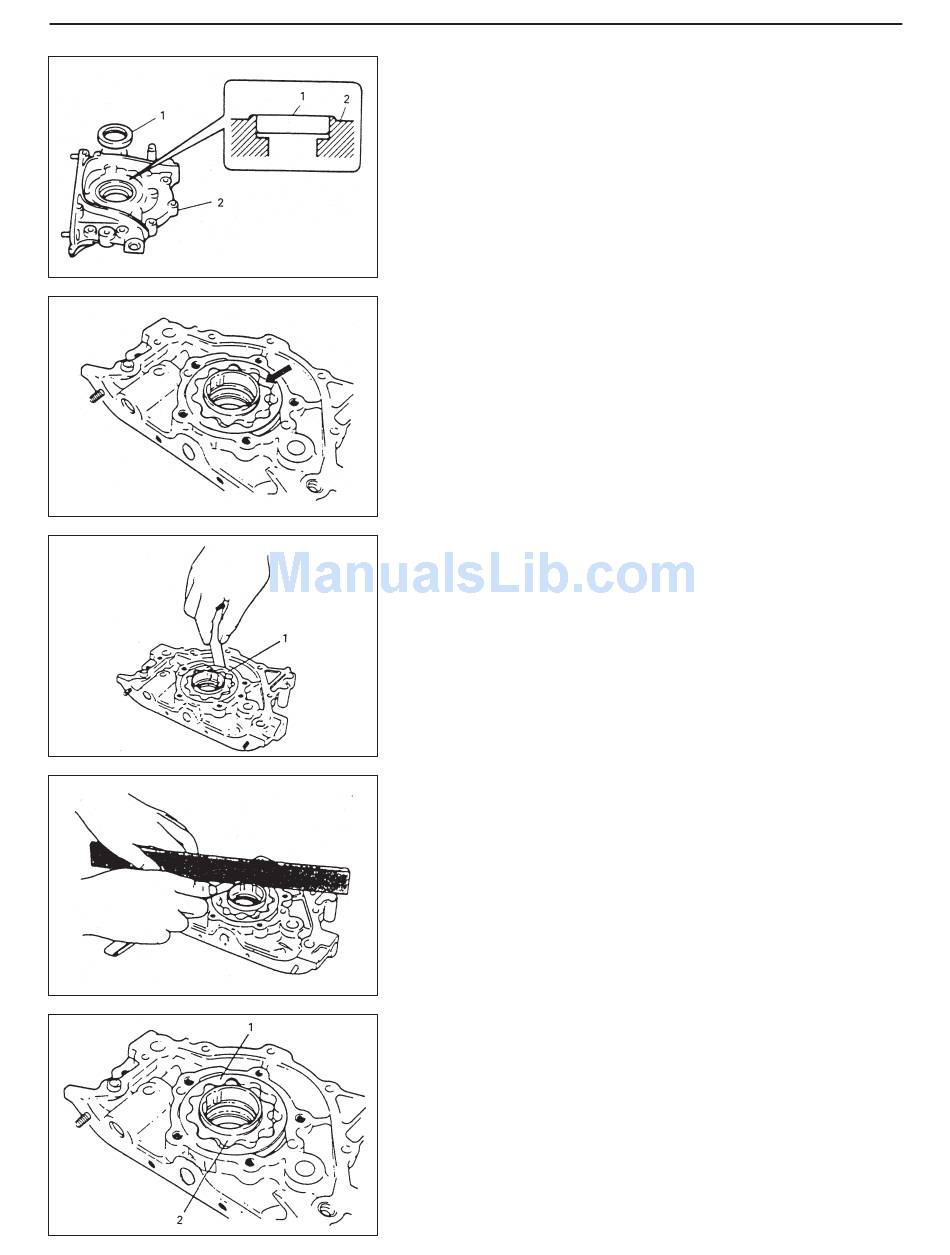

When installing oil seal (1), press-fit it till its end face is flush
with oil pump case (2) end face.
D Check outer and inner rotors, rotor plate, and oil pump case for
excessive wear or damage.
MEASUREMENT
D Radial clearance
Check radial clearance between outer rotor (1) and case, using
thickness gauge.
If clearance exceeds its limit, replace outer rotor or case.
Limit on radial clearance between outer rotor and case:
0.200 mm (0.079 in.)
D Side clearance
Using straight edge and thickness gauge, measure side clear-
ance.
Limit on side clearance: 0.10 mm (0.0039 in.)
ASSEMBLY
1) Wash, clean and then dry all disassembled parts.
2) Apply thin coat of engine oil to inner (2) and outer rotors (1), oil
seal lip portion, and inside surfaces of oil pump case and plate.
3) Install outer and inner rotors to pump case.
