Simrad AP50 Autopilot
34

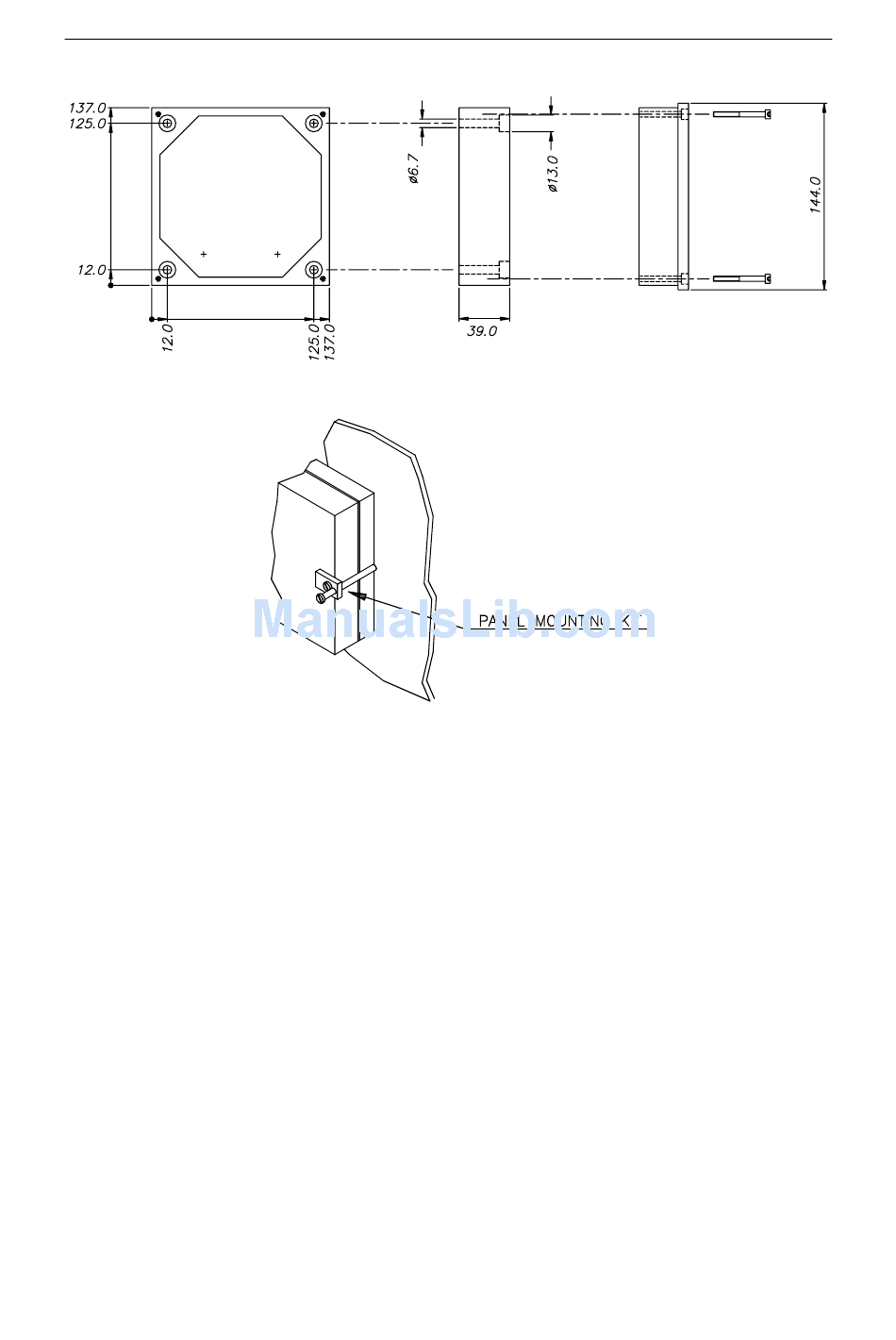

Figure 2-29 S9 Steering Lever, bulkhead mounting
Figure 2-30 S9 Steering Lever, panel mounting

Connection

If connected according to Figure 2-31, S9 can be used for NFU
steering through J50 Junction Unit when the autopilot is in
STBY mode and for course change in AUTO mode.
If connected according to Figure 2-32 or Figure 2-33, S9 will
disengage the autopilot and operate the solenoids by direct
override. When the S9 handle is pushed in, the autopilot will
resume in AUTO mode on the present heading.
20222469 / B
