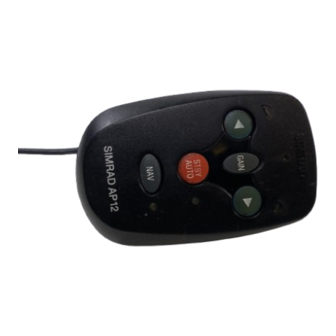

- Page 1 AP12H & AP14H POWER PILOT SERVICE MANUAL...
-
Page 2: Table Of Contents
No part of this publication may be reproduced, stored in a retrieval system or transmitted in any form, electronic or otherwise without prior permission from Simrad Margate Ltd. No liability can be accepted for any inaccuracies or omissions in the publication, although... -
Page 3: Introduction
AP12H & AP14H Power Pilot Section 1 Introduction... -
Page 4: Electronic Pcbs
AP12H – is suitable for hydraulically steered power boats with a ram capacity of up to 250cc (15 in AP14H –... -
Page 5: Operation
AP12H & AP14H Power Pilot Section 2 Operation... - Page 6 SIMRAD Issue 1.2 18/07/03 CALIBRATING AND OPERATING THE AP12H AND AP14H This Service Manual only contains calibration and operational information for those features of the autopilots which are not normally available to the end user. For details of normal calibration and...
-
Page 7: Assembly Instructions
AP12H & AP14H Power Pilot Section 3 Assembly Instructions... - Page 8 SIMRAD Issue 1.2 18/07/03 ASSEMBLY INSTRUCTIONS General Assembly : SRP12 Pump Unit The pump unit is provided as a complete assembly and is not recommended for piece part replacement. General Assembly : SLF12 Linear Feedback Unit The linear feedback unit is provided as a complete assembly and is not recommended for piece part replacement.
-
Page 9: Mechanical Assembly Drawings
SIMRAD Issue 1.2 18/07/03 AP12H & AP14H Power Pilot Section 4 Mechanical Assembly Drawings... - Page 10 SIMRAD Issue 1.2 18/07/03 MECHANICAL ASSEMBLY DRAWINGS General Assembly : Course Programmer SCP12 General Assembly : Control Unit SFC12 General Assembly : Junction Box SJB12 General Assembly : Heading Sender SHS12 General Assembly : Remote Control E03709...
-
Page 16: Circuit Descriptions
AP12H & AP14H Power Pilot Section 5 Circuit Descriptions... - Page 17 SIMRAD Issue 1.2 18/07/03 CIRCUIT DESCRIPTIONS SCP12 PCB Assembly Introduction. The SCP12 is the heart of the Powerpilot and all other units are linked to it. It decodes the information from the heading sender and calculates the heading, acts upon user commands sent from the control unit, reads the rudder position from the linear feedback unit and controls the drive unit.
- Page 18 SIMRAD Issue 1.2 18/07/03 Active Braking. To stop the motor of the pilot drive unit “Active Braking” is used. A short circuit is applied across the motor , by IC4b,c,d and IC5b, to provide a back EMF to oppose the motion of the motor.
- Page 19 SIMRAD Issue 1.2 18/07/03 Switches. Microprocessor ports P1.0 – P1.4 are connected to switches S1 – S5 and are normally high. When a switch is pressed the relevant line is pulled low and the microprocessor actions a specific task. Bus Circuitry. The Powerpilot system is interconnected via a single line Rx / Tx data bus. The bus control is formed by IC3 and its associated components.
- Page 20 SIMRAD Issue 1.2 18/07/03 Supply and Regulation. The SLF12 is designed to work from a 12 V source. The input terminals are filtered for EMC purposes by L1, L2 and C1. Protection against incorrect polarity connection is provided by D1 with protection against over-voltage spikes provided by ZD1.
-
Page 21: Circuit Diagrams
AP12H & AP14H Power Pilot Section 6 Circuit Diagrams... -
Page 22: Circuit Schematics
SIMRAD Issue 1.2 18/07/03 CIRCUIT DIAGRAMS Circuit Schematics SCP12 PCB Assembly E02879 SFC12 PCB Assembly E02882 SHS12 PCB Assembly E02777 SLF12 PCB Assembly E03069 SHC14 PCB Assembly E02552 SJB12 PCB Assembly E02876 Component Lists and Layouts SCP12 PCB Assembly Detail... -
Page 35: Programming And Configuration
AP12H & AP14H Power Pilot Section 7 Programming and Configuration... - Page 36 SIMRAD Issue 1.2 18/07/03 PROGRAMMING AND CONFIGURATION This Service Manual only contains programming and configuration information for those features of the autopilot which are not normally available to the end user. For details of normal programming and configuration please refer to the appropriate user manual.
-
Page 37: Fault Finding
AP12H & AP14H Power Pilot Section 8 Fault Finding... -
Page 38: Common User Faults
SIMRAD Issue 1.2 18/07/03 FAULT FINDING Common User Faults. Common user faults are included in the LED Diagnostics guide included in the user manual. Common Technical Faults. Symptom Pilot drives in 1 direction only, or no drive at all Probable Cause Blown drive FETs in SCP12 PCB - Commonly due to short circuit on data lines from another unit in the system –... -
Page 39: Spare Parts Detail
AP12H & AP14H Power Pilot Section 9 Spare Parts Detail... - Page 40 SIMRAD Issue 1.2 18/07/03 SPARE PARTS DETAIL Spares Packs APPK1 SPR SCP12 TOP CASE PK APPK2 SPR SCP12 BOTTOM CASE PK APPK3 SPR SCP12 PCB ASSEMBLY APPK4 SPR SCP12 DRIVE FET KIT APPK5 SPR SFC12 BOTTOM CASE AND CABLE ASSEMBLY...
-
Page 41: Technical Notes
AP12H & AP14H Power Pilot Section 10 Technical Notes... - Page 42 SIMRAD Issue 1.2 18/07/03 TECHNICAL NOTES None yet issued.
