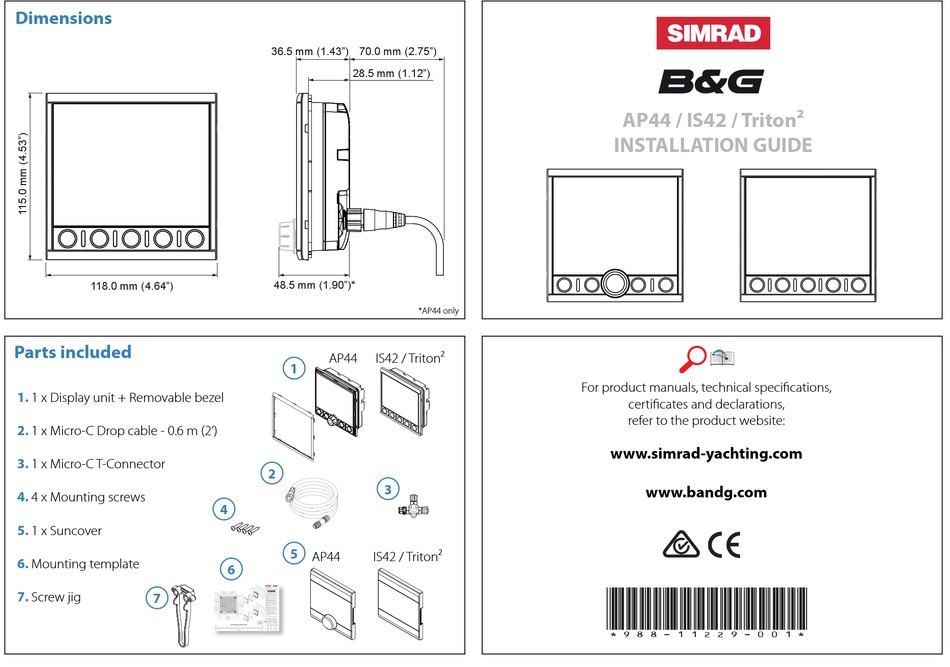

Dimensions
118.0 mm (4.64")
Parts included
1.
1 x Display unit + Removable bezel
2.
1 x Micro-C Drop cable - 0.6 m (2')
3.
1 x Micro-C T-Connector
4.
4 x Mounting screws
5.
1 x Suncover
6.
Mounting template
7.
Screw jig
7
36.5 mm (1.43")
70.0 mm (2.75")
28.5 mm (1.12")
48.5 mm (1.90")*
AP44
IS42 / Triton²
1
2
3
4
5
AP44
IS42 / Triton²
6
*AP44 only
For product manuals, technical specifications,
AP44 / IS42 / Triton²
INSTALLATION GUIDE
certificates and declarations,
refer to the product website:
www.simrad-yachting.com
www.bandg.com
*988-11229-001*
