Simrad AP50 Installation Manual page 113

Simrad AP50 Autopilot
Voltage output: ............................................................................Operating voltage/2 ±9V
Frequency output: ................................................................. 3400Hz (midships reference)
Capacity: .........................................................................................5 indicators in parallel
Rudder angle: ............................................................ ±45 ° (Changeable to 60, 70 or 90°)
Limit switches: ..................................... Two sets, individual adjustable from ±5 to ±160°
104
160 (6.3")
150 (5.9")
185 (7.3")

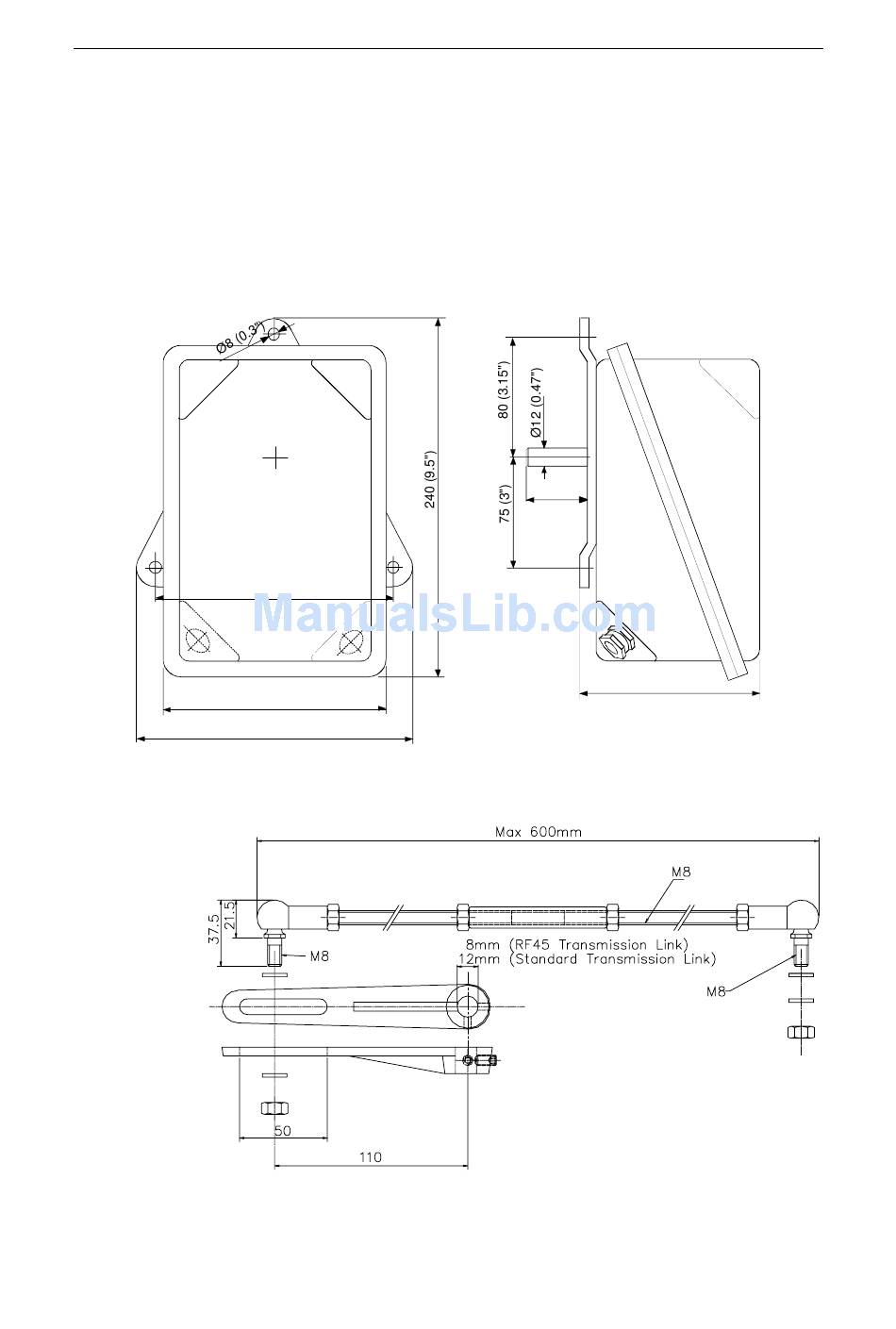

Figure 6-9 RF14XU Rudder Feedback Unit
RF Standard Transmission Link - dimensions
Port: +20Hz/degree,
40 (1.6")
Dimensions
Figure 6-10
Stbd: –20Hz/degree
120 (4.8")
