Cd100A Course Detector; Cd109 Course Detector - Simrad AP50 Installation Manual

Cable:.................................................................15 m (49 ft.) single twisted pair, shielded
Automatic Performance:
Calibration: ............................................. Automatically activated by control head
Repeatability: .................................................................................................± 0.5°
Accuracy:....... ± 1,0° after calibration (not including errors from course detector)

6.7 CD100A Course Detector

Dimensions: ................................................................................................. See Figure 6-6
Weight: .............................................................................0.3 kg (0.7 lbs.) including cable
Environmental Protection:........................................................................................... IP56
Temperature range:
Operation: .............................................................. –25 to +55°C (–13 to + 130°F)
Storage: ................................................................... –30 to +70°C (–22 to +158°F)
Mounting: ............................................Attached to compass by screw or by tripod holder
Cable length:.........................................................................7 m (23 ft.), no plug included

6.8 CD109 Course Detector

Dimensions: ................................................................................................. See Figure 6-6
Weight: .............................................................................0.3 kg (0.7 lbs.) including cable
Environmental Protection:........................................................................................... IP56
Temperature range:
Operation: .............................................................. –25 to +55°C (–13 to + 130°F)
Storage: ................................................................... –30 to +70°C (–22 to +158°F)
Mounting: ............................................Attached to compass by screw or by tripod holder
Cable length:..............................................................................1 m (3 ft.) with AMP plug
20222469 / B
35 (1.4")

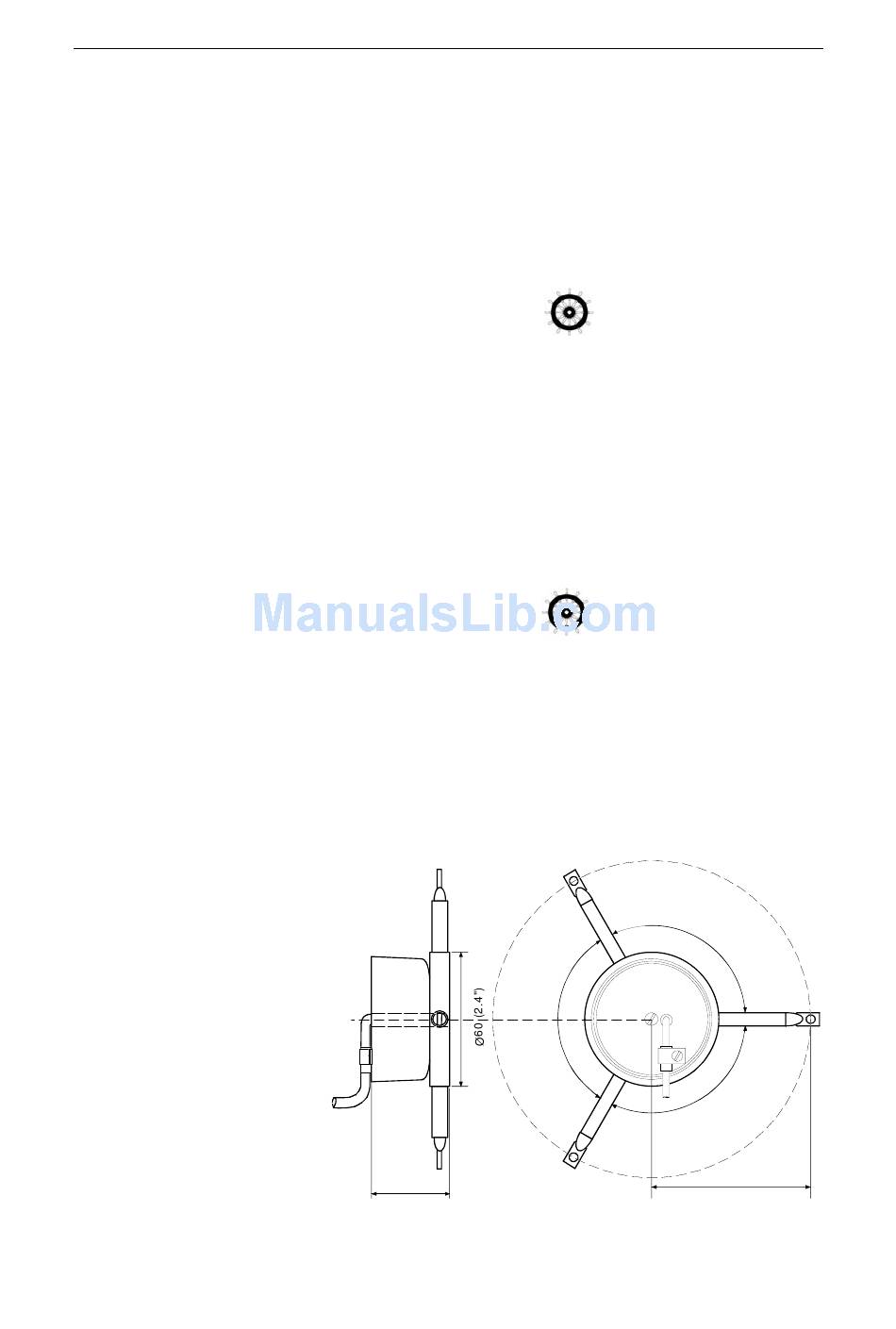

Figure 6-6 CD100A/CD109 Course Detector Dimensions
Technical Specifications
120°
120°
min/max. 80-100mm (3.2-4.3")
120°
101
