Simrad AP50 Autopilot

6.2 AP50 Control Unit

Dimensions: ................................................................................................. See Figure 6-1
Weight: ...................................................................................................... 0.9 kg (2.0 lbs.)
Material:........................................................................................Epoxy coated aluminum
Supply:...................................................................... 12-32 VDC –10%/+30% via Robnet
Power consumption: .....................................................................................................3 W
Environmental Protection:......................................................IP56 (when panel-mounted)
Safe distance to compass: ........................................................................... 0.35 m (1.0 ft.)
Color: ......................................................................................................................... Black
Temperature:
Operating: ............................................................... –25 to +55°C (–13 to +130°F)
Storage: ................................................................... –30 to +70°C (–22 to +158°F)
Display:
Type: ........................................................................................Backlit LCD matrix
Resolution:.................................................................................... 160 x 128 pixels
Illumination: ..................................................................................Adjustable in 10 grades
Mounting: .......................................................... Panel mount or bracket mount (optional)
Cable:................................................ Robnet cable 15 m (49 ft.) with one male connector
96

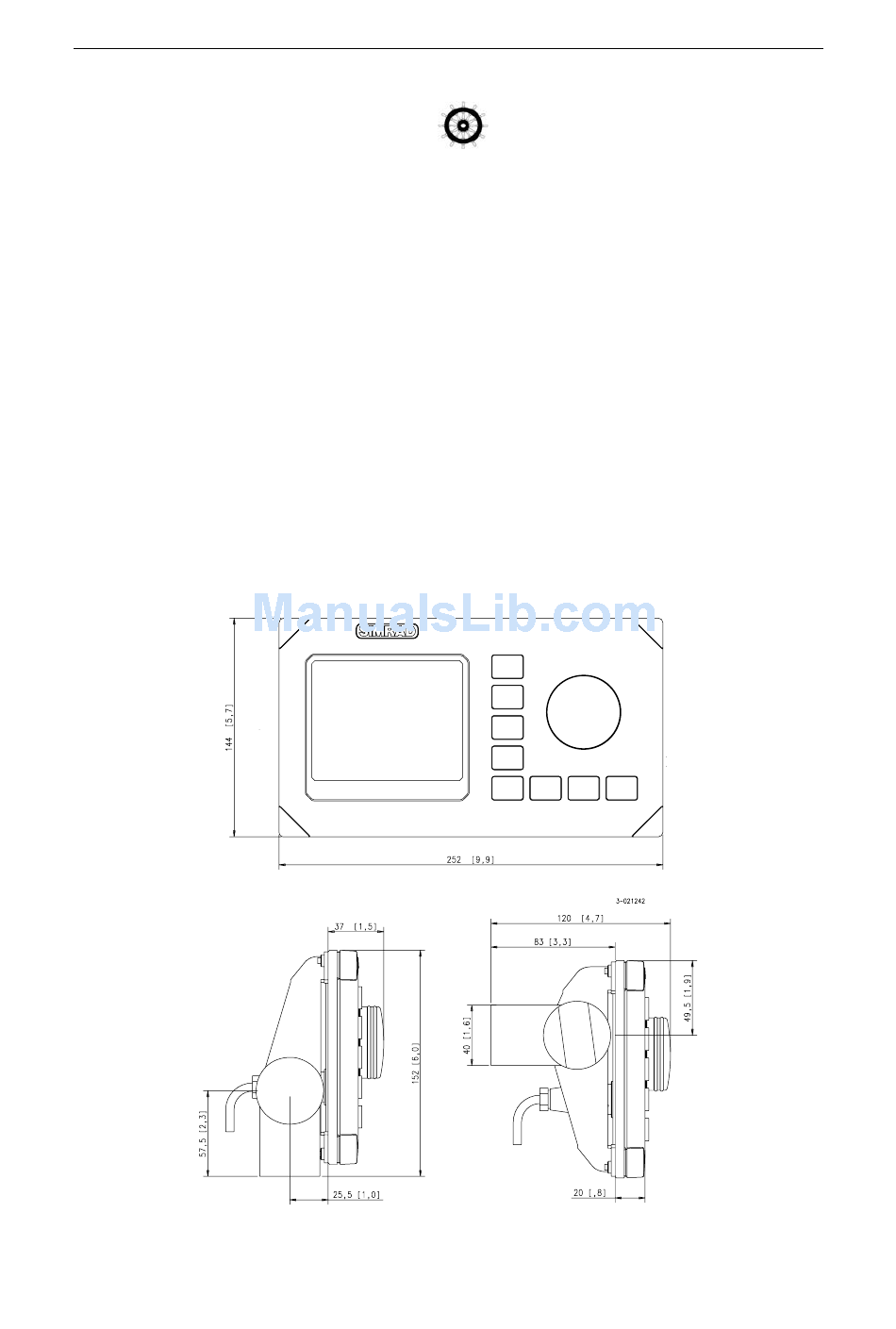

Figure 6-1 AP50 Control Unit Dimensions
20222469 / B
