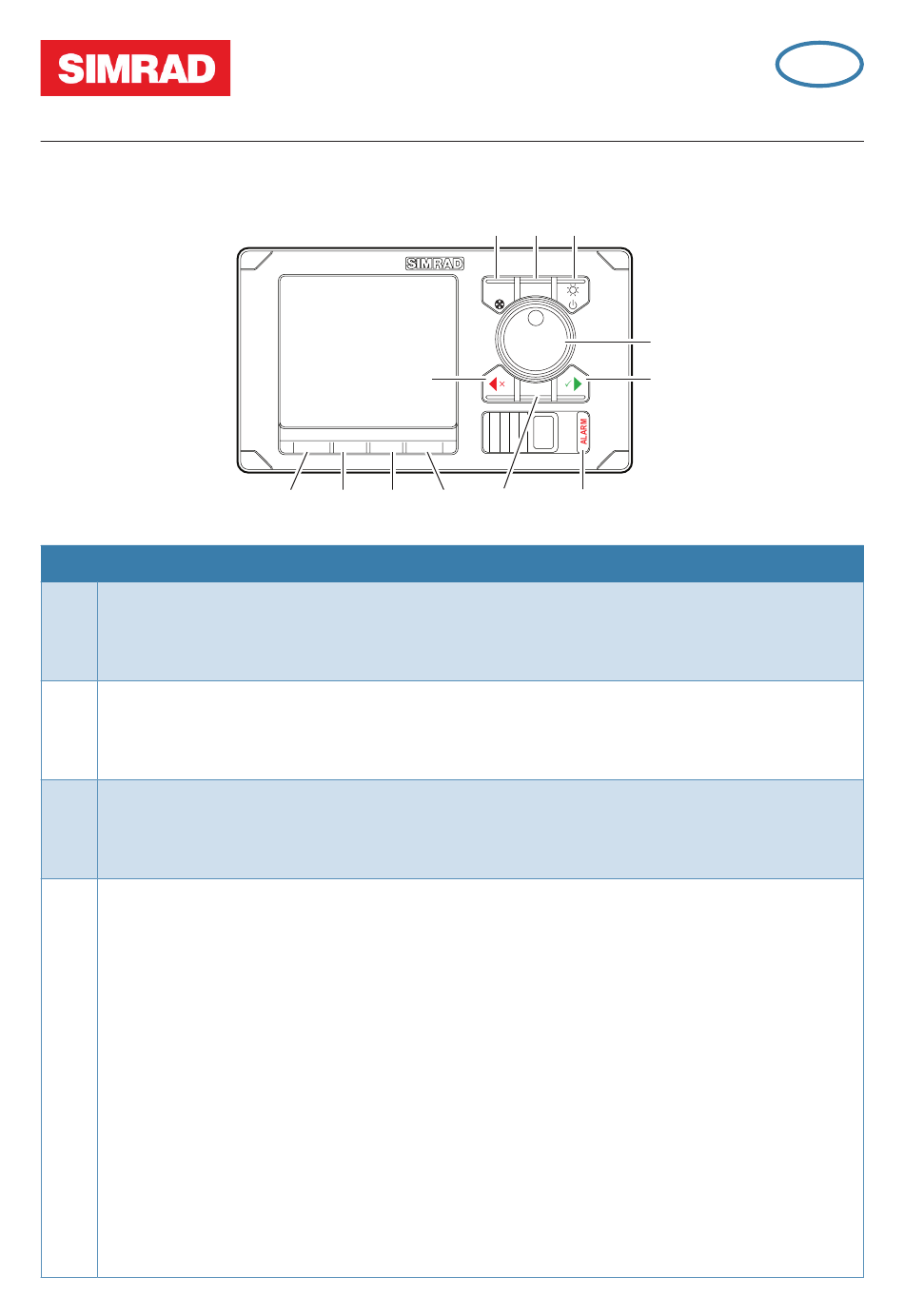

The front panel
Description
A
Command/Thruster key
•
Press to take/request command
•
Press and hold to activate/deactivate available thrusters
B
MENU key
•
Press once to display the Quick menu
•
Press twice to show the Settings menu
C
Power/Brilliance key
•
Press to display the Display setup dialog
•
Press and hold to turn the unit to sleep mode
D
Rotary knob
Menu and dialog operation:
•
turn to move up and down in menus and dialogs
•
turn to adjust a value
•
press to select a menu option and to enter the next menu level
In Standby and NFU mode:
•
press and hold to activate Follow up (FU) mode
In FU mode:
•
turn to set the rudder angle
In automatic modes:
•
turn to change the set heading/set course, press to re-activate automatic
mode with current heading/course as reference
AP70 MK2
Quick Start Guide
F
STBY
AUTO
TRACK
WORK
G
H
I
A
B
C
CMD
MENU
TURN
J
K
L
AP70 MK2 Quick Start Guide
EN
D
E
|
1
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Simrad SIM00014958001
Summary of Contents for Simrad SIM00014958001
- Page 1 AP70 MK2 Quick Start Guide The front panel MENU TURN STBY AUTO TRACK WORK Description Command/Thruster key • Press to take/request command • Press and hold to activate/deactivate available thrusters MENU key • Press once to display the Quick menu •...
- Page 2 Description Starboard (confirm) key Menu and dialog operation: • press to confirm/enter next menu level In Standby mode: • press to activate NFU mode In automatic modes: • press to change set heading/set course to starboard Port (cancel) key Menu and dialog operation: •...
- Page 3 The screen Heading repeater Status icons Mode info panel Mode indication Work profile Rudder bar Rudder command Icon Description Icon available if a thruster is installed. The icon will be shaded when the truster is deactivated for steering Active alerts. Red icon for alarms, orange for warnings, yellow for cautions Locked control unit Picture freeze indicator.
- Page 4 Autopilot modes Rotary knob PORT/ Mode Activate Mode display STBD Turn Press keys Press and Switch hold to Standby to NFU STBY No action switch to mode FU mode Press PORT/ Press and Give STBD keys in hold to No action rudder STBY or FU switch to...
- Page 5 Work profiles Show Work Select profile profile options WORK Create new profile Edit profile Alerts Option Result Acknowledge Sets the alarm state to acknowledged, meaning that you are aware of the alarm condition. The siren/buzzer stops and the alarm dialog is removed.
- Page 6 Silence Mutes the siren locally (for 30 seconds) for all units in the same network alarm group. The alert dialog remains on the display. Close Caution messages time-out, you can close the alert message pop-up. Quick menus Manual modes Automatic and navigation modes Automatic and manual source Manual setting (Rudder, selection...
