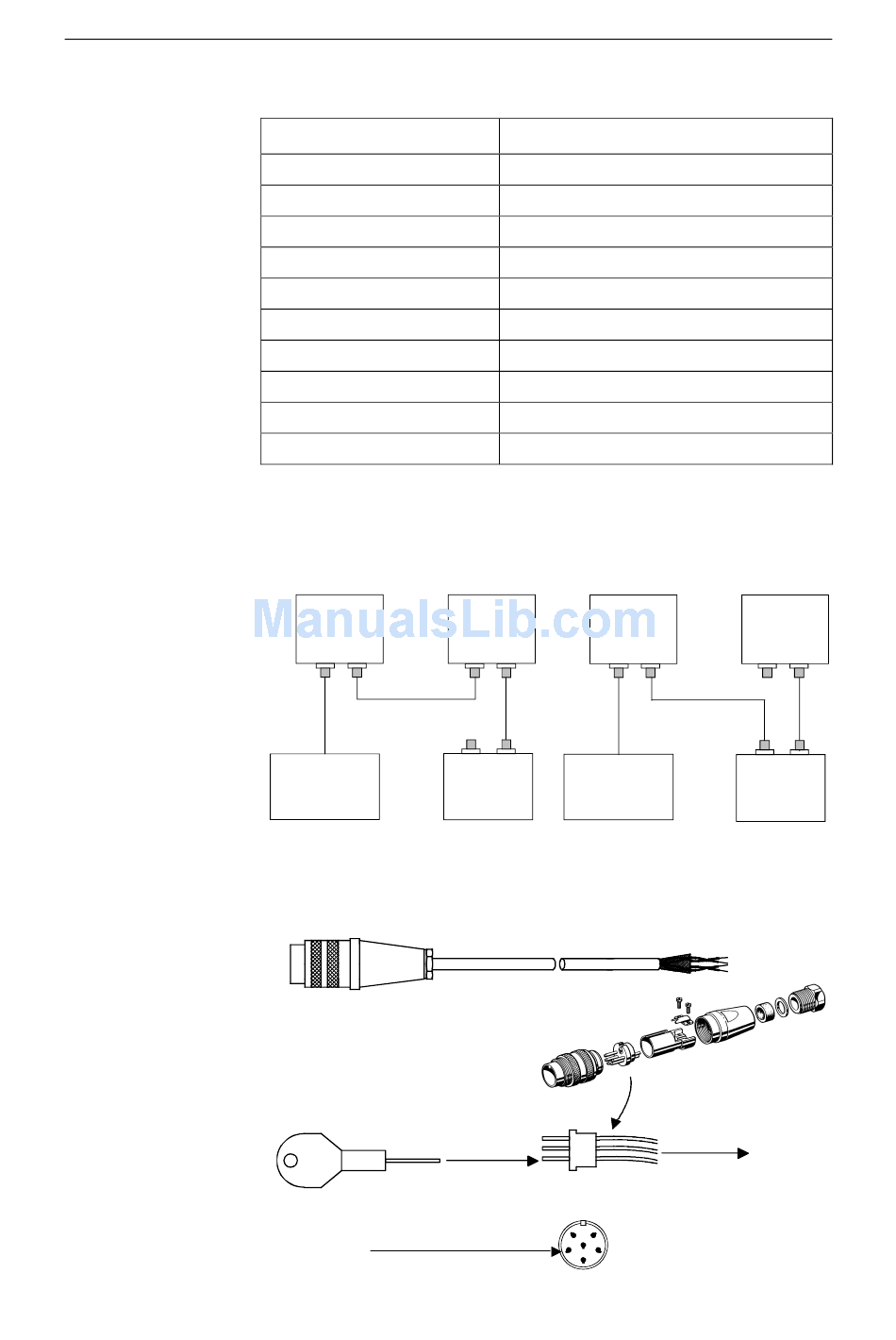

Use the following table as a guideline.
Number of Robnet units
1
2
3
4
5
6
7
8
9
10
If the total length exceeds the recommended length, please
contact your Simrad distributor on how to arrange the system to
minimize the voltage drop.
Examples of interconnecting Robnet units:
CONTROL
UNIT
JUNCTION
UNIT
Figure 2-21 Interconnecting Robnet Units
All connectors are crimp-type and can be easily disassembled if
desired for ease of installation (see Figure 2-22).
HOW TO REMOVE PINS:
Extraction tool
Insert tool in slot
Figure 2-22 Removing Pin
Maximum cable length in m (feet)
390 (1270')
195 (640')
130 (425')
95 (310')
75 (245')
65 (210')
55 (180')
50 (165')
45 (150')
40 (130')
CONTROL
CONTROL
UNIT
UNIT
JUNCTION
NI300X
UNIT
Installation
CONTROL
UNIT
NI300X
Pull the wire
