Simrad AP50 Autopilot

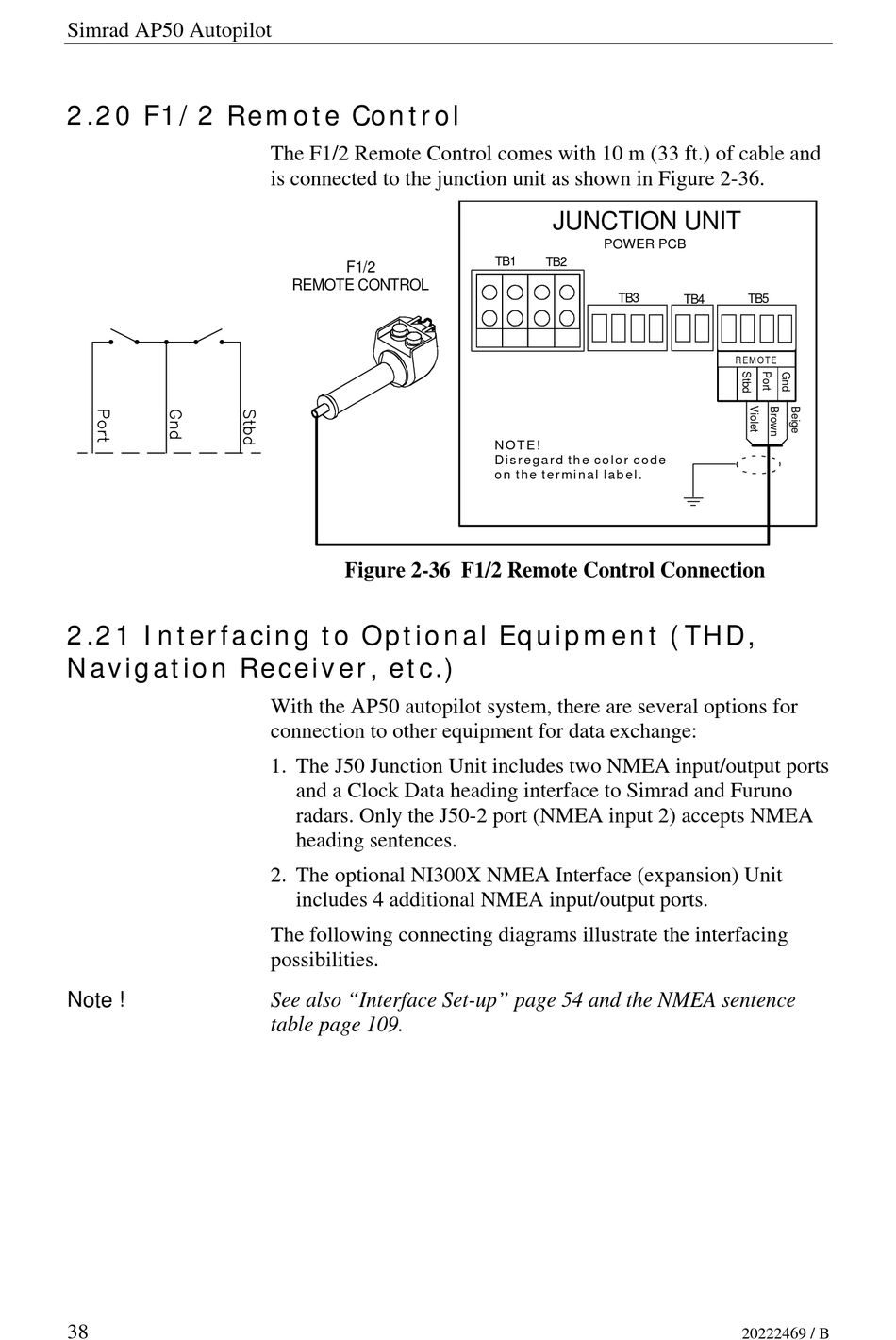

2.20 F1/2 Remote Control

2.21 Interfacing to Optional Equipment (THD,
Navigation Receiver, etc.)
Note !
38
The F1/2 Remote Control comes with 10 m (33 ft.) of cable and
is connected to the junction unit as shown in Figure 2-36.
F1/2
REMOTE CONTROL
Figure 2-36 F1/2 Remote Control Connection
With the AP50 autopilot system, there are several options for
connection to other equipment for data exchange:
1. The J50 Junction Unit includes two NMEA input/output ports
and a Clock Data heading interface to Simrad and Furuno
radars. Only the J50-2 port (NMEA input 2) accepts NMEA
heading sentences.
2. The optional NI300X NMEA Interface (expansion) Unit
includes 4 additional NMEA input/output ports.
The following connecting diagrams illustrate the interfacing
possibilities.
See also "Interface Set-up" page 54 and the NMEA sentence
table page 109.
JUNCTION UNIT
POWER PCB
TB1
TB2
TB3
N O T E!
D i s r e g a r d t h e co l o r c o d e
o n t h e t e r mi n a l l a b e l .
TB5
TB4
R EM O TE
R E M O T E
20222469 / B
