Simrad AP50 Autopilot

6.16 S9 Steering Lever

Dimensions: ............................................................................................... See Figure 6-13
Weight: ....................................................................................................... 2.8 kg (6.2 lbs)
Environmental Protection:........................................................................................... IP56
Temperature range:
Operation: ...............................................–25 - +55°C (–13 to +130°F)
Storage:................................................... –30 to +70°C (–22 to +158°F)
Safe distance to compass: .............................................................................. 0.15 m (0.5')
Max. inductive load: ....................4A/24V DC, 0.6A/110V DC, 0.3A/220V DC, 10A/AC
108
144 (5.67")
Panel cut-out:138x138 (5.44")

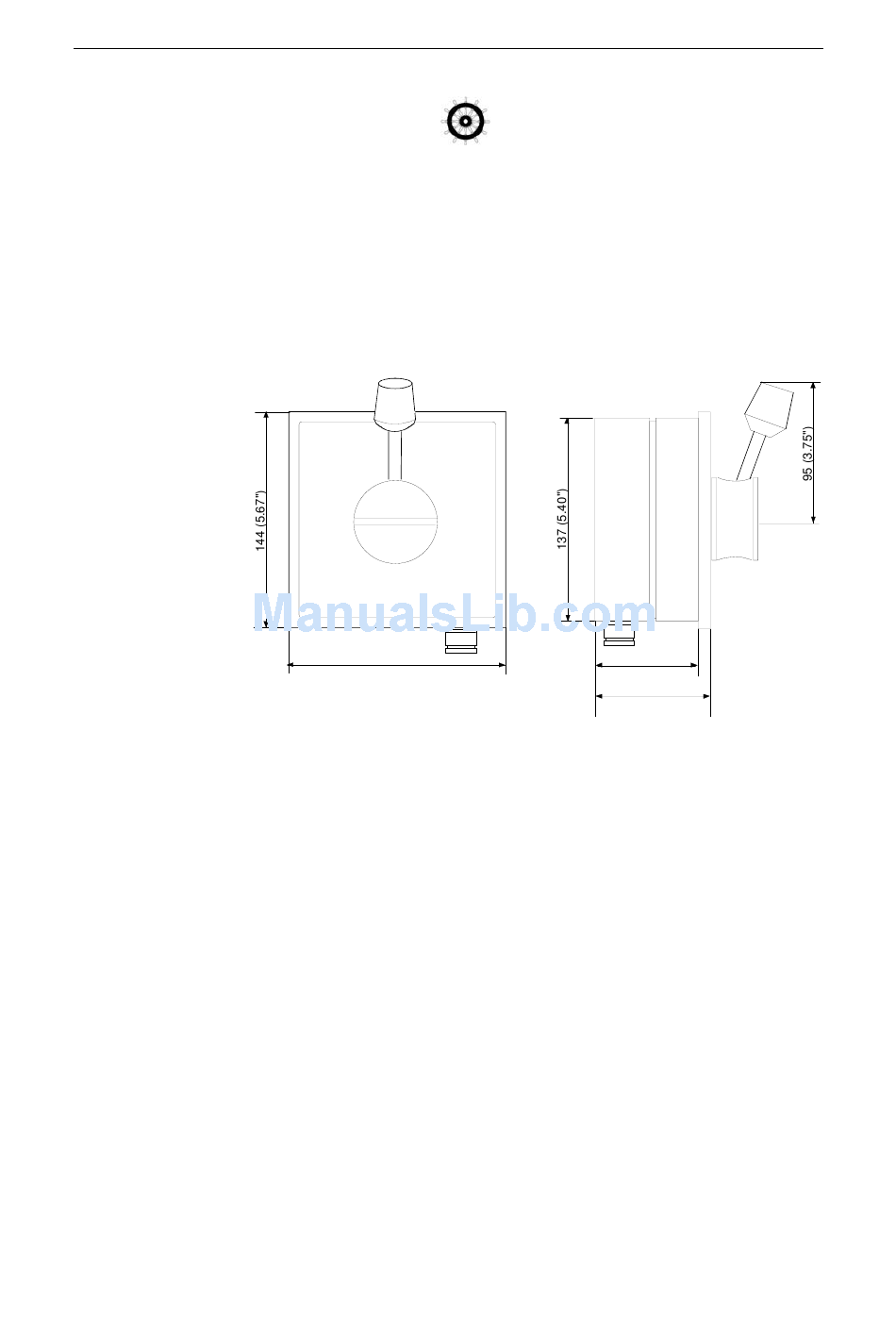

Figure 6-13 S9 Steering Lever - Dimensions
70 (2.75")
78 (3.1")
20222469 / B
