6.3 AP51 Remote Control

Dimensions: ................................................................................................. See Figure 6-2
Weight: .................................................................................................. 0.57 kg (1.25 lbs.)
Material:.................................................................................................................PC-ABS
Supply....................................................................... 12-32 VDC –10%/+30% via Robnet
Power consumption ......................................................................................................3 W
Environmental Protection:........................................................................................... IP56
Safe distance to compass: ........................................................................... 0.35 m (1.0 ft.)
Color: ......................................................................................................................... Black
Temperature:
Operating:.................................................................. –25 to +55°C (–13 to +130°F)
Storage: ..................................................................... –30 to +70°C (–22 to +158°F)
Display:
Type: ..........................................................................................Backlit LCD matrix
Resolution: .......................................................................................... 80 x 32 pixels
Illumination: ..................................................................................Adjustable in 10 grades
Mounting: ...................................................Handheld or placed in a fixed, bracket-mount
Cable:............................... 7m (23 ft.) Robnet cable with air tube and one male connector
20222469 / B

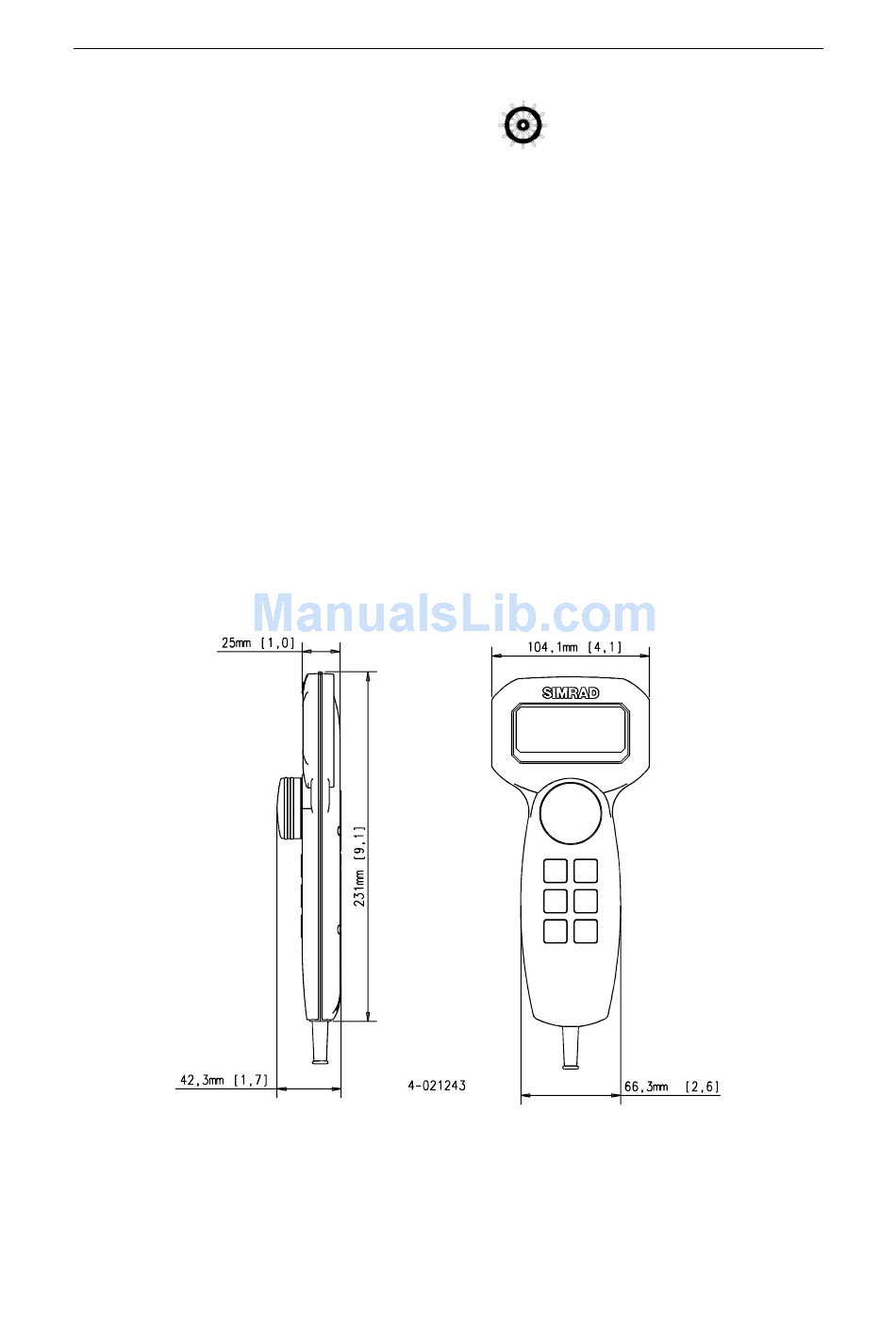

Figure 6-2 AP51 Remote Control Dimensions
