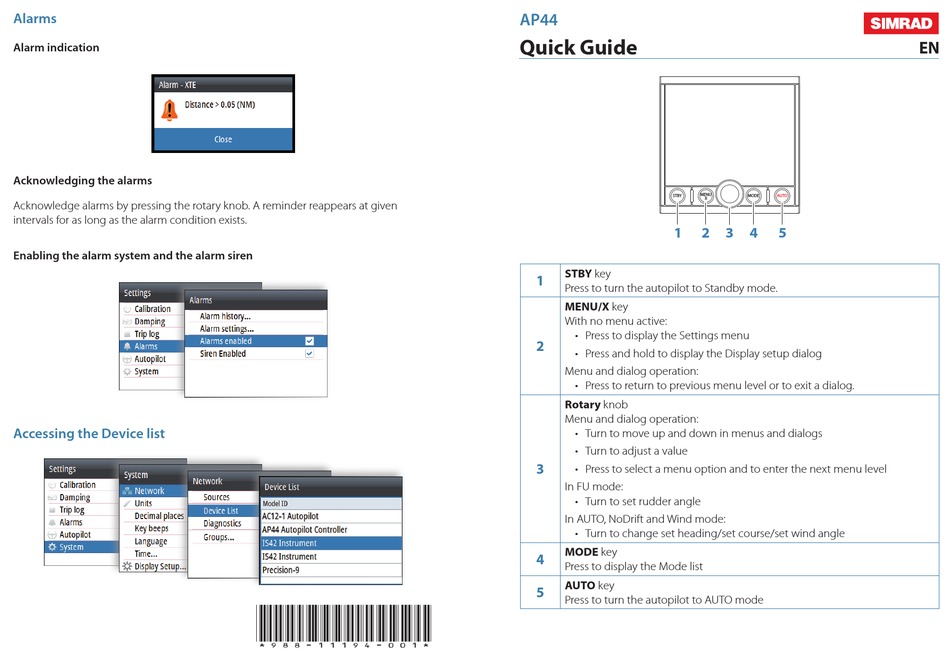

Alarms
Alarm indication
Acknowledging the alarms
Acknowledge alarms by pressing the rotary knob. A reminder reappears at given
intervals for as long as the alarm condition exists.
Enabling the alarm system and the alarm siren
Accessing the Device list
*988-11194-001*

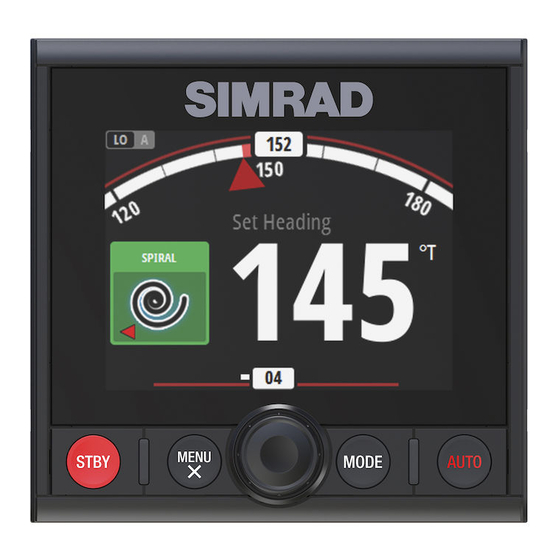

AP44
Quick Guide
STBY
1
STBY key
1
Press to turn the autopilot to Standby mode.
MENU/X key
With no menu active:
• Press to display the Settings menu
2
• Press and hold to display the Display setup dialog
Menu and dialog operation:
• Press to return to previous menu level or to exit a dialog.
Rotary knob
Menu and dialog operation:
• Turn to move up and down in menus and dialogs
• Turn to adjust a value
3
• Press to select a menu option and to enter the next menu level
In FU mode:
• Turn to set rudder angle
In AUTO, NoDrift and Wind mode:
• Turn to change set heading/set course/set wind angle
MODE key
4
Press to display the Mode list
AUTO key
5
Press to turn the autopilot to AUTO mode
MENU
MODE
AUTO
X
2
3
4
5
EN
