2. PART NAMES AND FUNCTIONS

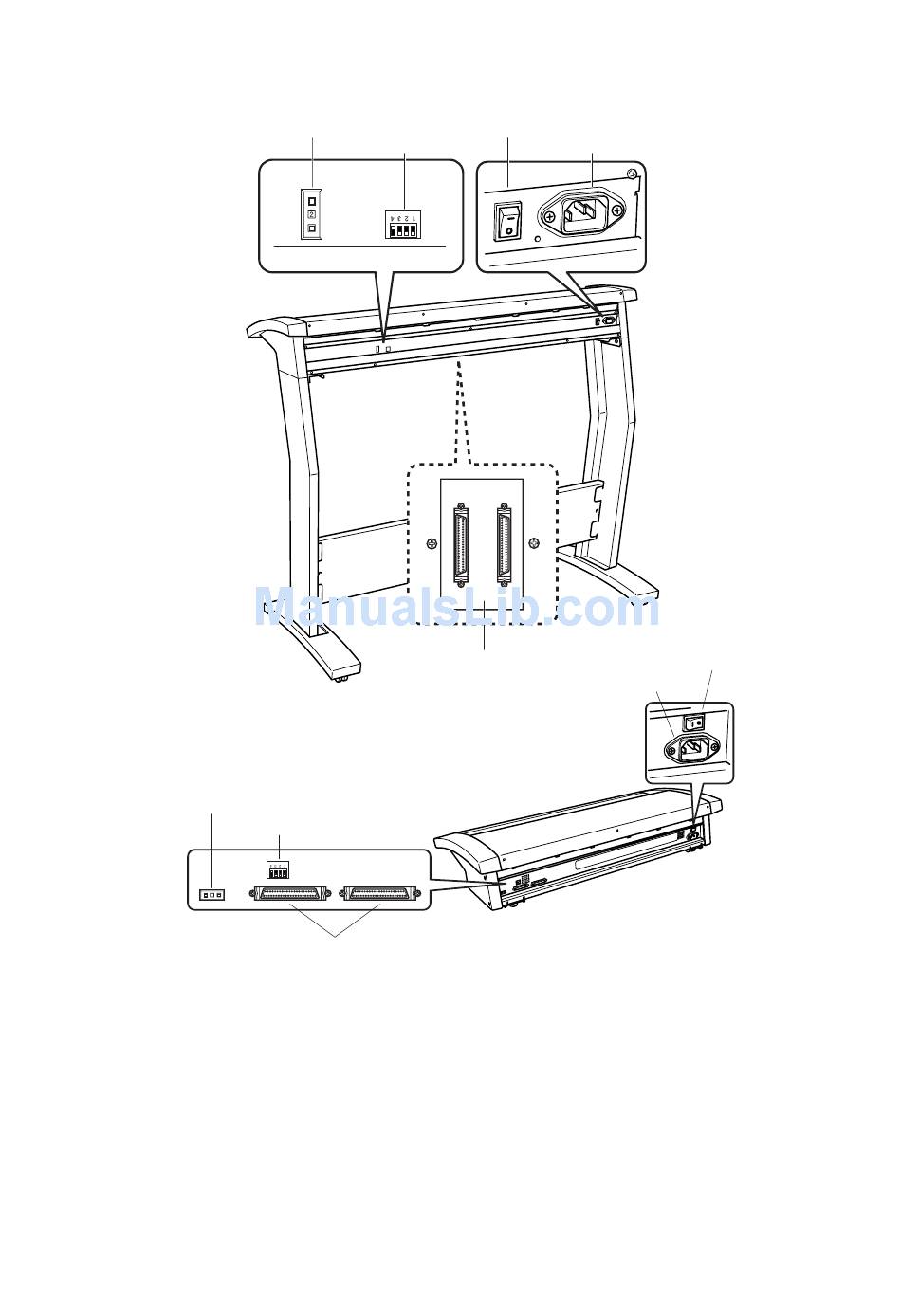

Rear View

Power switch
SCSI-ID switches
AC line inlet
DIP switch
CS1000/1000EV
SCSI connectors
Power switch
AC line inlet
CS1100EV
SCSI-ID switches
DIP switch
SCSI connectors
SCSI-ID switches
Used to specify the ID numbers of the SCSI interfaces.
DIP switch
Used to set the scanner's functions.
Power switch
Controls the on/off status of the power supply to the scanner.
AC line inlet
Connect the power cord's female plug here.
SCSI connectors
Used to connect SCSI interface cables. The two connectors are connected in parallel inside the scanner.
