8.10 Power Boards

Disassembly procedure
8.2
p.8-2
Detaching the document
hold-down unit

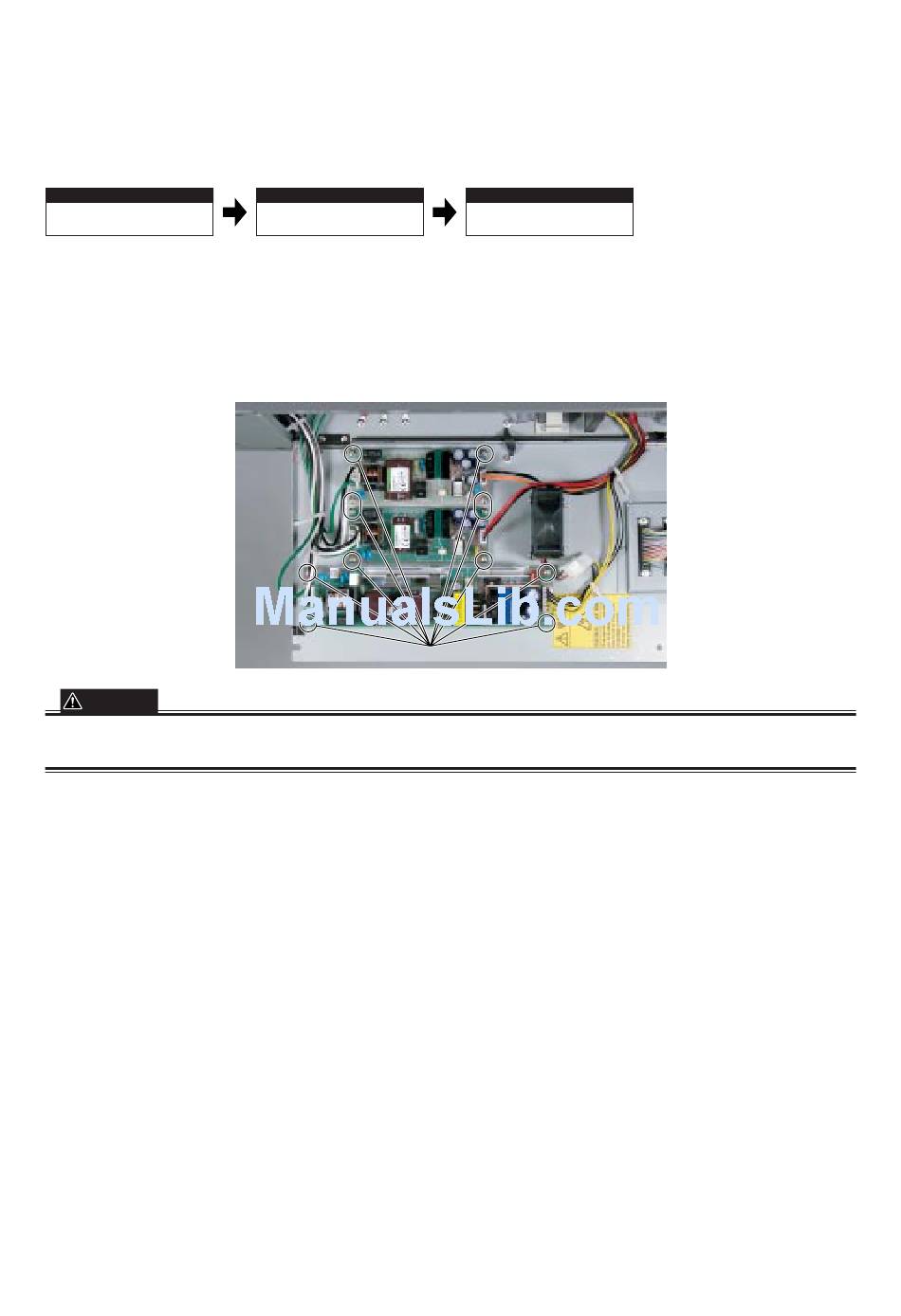

Detaching the power boards
(1) Remove all connectors and the four silver M3L6 binding head screws from each of the power boards,
while supporting the board with one hand.
CAUTION
To prevent the power boards from falling and becoming damaged when the screws are removed, be sure to support
each of the boards.
(2) Place each of the boards on a safe and stable surface.
CS1000-UM-251-03-9370
8. DISASSEMBLING AND ADJUSTING MECHANICAL PARTS
8.8
p.8-9
Detaching the large
bottom plate
M3L6 binding head screws
8-13
This Section
Detaching the power
boards
