10. ADJUSTMENTS WITH SOFTWARE

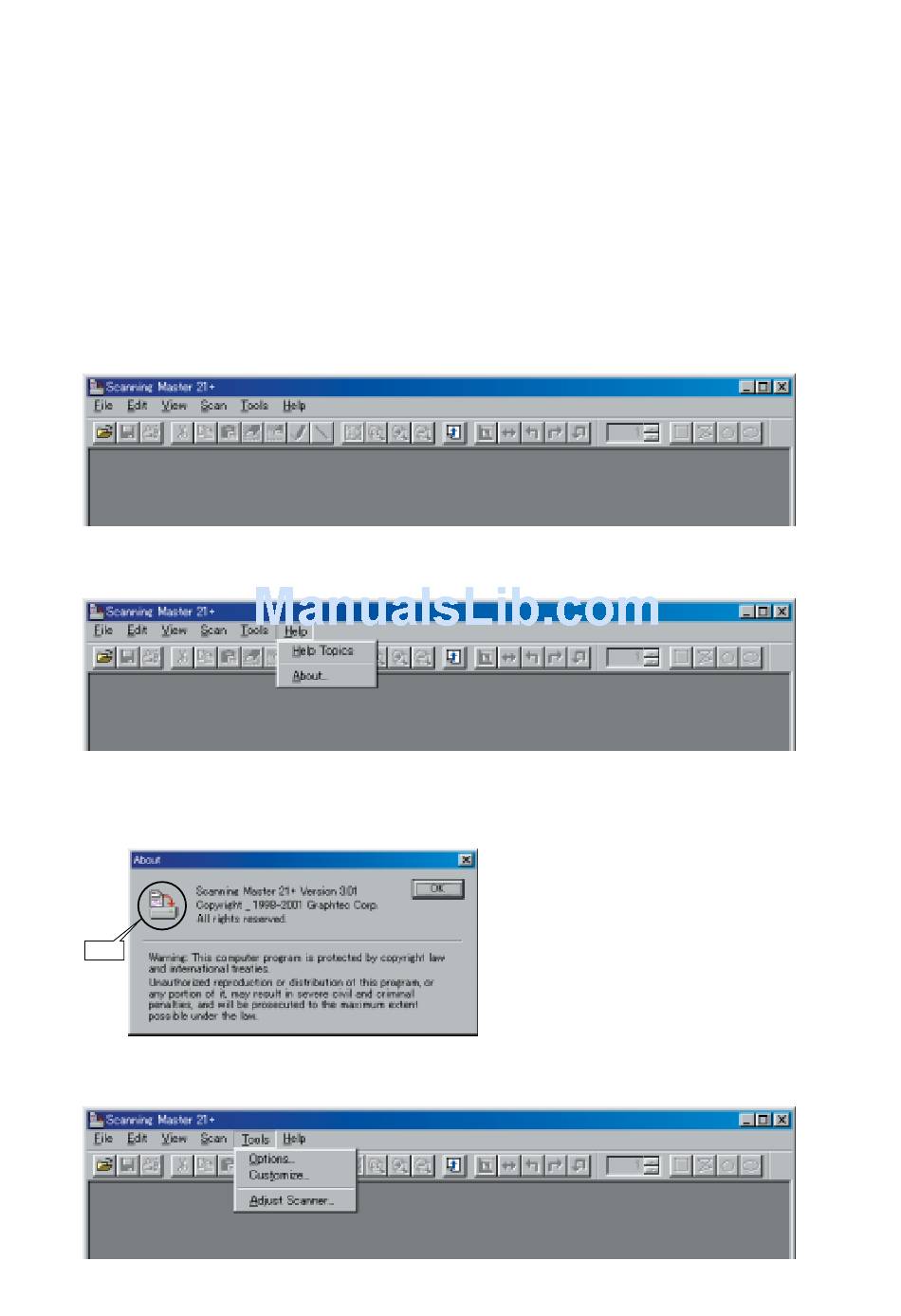

10.1 Starting the Software

• Ensure that OPS112 (ScanningMaster 21+ Ver 3.15 or later) is installed.
• Set DIP switch 2 on the scanner to "ON."
(1) Connect the scanner to the PC using a SCSI cable and switch on the scanner.
(2) Start Windows (OS).
(3) Start OPS112 (ScanningMaster 21+).
(4) Select "About" from the "Help" menu.
(5) Click the scanner icon while pressing and holding the "Ctrl" key.
Next, click the "OK" button while pressing and holding the "Shift" key.
Icon
(6) Select "Adjust Scanner" from the "Tools" menu.
CS1000-UM-251-02-9370
10. ADJUSTMENTS WITH SOFTWARE
10-1
