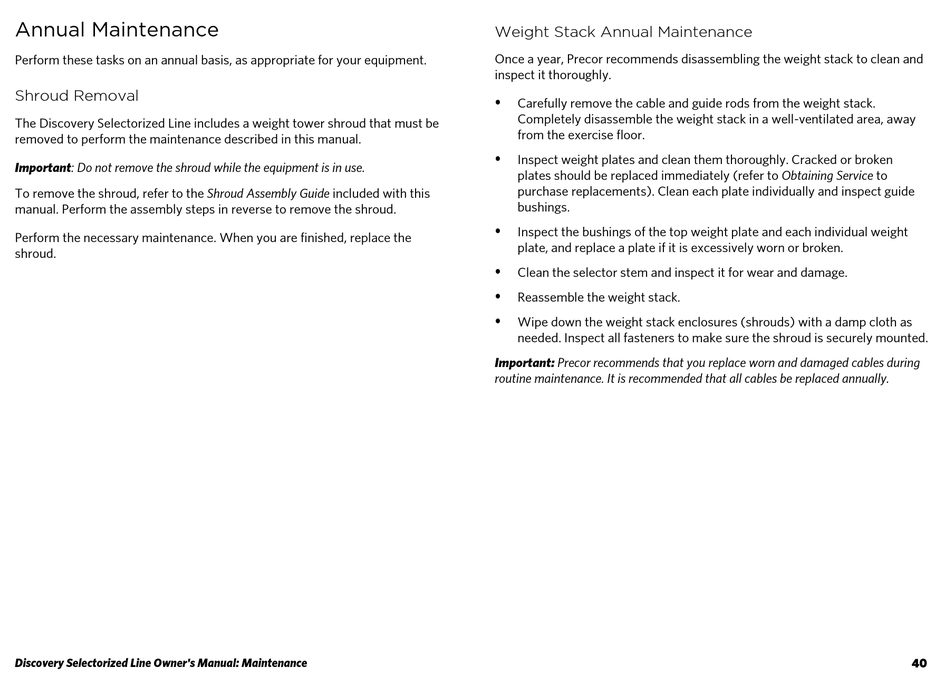

Annual Maintenance

Perform these tasks on an annual basis, as appropriate for your equipment.
Shroud Removal
The Discovery Selectorized Line includes a weight tower shroud that must be
removed to perform the maintenance described in this manual.
Important: Do not remove the shroud while the equipment is in use.
To remove the shroud, refer to the Shroud Assembly Guide included with this
manual. Perform the assembly steps in reverse to remove the shroud.
Perform the necessary maintenance. When you are finished, replace the
shroud.
Discovery Selectorized Line Owner's Manual: Maintenance
Weight Stack Annual Maintenance
Once a year, Precor recommends disassembling the weight stack to clean and
inspect it thoroughly.
 Carefully remove the cable and guide rods from the weight stack.
Completely disassemble the weight stack in a well-ventilated area, away
from the exercise floor.
 Inspect weight plates and clean them thoroughly. Cracked or broken
plates should be replaced immediately (refer to Obtaining Service to
purchase replacements). Clean each plate individually and inspect guide
bushings.
 Inspect the bushings of the top weight plate and each individual weight
plate, and replace a plate if it is excessively worn or broken.
 Clean the selector stem and inspect it for wear and damage.
 Reassemble the weight stack.
 Wipe down the weight stack enclosures (shrouds) with a damp cloth as
needed. Inspect all fasteners to make sure the shroud is securely mounted.
Important: Precor recommends that you replace worn and damaged cables during
routine maintenance. It is recommended that all cables be replaced annually.
