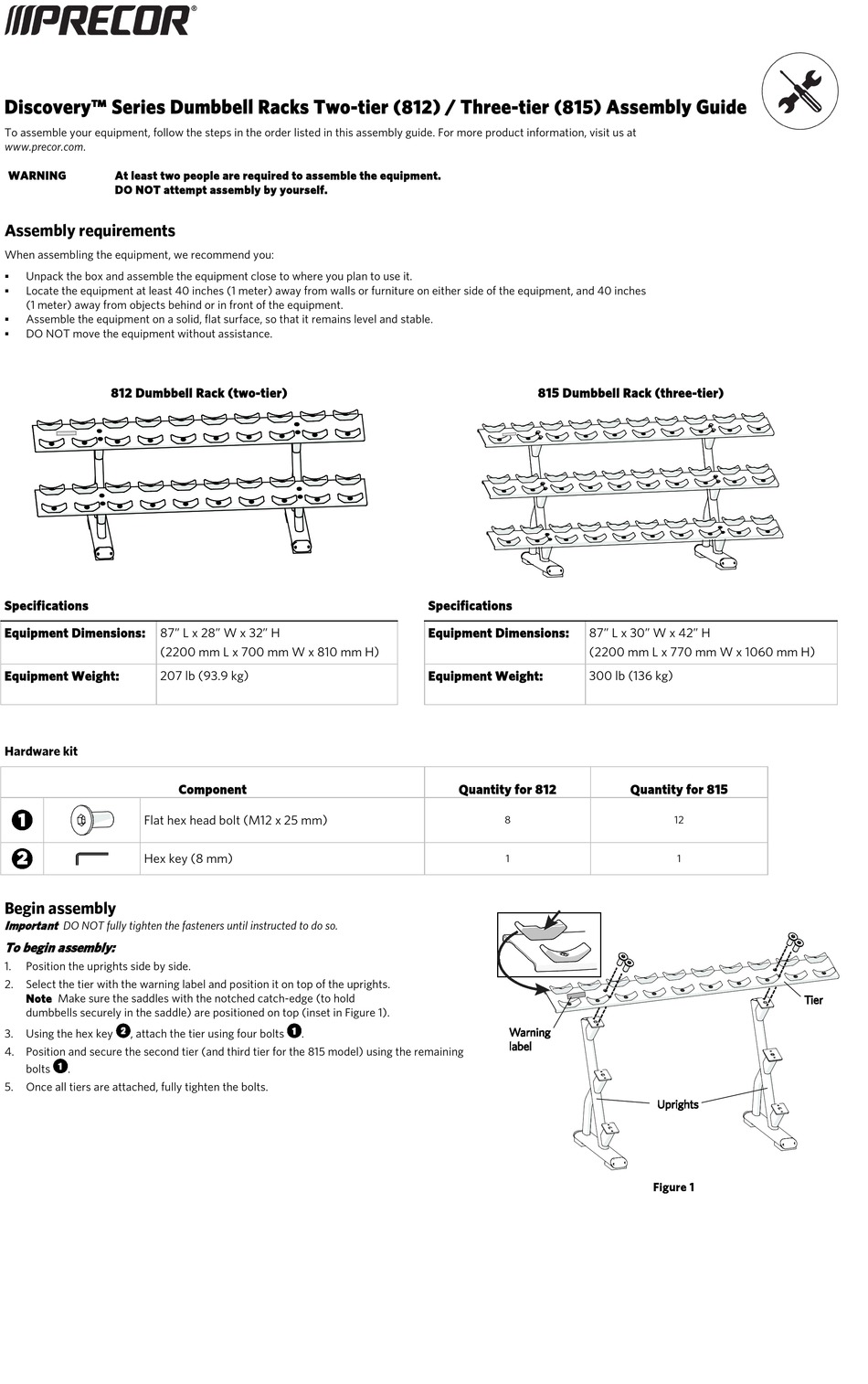

Precor Discovery Series Assembly Manual

Discovery™ Series Dumbbell Racks Two-tier (812) / Three-tier (815) Assembly Guide
To assemble your equipment, follow the steps in the order listed in this assembly guide. For more product information, visit us at
www.precor.com.
WARNING At least two people are required to assemble the equipment.
DO NOT attempt assembly by yourself.
Assembly requirements
When assembling the equipment, we recommend you:
Unpack the box and assemble the equipment close to where you plan to use it.

Locate the equipment at least 40 inches (1 meter) away from walls or furniture on either side of the equipment, and 40 inches

(1 meter) away from objects behind or in front of the equipment.
Assemble the equipment on a solid, flat surface, so that it remains level and stable.

DO NOT move the equipment without assistance.

812 Dumbbell Rack (two-tier)
Specifications
Equipment Dimensions: 87" L x 28" W x 32" H
(2200 mm L x 700 mm W x 810 mm H)
Equipment Weight: 207 lb (93.9 kg)
Hardware kit
Flat hex head bolt (M12 x 25 mm)
Hex key (8 mm)
Begin assembly
Important
DO NOT fully tighten the fasteners until instructed to do so.
To begin assembly:
1. Position the uprights side by side.
2. Select the tier with the warning label and position it on top of the uprights.
Note Make sure the saddles with the notched catch-edge (to hold
dumbbells securely in the saddle) are positioned on top (inset in Figure 1).
3. Using the hex key , attach the tier using four bolts
4. Position and secure the second tier (and third tier for the 815 model) using the remaining
bolts .
5. Once all tiers are attached, fully tighten the bolts.
Component
.
815 Dumbbell Rack (three-tier)
Specifications
Equipment Dimensions: 87" L x 30" W x 42" H
(2200 mm L x 770 mm W x 1060 mm H)
Equipment Weight: 300 lb (136 kg)
Quantity for 812
8
1
Quantity for 815
12
1
Figure 1
