Owner's Manual

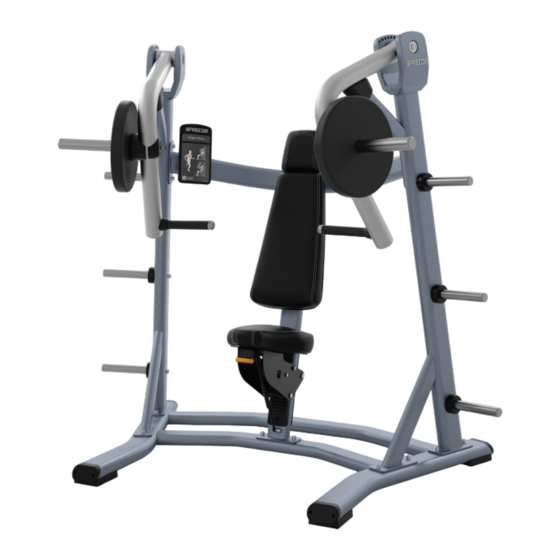

Discovery™ Series Plate Loaded Line

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Discovery Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Precor Discovery Series

Summary of Contents for Precor Discovery Series

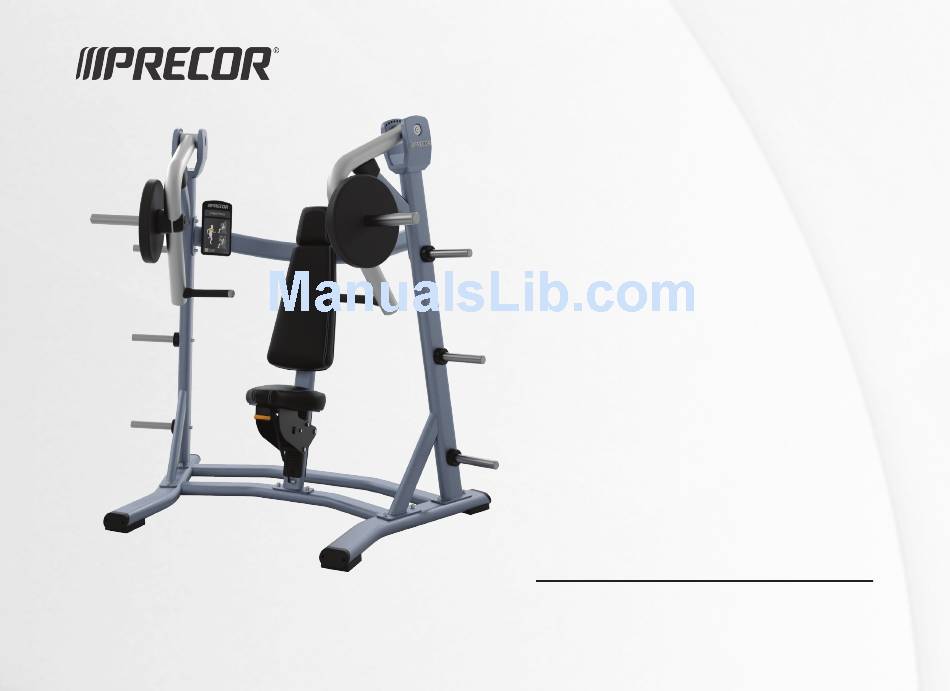

  • Page 1 Owner’s Manual Discovery™ Series Plate Loaded Line...

  • Page 3: Important Safety Guidelines For Owners

    Since floor construction varies, please consult a professional building engineer for proper fastening. Discovery Series Plate Loaded Line Owner's Manual: Important Safety Guidelines for Owners...

  • Page 4: Important Safety Information For Users

     Do not use the equipment if an "out of order" sign has been placed on it.  Read all posted instructions, including all safety instructions and warnings. Discovery Series Plate Loaded Line Owner's Manual: Important Safety Information for Users...

  • Page 5: Table Of Contents

    Inspect and Lubricate Bearings and Bushings ......10 Check and Lubricate Seat Adjustment .......... 10 Monthly Inspection ..............11 Inspect Frames and Movement Arms ..........11 Inspect All Fasteners ................11 Discovery Series Plate Loaded Line Owner's Manual: Table of Contents...

  • Page 6: Before You Begin

    Important: Always purchase replacement parts and hardware from Precor. Many parts are tested and manufactured specifically for Precor commercial strength equipment. If you use parts not approved by Precor, you could void the Precor Limited Warranty. Use of parts not approved by Precor may cause injury.

  • Page 7: Obtaining Service

    Model #: Serial #: your dealer. If you need more information regarding customer support numbers or a list of Precor authorized service centers, visit the Precor website Date purchased: at www.precor.com. If you have any questions regarding a piece of equipment, locate its serial...

  • Page 8: Daily Inspection

     Inspect pads for wear. Service to purchase new pads).  Clean and inspect equipment frames. Important: Do not reupholster pads or use pads not approved by Precor.  Check warning and instructional labels. Clean and Inspect Frames Clean Upholstery...

  • Page 9: Check Warning And Instructional Labels

    Service for purchase information). Clean labels as needed with a mild soap and water solution in a spray bottle, and dry thoroughly with a soft cloth. Figure 1: Example instructional placard Discovery Series Plate Loaded Line Owner's Manual: Daily Inspection...
  • Page 10 Precor products come equipped with a number of standard warning labels. The following two figures show sample warning labels you may see on the equipment depending on the model and product line: Figure 2: Warning label indicating pinching hazard Figure 3: General warning label mounted on the equipment frame...

  • Page 11: Weekly Inspection

    Important: To clean the upholstery, do not use cleaning products that have any of these ingredients: solvents, alcohol, ammonia, or petroleum. Use a mild  Check and lubricate the seat adjustment mechanism. detergent-based cleaner instead. Discovery Series Plate Loaded Line Owner's Manual: Weekly Inspection...

  • Page 12: Inspect And Lubricate Bearings And Bushings

    The seat adjustment mechanism requires little maintenance. However, because seat safety is important to the safety of a workout, you should check Precor uses high quality bearings designed for strength applications and long the seat lever regularly to see if it sticks when used.

  • Page 13: Monthly Inspection

    Replace any component at first signs of wear. Important: Fastener quality and specifications vary considerably. Replace only with Note: You can order touch-up paint from Precor by calling Customer Support. the Precor approved fastener specifically engineered for the precise application.
  • Page 14 Notes : Discovery Series Plate Loaded Line Owner’s Manual: Monthly Inspection...
  • Page 16 U.S. and foreign patents for both the mechanical construction and the visual aspects of its P.O. Box 7202 product design. Any party contemplating the use of Precor product designs is hereby forewarned that Precor Discovery™ Series Plate Loaded Line Owner’s Manual Woodinville, WA USA 98072-4002 considers the unauthorized appropriation of its proprietary rights to be a very serious matter.

  • Page 17: Assembly Guide

    Assembly Guide Discovery™ Series Plate Loaded Line Biceps Curl...
  • Page 19 Table of Contents Getting Started ................2 Opening the Boxes ................2 Installation Requirements ..............2 Hardware Kit (not to scale) ..............3 Assembling the Equipment ............6 Stabilizing the Equipment ..............7 Installing the Movement Arm Support Assembly on the Base Frame ................8 Installing the Seat Frame and Crossbar ...........9 Installing the Weight Arm ..............

  • Page 20: Getting Started

    Getting Started Opening the Boxes Installation Requirements WARNING You will need assistance to assemble this unit. DO Open the boxes and remove the packing materials. Be careful to open the NOT attempt assembly by yourself. boxes and assemble the components in the sequence presented in this manual.

  • Page 21: Hardware Kit (Not To Scale)

    Hardware Kit (not to scale) The following pieces of hardware are provided on a shrink-wrapped card. Each part is labeled on the card for easy reference. Table 1. Hardware kit contents Fasteners Quantity Buttonhead cap screw (M8 x 15 mm) Socket head cap screw (M12 x 35 mm) Socket head cap screw (M8 x 25 mm) Flat head cap screw (M12 x 30 mm)
  • Page 22 Fasteners Quantity Set screw (M8 x 6 mm) Nylon lock nut (⁵₁₆-inch) Table 2. Other Components Part Quantity Weight horn Weight arm pivot axle Movement arm axle key Belt retaining block (short shaft) End cap Movement arm axle end Gas spring Biceps Curl Assembly Guide: Getting Started...
  • Page 23 Part Quantity Instructional placard Hex wrench (10 mm) Hex wrench (8 mm) Biceps Curl Assembly Guide: Getting Started...

  • Page 24: Assembling The Equipment

    Precor highly recommends that the equipment be bolted to the floor to reduce the risk of toppling due to improper use. Because floor construction varies, consult a professional building engineer for proper fastening.

  • Page 25: Stabilizing The Equipment

    Stabilizing the Equipment 4. Using the same open-end wrench, turn the positioning bolt to the left or the right to move the adjustable foot to the appropriate level, as shown in Once you have positioned the base frame where you want the equipment to be the following figure.

  • Page 26: Installing The Movement Arm Support Assembly On The Base Frame

    Installing the Movement Arm Support Assembly on the Base Frame Unlike most Discovery Plate Loaded equipment, the Biceps Curl is shipped with the movement arm axle preinstalled. The movement arm support assembly contains the axle, the cam, and the pivot bracket for the weight arm. To install the movement arm support assembly: 1.

  • Page 27: Installing The Seat Frame And Crossbar

    Installing the Seat Frame and Crossbar To install the crossbar: 1. Position the crossbar against the movement arm support and the seat The seat frame includes the seat pad bracket, the seat adjustment mechanism, frame as shown in the following figure. and the bracket for the arm pad.

  • Page 28: Installing The Weight Arm

    5. Place an axle mount end on each end of the axle and attach a M12 x 30 Installing the Weight Arm mm flat head screw to each end, as shown in the following figure. When the equipment is completely assembled, the weight arm supports the weight plates that are loaded onto the equipment.

  • Page 29: Installing The Movement Arm

    Installing the Movement Arm Attaching the Counterweight For this procedure, you will need the two flat, oval, metal keys from the After completing assembly of the movement arm, you can make final hardware kit. These keys lock the movement arm to the axle and cam. adjustments to the alignment of the frame and tighten its fasteners.

  • Page 30: Connecting The Belt

    Connecting the Belt 4. Insert the retaining block into the retaining bracket, making sure the belt passes around it on the inward side (the side opposite the two screw Note: Before you begin this procedure, make sure that the movement arm is all holes).

  • Page 31: Attaching The Weight Horn To The Weight Arm

    Attaching the Weight Horn to the To attach the weight horn: Weight Arm 1. Insert the weight horn into the inward side of the fitting on the weight arm. Slide the weight horn into the fitting until it stops. After both arms are in place and operating correctly, add the weight horn and 2.

  • Page 32: Attaching The Seat Pad

    2. Insert four ⁵₁₆-inch x 1¹₂-inch hex head screws with 9mm flat washers into Attaching the Seat Pad the screw holes in the pad, as shown in the following figure. The seat mechanism is preassembled, except for the seat pad and the gas spring.

  • Page 33: Connecting The Gas Spring

    Connecting the Gas Spring 2. Place a ⁵₁₆-inch nylon lock nut over the end of the stem and tighten it partially. The gas spring, which lifts the seat assembly when an exerciser adjusts the 3. Insert the threaded end of the lower stem through the hole in the small seat height, is attached to the seat assembly and the frame through two bracket on the frame, as shown in the following figure.

  • Page 34: Attaching The Arm Pad

    Attaching the Arm Pad To adjust the rollers: 1. Loosen the screws securing the upper front roller. The following figure The mounting plate for the arm pad is at the top of the seat frame. shows the location of one of these screws. To attach the pad: 1.

  • Page 35: Attaching The Instructional Placard And Safety Labels

    2. Place the large hole near the bottom of the placard over the button, then Attaching the Instructional Placard and slide the placard downward to lock it into place as shown in the following Safety Labels figure. The equipment includes a metal bracket for the instructional placard. The placard slides over a metal button near the bottom of the bracket.
  • Page 36 3. Insert an M8 x 15 mm buttonhead screw with 9mm flat washer into the Note: If you are installing labels in a language other than English, remove screw hole near the top of the bracket, as shown in the following figure. the general warning label attached to the equipment.
  • Page 37 Notes: Biceps Curl Assembly Guide: Notes...
  • Page 38 Notes: Biceps Curl Assembly Guide: Notes...
  • Page 40 U.S. and foreign patents for both the mechanical construction and the visual aspects of its Discovery™ Series Plate Loaded Line P.O. Box 7202 product design. Any party contemplating the use of Precor product designs is hereby forewarned that Precor Biceps Curl Assembly Guide Woodinville, WA USA 98072-4002 considers the unauthorized appropriation of its proprietary rights to be a very serious matter.
