Completion; Closing The Server - Fujitsu PRIMERGY RX600 S3 Options Manual

12

Completion

V
ATTENTION!
Make sure you observe the safety notes in the
on page 13ff.
12.1

Closing the server

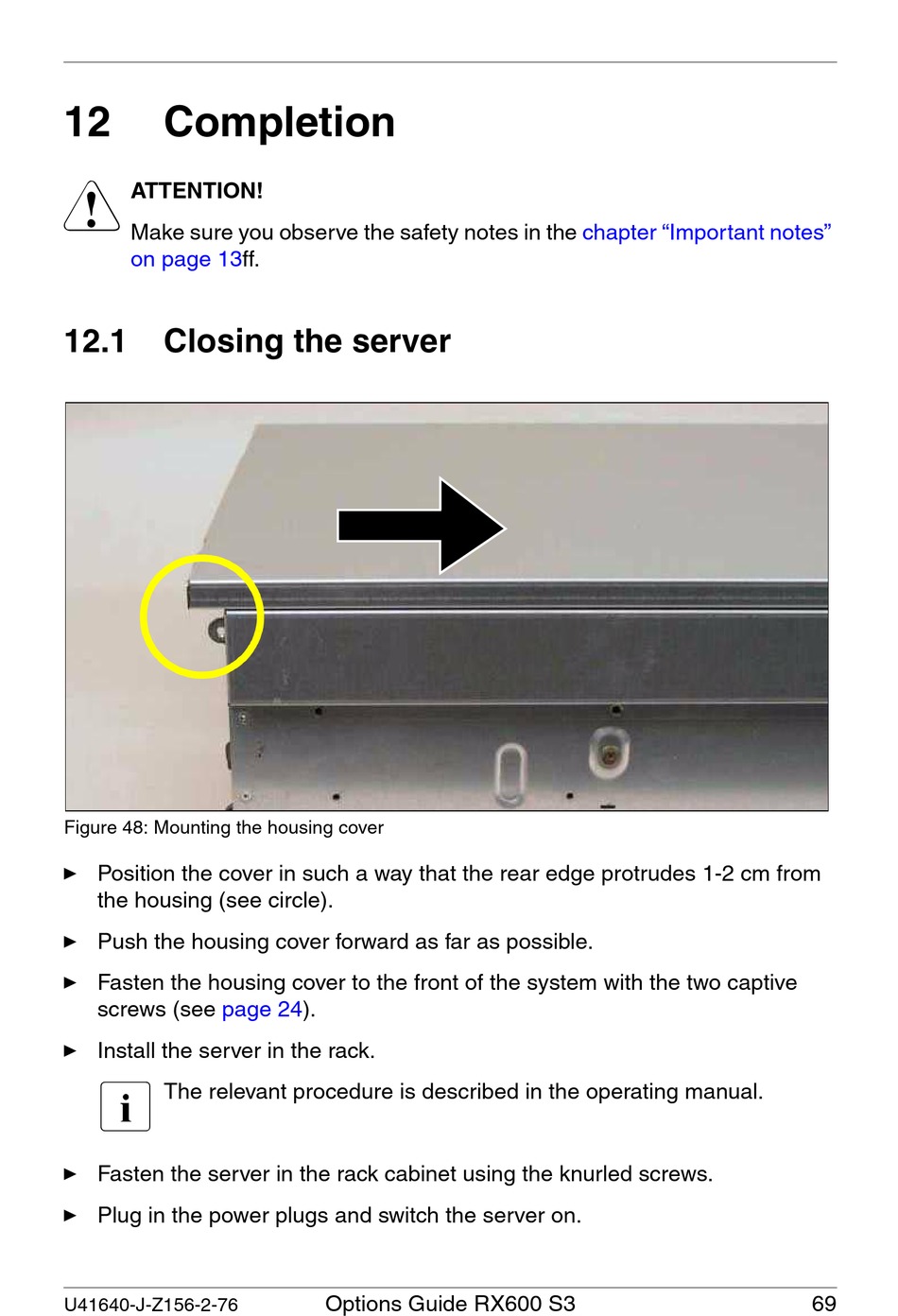

Figure 48: Mounting the housing cover
Ê Position the cover in such a way that the rear edge protrudes 1-2 cm from
the housing (see circle).
Ê Push the housing cover forward as far as possible.
Ê Fasten the housing cover to the front of the system with the two captive
screws (see page
Ê Install the server in the rack.
I
The relevant procedure is described in the operating manual.
Ê Fasten the server in the rack cabinet using the knurled screws.
Ê Plug in the power plugs and switch the server on.
U41640-J-Z156-2-76
24).
Options Guide RX600 S3
chapter "Important notes"
69
