Installing an external SCSI connection

10.1 Installing an external SCSI connection
Install the following cable (FSC no. A3C40065530):
A

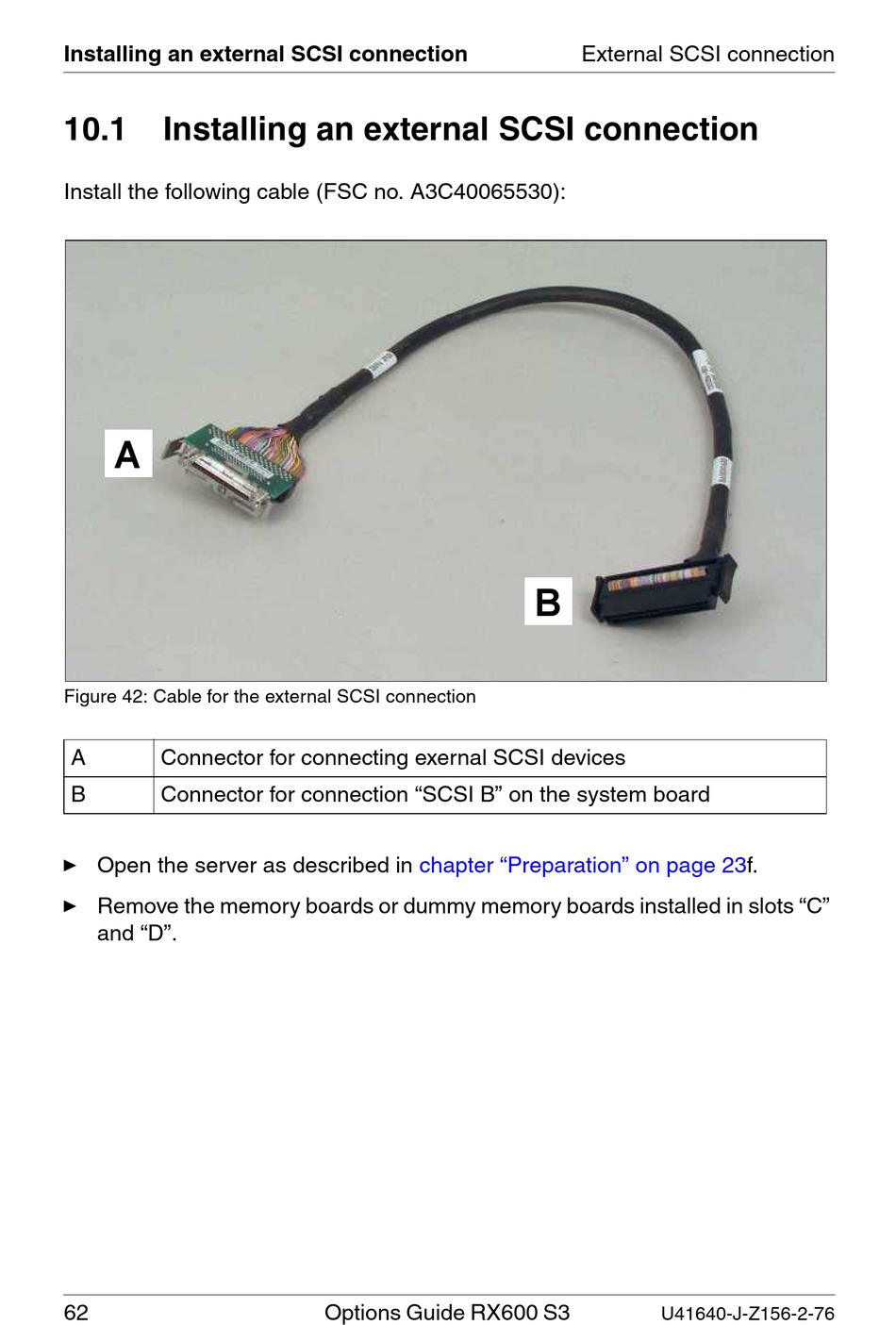

Figure 42: Cable for the external SCSI connection
A Connector for connecting exernal SCSI devices
B Connector for connection "SCSI B" on the system board
Ê Open the server as described in
Ê Remove the memory boards or dummy memory boards installed in slots "C"
and "D".
