Operating manual - English

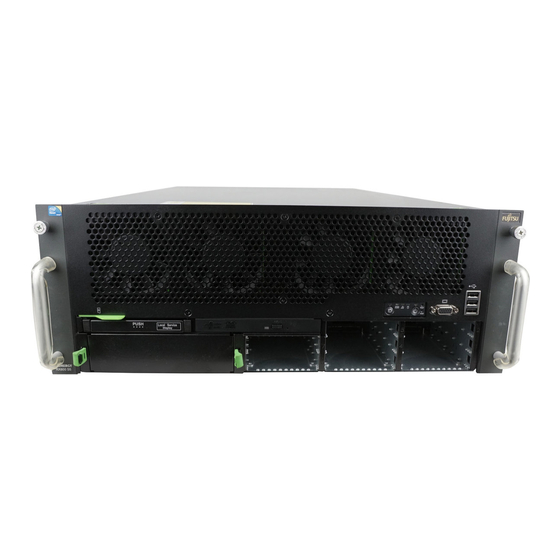

PRIMERGY RX600 S5 Server
Operating Manual
January 2011

Advertisement

Table of Contents
loading

Related Manuals for Fujitsu PRIMERGY RX600 S5

Summary of Contents for Fujitsu PRIMERGY RX600 S5

  • Page 1 Operating manual - English PRIMERGY RX600 S5 Server Operating Manual January 2011...

  • Page 2: Copyright And Trademarks

    – The contents of this manual may be revised without prior notice. – Fujitsu assumes no liability for damages to third party copyrights or other rights arising from the use of any information in this manual. – No part of this manual may be reproduced in any form without the prior written permission of Fujitsu.
  • Page 3 Before reading this manual For your safety This manual contains important information for safely and correctly using this product. Carefully read the manual before using this product. Pay particular attention to the accompanying manual "Safety notes and other important information" and ensure these safety notes are understood before using the product.
  • Page 4 (hereafter, "high safety use"). Customers should not use this product for high safety use unless measures are in place for ensuring the level of safety demanded of such use. Please consult the sales staff of Fujitsu if intending to use this product for high safety use.
  • Page 5 Only for the Japanese market: Although described in this manual, some sections do not apply to the Japanese market. These options and routines include: – CSS (Customer Self Service) – USB Flash Module (UFM) – Replacing the lithium battery RX600 S5 Operating Manual...
  • Page 6 Operating Manual RX600 S5...

  • Page 7: Table Of Contents

    FCC Class A Compliance Statement ... . . 36 Transporting the server ....37 Notes on installing the server in the rack Environmental protection .
  • Page 8 Indicators on the hot-plug HDD modules ... 68 5.1.2 Rear of server ......69 5.1.2.1 Global Error indicator and CSS indicator .
  • Page 9 No screen display or display drifts ....87 Incorrect date and time Drives reported as "dead" when starting system ..88 Added drive reported as defective ....89 Error message on screen .
  • Page 10 8.3.2 Closing the server ......136 Appendix: server specification ....137 Index .

  • Page 11: Preface

    Preface The scalable PRIMERGY RX600 S5 server is an Intel-based rack server for critical company scenarios, e.g. as database management system for medium or large-sized databases or as a consolidation basis to run an immensely large number of different applications using virtualization technologies.

  • Page 12: Documentation Overview

    Documentation overview Documentation overview More information on your PRIMERGY RX600 S5 can be found in the following documents: – "Quick Start Hardware - PRIMERGY RX600 S5" leaflet " はじめにお読みください -PRIMERGY RX600 S5" for the Japanese market (only included as a printed copy) –...
  • Page 13 Internet. The overview page showing the online documentation available on the Internet can be found using the URL (for EMEA market): http://manuals.ts.fujitsu.com. The PRIMERGY server documentation can be accessed using the Industry standard servers navigation option. For the Japanese market please use the URL: http://primeserver.fujitsu.com/primergy/manual.html.

  • Page 14: Features

    ServerView Suite DVD 2). Your server is equipped with a ServerView Local Service Display, which enables you to identify the type of component affected by the error directly on the server (for more information, see the "ServerView Suite Local Service Concept - LSC"...
  • Page 15 107). Hard disk drives The server can be equipped with up to 8 SAS/SATA HDD modules. Each HDD module can accommodate a SAS/SATA hard disk drive with a 2.5-inch format. The modules are connected to the SAS/SATA backplane wirelessly. This allows HDD modules to be plugged in or pulled out easily.
  • Page 16 Power supply The server has up to four hot-plug power supply units that automatically switch to a mains voltage of 100 - 127 V / 200 - 240 V. This ensures redundant power supply. If one power supply unit is defective, the other(s) then guarantee(s) unimpaired operation.
  • Page 17 "hides" the defective system components. The PDA (Prefailure Detection and Analysis) technology from Fujitsu analyzes and monitors all components that are critical for system reliability. The SAS/SATA controller card supports the RAID levels 0, 1, 1E, 5, 6, 10, 50 and 60 thus increasing system availability and reliability.
  • Page 18 Major functions supported by the iRMC S2 include the following: Browser access via iRMC S2-s own Web server Secure communication (SSH, SSL) Power Management for the managed server (depending on its system status) Power Consumption Management Connecting virtual drives as remote storage...
  • Page 19 Server management is implemented using the ServerView Operations Manager supplied and the PDA (Prefailure Detection and Analysis) technology from Fujitsu. PDA reports the threat of a system error or overload at an early stage, allowing preventive measures to be taken.
  • Page 20 For further information, please refer to the diagnosis LEDs on the hot-plug components (power supply units, fans, expansion cards, HDD modules). The ServerView Update Manager supplied with the Fujitsu utilities supports a fast remote BIOS update via the LAN interface; the BIOS can also be updated locally via USB.
  • Page 21 ServerView Remote Management ServerView Remote Management is the remote management solution from Fujitsu for PRIMERGY servers. ServerView Remote Management and the relevant hardware components integrated on the system board allow remote monitoring and maintenance as well as fast restoration of operation in the event of errors.

  • Page 22: Notational Conventions

    Notational conventions Notational conventions The following notational conventions are used in this manual: indicates commands or menu items. Text in italics "Quotation marks" indicate names of chapters and terms that are being emphasized. describes activities that must be performed in the order Ê...
  • Page 23 Preface Compliance with regulations and standards Product safety and ergonomics Electromagnetic compatibility Interference emissions EN 55022 class A; FCC class A; CNS 13438 class Interference immunity Harmonic current Flicker CE marking to EU directives Environmental conditions ETSI 300 019-2-3 Class 3.1 (T3.1) Noise emission RX600 S5 IEC 60950-1/2 / EN 60950-1/2, UL/CSA 60950-...
  • Page 24 Technical data Dimensions / Weight Rack (W x D x H) Mounting depth rack Height unit rack 19" rackmount Mounting cable depth rack Weight Rack integration kit Ventilation clearance At least 200 mm on the front and rear. Ambient conditions Environment class 3K2 Environment class 2K2 Temperature:...

  • Page 25: Overview Of The Installation Steps

    Overview of the installation steps This chapter contains an overview of the steps necessary to install your server. Links guide you to sections where you can find more detailed information on the individual steps: Ê At first, please take notice of the safety instructions in chapter information"...
  • Page 26 ServerView Installation Manager" on page You will find more information on installing the server remotely or locally in the "ServerView Suite Installation Manager" user’s guide (on the ServerView Suite DVD 2 under Industry Standard Servers - Software - ServerView Suite - Server Installation and Deployment).

  • Page 27: Important Information

    Notes and Regulations" or " 安全上のご注意 ". This device meets the relevant safety regulations for IT equipment. If you have any questions about whether you can install the server in the intended environment, please contact your sales outlet or our customer service team.
  • Page 28 (see "Technical data" on page If the server has been moved from a cold environment, condensation may form both inside and on the outside of the machine. Wait until the server has acclimatized to room temperature and is absolutely dry before starting it up.
  • Page 29 Always connect the server and the attached peripherals to the same power circuit. Otherwise you run the risk of losing data if, for example, the server is still running but a peripheral device (e.g.
  • Page 30 Exception: CSS components can be replaced. The warranty is void if the server is damaged during installation or replacement of system expansions. Only set screen resolutions and refresh rates that are specified in the operating manual for the monitor.
  • Page 31 Important information CAUTION! Install the screw removed during installation/detaching Internal Options in former device/position. To use a screw of the different kind causes a breakdown of equipment. The installation indicated on this note is sometimes changed to the kind of possible options without notice. Batteries CAUTION! Incorrect replacement of batteries may lead to a risk of explosion.
  • Page 32 High humidity and airborne dust levels are to be avoided. Electric shocks and/or server failures may be caused by liquids such as water, or metallic items, such as paper clips, entering a drive.
  • Page 33 Important information Do not contaminate the CD/DVD/BD surface with fingerprints, oil, dust, etc. If dirty, clean with a soft, dry cloth, wiping from the center to the edge. Do not use benzene, thinners, water, record sprays, antistatic agents, or silicone-impregnated cloth. Be careful not to damage the CD/DVD/BD surface.
  • Page 34 Safety instructions Modules with Electrostatic-Sensitive Devices Modules with electrostatic-sensitive devices are identified by the following sticker: Figure 1: ESD label When you handle components fitted with ESDs, you must always observe the following points: Switch off the system and remove the power plugs from the power outlets before installing or removing components with ESDs.

  • Page 35: Energy Star

    The system complies with the requirements of the EC directives 2004/108/EC regarding "Electromagnetic Compatibility" and 2006/95/EC "Low Voltage Directive". This is indicated by the CE marking (CE = Communauté Européenne). RX600 S5 "Cleaning the server" on Operating Manual ENERGY STAR...

  • Page 36: Fcc Class A Compliance Statement

    Consult the dealer or an experienced radio/TV technician for help. Fujitsu is not responsible for any radio or television interference caused by unauthorized modifications of this equipment or the substitution or attachment of connecting cables and equipment other than those specified by Fujitsu. The correction of interferences caused by such unauthorized modification, substitution or attachment will be the responsibility of the user.

  • Page 37: Transporting The Server

    CAUTION! Only transport the server in its original packaging or in packaging that protects it from impacts and jolts. Do not unpack the server until it is at its installation location. If you need to lift or transport the server, ask other people to help you.

  • Page 38: Notes On Installing The Server In The Rack

    (For the Japanese market, please refer to " 安全上の注意およびその 他の重要情報 ".) Never lift the server into the rack using the handles on the front panel. When connecting and disconnecting cables, observe the relevant instructions in the "Important Information" chapter of the technical manual for the corresponding rack.

  • Page 39: Environmental Protection

    Important information Environmental protection Environmentally-friendly product design and development This product has been designed in accordance with the Fujitsu standard for "environmentally friendly product design and development". This means that key factors such as durability, selection and labeling of materials, emissions, packaging, ease of dismantling and recycling have been taken into account.
  • Page 40 Details regarding the return and recycling of devices and consumables within Europe can also be found in the "Returning used devices" manual, via your local Fujitsu branch or from our recycling center in Paderborn: Fujitsu Technology Solutions Recycling Center D-33106 Paderborn Tel.

  • Page 41: Hardware Installation

    Do not expose the server to extreme environmental conditions (see "Ambient conditions" on page humidity and heat. Make sure that the server is acclimatized for the time indicated in this table before putting it into operation. Temperature difference (°C) Table 1: Acclimatization time In the table "Acclimatization...

  • Page 42: Unpacking The Server

    (For the Japanese market, please refer to " 安全上の注意 ".) Do not unpack the server until it is at its installation location. Ê Transport the server to the place where you want to set it up. Ê Unpack all individual parts.

  • Page 43: Rack Installation/Removal Of Server

    4.2.1 Rack system requirements The rack systems from Fujitsu PRIMECENTER Rack, DataCenter Rack and 19-inch standard rack (for the Japanese market) support the installation of PRIMERGY servers. Installation in most current rack systems from other manufacturers (3rd party racks) is also supported.
  • Page 44 Rack installation/removal of server For PRIMECENTER Racks and DataCenter Racks: The mounting of the rails in the different racks is described in the next sections. Installation of the cable management is described in detail in the Technical Manual for the respective rack.
  • Page 45 Hardware installation Rack installation/removal of server +/- 1,6mm Figure 2: Mechanical requirements Operating Manual RX600 S5...

  • Page 46: Installation In Primecenter/Datacenter Rack

    Rack installation/removal of server – You must ensure that the safety mechanisms on the server, e.g. stoppers or retaining systems, are functioning correctly. – The shape of the rack support uprights must ensure that the support systems can be bolted to the front.
  • Page 47 Ê Position the support bracket at the corresponding height on the rear left support upright, (place knob in the corresponding hole) (1) and secure it with the two supplied M5 centering fixtures (2). RX600 S5 Rack installation/removal of server Operating Manual...
  • Page 48 Rack installation/removal of server Installing the support systems Figure 4: Fit the left support system in the PRIMECENTER/DataCenter rack Ê Position the left-hand support system in the support bracket (insert retaining bolts) - see (1). Ê Clamp the left-hand support system (2) between the front left support upright and the support bracket by pressing the support system together, positioning it on the front support upright and releasing it again.
  • Page 49 Ê Fit the PRIMECENTER/DataCenter rack cable management as described in the Technical Manual for the corresponding rack. Figure 5: Position of the cage nuts Ê Fit the cage nuts for securing the server in the corresponding catches on the right and left support uprights. Ê Insert the server (see...
  • Page 50 Inserting the server For the Japanese market: Refer to the "Rack Mounting Guide" for more detailed explanation and for other support systems. Figure 6: Inserting the server (a) Figure 7: Inserting the server (b) Operating Manual Hardware installation RX600 S5...

  • Page 51: Installation In 3Rd Party Racks

    4.2.3 Installation in 3rd party racks The support systems from Fujitsu are suitable for use in any 3rd party racks for standard servers (installation depth 714 - 785 mm) without restrictions. Ê Refer to the manual from the rack manufacturer for details of the mechanical installation and the climatic conditions.
  • Page 52 Ê Mount the server (see cables as described in the original manual of the rack. CAUTION! Ensure that the safety lock has been inserted before the server is inserted (see figure 4 on page Racks with installation depth smaller/greater than 735 mm The support systems can be used for installation depths of 714 - 785 mm.

  • Page 53: Connecting Devices To The Server

    Hardware installation Connecting devices to the server The connectors for external devices are on the front and rear of the server. The additional connectors available on your server depend on the expansion cards installed (e.g. optional SAS connector). Some of the devices that can be connected may require special software, e.g.
  • Page 54 Connect keyboard and mouse via USB. There are no separate PS/2 connectors for them. Connecting the monitor Ê Plug the data cable for the monitor into the video connector on the server. Alternatively, the video connector at the front or the rear of the server can be used.

  • Page 55: Connecting The Server To The Mains

    CAUTION! The server is automatically set to a mains voltage in the range 100 - 127 V / 200 - 240 V. You may only operate the server if its rated voltage range corresponds to the local mains voltage. 4.4.1...
  • Page 56 3+1 (4 PSUs) Table 3: Maximum DC Loading Requirements Three power supply modules are capable of handling the maximum power requirements for a fully configured PRIMERGY RX600 S5 server system, which include the following: Four processors 1024 GB of memory...
  • Page 57 Table 4: System power supply configuration and system load limits Installation in PRIMECENTER/Datacenter rack Please follow the installation requirements for connection to the mains described in the rack manuals. RX600 S5 Connecting the server to the mains AC non-redundant systems (connected to 1 AC source) Installation Max. DC...
  • Page 58 Connecting the server to the mains Installation in 3 party racks without main connection according to IEC309 or outside of racks 1. These additional installation requirements ONLY apply when 4 PSUs are connected to a high line voltages (220V or higher).
  • Page 59 Hardware installation Connecting the server to the mains photo shows installation of a protective earth conductor Figure 10: Installing a protective earth conductor Ê Loosen the first nut and remove it (1). Ê Plug the protective earth conductor onto the bolt (2).

  • Page 60: Connecting The Power Cord

    4.4.2 Connecting the power cord Ê Connect the power cord to the server power supply unit. Ê Connect the mains plug to a grounded mains outlet in the in-house power supply network or a power outlet of the socket strip in the rack (see Technical Manual for the rack).

  • Page 61: Notes On Connecting/Disconnecting Cables

    Ê Disconnect all power plugs from the properly grounded power outlets. Ê Unplug all data communication cables from the utility sockets. Ê Disconnect the relevant cables from the server and all the peripherals. For connecting or disconnecting LAN cables, the server need not to be powered off.
  • Page 62 Notes on connecting/disconnecting cables Hardware installation Operating Manual RX600 S5...

  • Page 63: Starting Up And Operation

    Starting up and operation CAUTION! Follow the safety instructions in chapter page Control elements and indicators 5.1.1 Front of server Figure 12: Front - overall view ID card ServerView Local Service Display Optical drive activity indicator Control panel (for details see...
  • Page 64 Control elements and indicators Figure 13: Front - detailed view: control panel ID indicator CSS indicator Global Error indicator Hard disk activity indicator Power-on indicator ID card You can pull out the ID card (see back in again. The ID card contains various system information, such as product name, serial number and order number;...

  • Page 65: Control Elements

    Starting up and operation 5.1.1.1 Control elements ID button ID LED lights up (blue) on the front and on the rear of the server when the ID button is pressed. Both ID indicators are synchronized. On/Off button When the system is switched off, it can be switched on again by pressing the On/Off button.

  • Page 66: Indicators On The Control Panel

    – when the server is switched ON. Flashes green when the system is in standby mode. Lights up orange when the server is in shutdown mode (operating system shutdown) or is switched off. Lights up yellow during power on delay.

  • Page 67: Indicators On The Accessible Drives/Components

    ServerView Local Service Display You can use the slot mechanism to pull out the ServerView Local Service Display from the server housing and read the information. Press the front of the module to release the lock. You can also pivot the ServerView Local Service Display down by an angle of 120°...

  • Page 68: Indicators On The Hot-Plug Hdd Modules

    Control elements and indicators 5.1.1.4 Indicators on the hot-plug HDD modules Figure 14: Indicators on a hot-plug HDD module HDD BUSY (green) – Lights up: HDD in active phase (drive active, drive being accessed) – Does not light: HDD inactive (drive inactive) HDD FAULT (orange) –...

  • Page 69: Rear Of Server

    Starting up and operation 5.1.2 Rear of server 5.1.2.1 Global Error indicator and CSS indicator Figure 15: Global Error indicator and CSS indicator CSS indicator (yellow) – Lights up yellow if a prefailure event was detected for a CSS component that you can fix yourself (for reasons of precaution) with the CSS concept.
  • Page 70 Control elements and indicators Global Error indicator (orange) – Lights up orange if a prefailure event has been detected that requires (precautionary) service intervention. – Flashes orange if an error was detected that requires service intervention. – Does not light up if there is no critical event. If the event is still acute after a power failure, the indicator is activated after the restart.

  • Page 71: Id Indicator And Button

    Starting up and operation 5.1.2.2 ID indicator and button Figure 16: ID indicator ID indicator (blue) Lights up blue when the system has been selected by pressing the ID button. To deactivate, press the ID button again. The ID indicator can also be activated via the ServerView Operations Manager and the iRMC S2 Web interface and its status reported to the ServerView Operations Manager and the iRMC S2.

  • Page 72: Indicators On The Connector Panel (Lan Indicators)

    Control elements and indicators 5.1.2.3 Indicators on the connector panel (LAN indicators) Figure 17: LAN indicators LAN speed Steady yellow signal in the event of a LAN transfer rate (system LAN/ of 1 Gbit/s. shared LAN) Steady green signal in the event of a LAN transfer rate of 100 Mbit/s.

  • Page 73: Indicators On The Hot-Plug Power Supply Units

    Starting up and operation Steady green signal when a LAN connection exists. link/transfer Remains dark when no LAN connection exists. (management LAN) Flashes green when LAN transfer takes place. 5.1.2.4 Indicators on the hot-plug power supply units Figure 18: Indicators on the power supply units DC power Lights up green when PSU is running.
  • Page 74 Control elements and indicators Starting up and operation In normal server operation, LED 1 and 3 light up permanently, LED 2 does not light up. As soon as LED 2 indicates a fault by lighting up, the affected power supply unit should be replaced as soon as possible. This can be done during operation (see "Hot-plug power supply units"...

  • Page 75: Switching The Server On And Off

    To completely disconnect it from the mains voltage, remove the power plug(s) from the socket(s). Do not move, strike, or shake the server when it is turned on. This can damage the hard disk in the server and cause data loss.
  • Page 76 On/Off button for at least four seconds and/or send a corresponding control signal. Other On/Off options Besides the On/Off button, the server can be switched ON and OFF in the following ways: – Timer-controlled switch-on/off Using the ServerView Operations Manager or iRMC S2, you can configure that the server is switched on/off controlled by timer.
  • Page 77 There is a risk that data may be lost. – iRMC S2 iRMC S2 offers various options for switching the server on and off, e.g. via the Power On Off page of the iRMC S2 Web interface. CAUTION when turning the power off (Windows Server 2008 or Windows Server 2003)! The operation of the power switch can be specified as "Do Nothing", "Ask...

  • Page 78: Configuring The Server

    Configuring the server Configuring the server This section contains information about configuring the server and installing the operating system. Make sure that the energy saving functions are disabled in the BIOS Setup during server operation. 5.3.1 Configuring the SAS/SATA RAID controller card The server comes with a SAS/SATA RAID controller with "MegaRAID...

  • Page 79: Configuring The Server And Installing The Operating System With The Serverview Installation Manager

    To find out how to operate the ServerView Installation Manager and for further information, refer to the associated manual. If you are using the ServerView Installation Manager, you can skip the following section on how to configure the server and install the operating system. Continue from section "Cleaning the server" on page...

  • Page 80: Configuring The Server And Installing The Operating System Without The Serverview Installation Manager

    Configuring the server 5.3.3 Configuring the server and installing the operating system without the ServerView Installation Manager Installing the operating system Ê Insert the CD/DVD/BD for the operating system you want to install. Ê Reboot the server. Ê Follow the instructions on screen and in the manual for the operating system.

  • Page 81: Cleaning The Server

    Clean the keyboard and the mouse with a disinfecting cloth. Wipe the server and monitor casing with a dry cloth. If particularly dirty, use a cloth that has been moistened in a mild domestic detergent and then carefully wrung out.
  • Page 82 Cleaning the server Starting up and operation Operating Manual RX600 S5...

  • Page 83: Property And Data Protection

    Property and data protection Mechanical access protection The lockable rack door protects the server against unauthorized access. BIOS Setup security functions The Security menu in BIOS Setup offers various options for protecting your data from unauthorized access. For example, you can assign passwords for users and administrators.
  • Page 84 BIOS Setup security functions Property and data protection Operating Manual RX600 S5...

  • Page 85: Troubleshooting And Tips

    Power-on indicator remains unlit The power-on indicator remains dark after you switch on your device. Power cable incorrectly connected Ê Make sure that the power cable(s) is/are correctly connected to the server and the grounded power outlet(s). Power supply overloaded Ê...

  • Page 86: Server Switches Itself Off

    Ê Check whether the power cable is properly connected to the monitor and to the grounded power outlet. Ê Check whether the monitor cable is properly connected to the server and monitor (if it is plugged in with a connector). If a separate graphics card is installed in the server, then the monitor cable must be connected to the graphics card.

  • Page 87: Flickering Stripes On Monitor Screen

    Troubleshooting and tips Flickering stripes on monitor screen CAUTION! Switch off the server immediately. Risk of damaging the server. Monitor does not support the set horizontal frequency Ê Find out which horizontal frequency your monitor screen supports. You will find the horizontal frequency (also known as line frequency or horizontal deflection frequency) in the documentation for your monitor.

  • Page 88: Incorrect Date And Time

    If the date and time are still wrong after the server has been switched off and back on again, replace the lithium battery (for a description refer to the Technical Manual for the D2870 system board) or contact our customer service team.

  • Page 89: Added Drive Reported As Defective

    Troubleshooting and tips Added drive reported as defective RAID controller is not configured for this drive The drive was probably installed when the system was switched off. Ê Reconfigure the RAID controller for the drive using the corresponding utility. Information is provided in the documentation for the RAID controller. Ê...
  • Page 90 Error message on screen Troubleshooting and tips Operating Manual RX600 S5...

  • Page 91: Css Components

    Do not damage or modify internal cables or devices.Doing so may cause a device failure, fire, or electric shock. Devices inside the server remain hot after shutdown. Wait for a while after shutdown before installing or removing internal options. The circuit boards and soldered parts of internal options are exposed and can be damaged by static electricity.
  • Page 92 In the PRIMERGY RX600 S5 server, the following components are considered to be CSS components: – Hot-plug components – Hot-plug power supply units (see – Hot-plug fans (see – Hot-plug HDD modules (see – Hot-plug memory boards (see – Expansion cards in hot-plug PCIe slots (slots 6 & 7 only, see You can expand or replace the hot-plug components during operation.

  • Page 93: Hot-Plug Components

    8.1.1 Hot-plug power supply units The server must have at least two hot-plug power supply units (PSUs) to ensure redundant power supply. If one power supply unit fails, the other unit ensures that the operation can continue uninterrupted. The defective power supply unit can be replaced during operation (hot-plug).

  • Page 94: Replacing A Hot-Plug Power Supply Unit

    CAUTION! When replacing a non-defective hot-plug power supply unit in a non- redundant configuration, the server must be switched off first. Ê Remove the power cord from the cable clamp. You can losen the cable clamp by opening the small locking lever.

  • Page 95: Adding A Hot-Plug Power Supply Unit

    CSS components Ê Slide the new power supply unit into the empty slot until it clicks into place. Make sure that the new power supply unit engages correctly in the mounting location and is locked in position. This is the only way to prevent the power supply unit from sliding out of its mountings and being damaged during transportation.
  • Page 96 Hot-plug components Ê Thread the cable through the cable clamp (see Ê Pull the cable clamp tight to secure the power cord. Ê Connect the newly installed power supply unit to the mains. If everything is functioning correctly, the green LEDs 1 and 3 (see on the hot-plug power supply units"...

  • Page 97: Hot-Plug Fans

    A possible fan failure is reported by the CSS indicator lighting up on the front and rear of the server as well as by the indicator on the fan module in question. The fan failure is also displayed on the ServerView Local Service Display (see the "Customer Self Service (CSS)"...

  • Page 98: Replacing A Defective Fan

    Ê Insert the new fan module in the empty slot until it clicks into place. To make sure the fan has engaged press again. The new fan module is tested by Server Management. The LED then either does not light at all (fan is ok) or lights up (fan is not ok).

  • Page 99: Adding New Fans

    Ê Insert the new fan modules in the empty slots until they engage. To make sure the fan has engaged press again. The new fan module is tested by Server Management. The LED then either does not light at all (fan is OK) or lights up (fan is not ok).

  • Page 100: Hot-Plug Hdd Modules

    8.1.3 Hot-plug HDD modules The hard disk drives which can be ordered for the PRIMERGY RX600 S5 are supplied already mounted in an installation frame so that defective hard disk drives can be replaced and new hard disk drives can be added during operation.
  • Page 101 CSS components Do not use the unit in extremely hot or cold locations, or locations with extreme temperature changes. Never attempt to disassemble the hard disk unit. Handling drives and HDD/SSD modules Drives incorporated in the HDD/SSD modules are highly sensitive electromagnetic devices and must be handled with great care.

  • Page 102: Hdd/Ssd Module And Dummy Module

    Hot-plug components 8.1.3.1 HDD/SSD module and dummy module Figure 23: 2.5-inch HDD module and dummy module Dummy module Tabs for unlocking the dummy module HDD module (installation frame with hard disk drive installed) Indicators HDD Busy (LED green) HDD Fault (LED orange) For description see section page Handle for locking and unlocking the HDD module...

  • Page 103: Removing/Installing The Dummy Module

    CSS components 8.1.3.2 Removing/installing the dummy module Free slots are provided with dummy modules. Remove the dummy module before installing an additional HDD module. Figure 24: Removing/installing the 2.5-inch dummy module Ê Press both tabs on the dummy module together until the locking mechanism disengages (1).

  • Page 104: Installing The Hdd Module

    Hot-plug components 8.1.3.3 Installing the HDD module Figure 25: Unlocking the 2.5-inch HDD module Ê Release the locking mechanism as follows: 1. Press the two green tabs of the locking lever together (1). 2. Push the handle of the HDD module fully in the direction of the arrow (2). The HDD module is now unlocked.

  • Page 105: Removing The Hdd Module

    CSS components Figure 26: Installing the 2.5-inch HDD module Ê Carefully push the HDD module into the empty slot (1) until it stops. Ê Push the handle completely (2) in the direction of the arrow until the locking mechanism engages. 8.1.3.4 Removing the HDD module CAUTION!
  • Page 106 Hot-plug components Ê If you want to remove an HDD module that is not defective, the drive must be first set to "Offline" via the software (RAID controller configuration software). Ê Unlock the HDD module as described in section on page 104.

  • Page 107: Hot-Plug Expansion Cards

    Each slot in the server must have either an expansion card or a dummy module. A dummy module comprises a retaining plate with an attached removal tool.
  • Page 108 Hot-plug components Figure 27: PCI slots with and without hot-plug functionality Item Slot # Only slots 6 and 7 are hot-plug slots. These slots are marked with a hot- plug label (see arrows in Description PCIe slot 10 PCIe slot 9 PCIe slot 8 PCIe slot 7, hot-plug PCIe slot 6, hot-plug...

  • Page 109: Identifying The Defective Css Component

    CSS components 8.1.4.1 Identifying the defective CSS component Ê Open the server (see Ê Press the Indicate CSS button on the system board (see Technical Manual for the system board D2870 on the ServerView Suite DVD 2). The PRIMERGY Diagnostic LED of the defective CSS component lights up orange, thereby indicating which CSS component on the system board must be replaced (see Technical Manual for details).
  • Page 110 Hot-plug components The expansion card is now mechanically unlocked. Ê Hold the removal tool by the green handle and pull it out of the PCI slot together with the expansion card (3). Do not pull on the expansion card itself. Removing an expansion card from the removal tool CAUTION! When removing the expansion card from the removal tool, pay particular...
  • Page 111 CSS components Removing engaging hooks Figure 30: Removing engaging hooks from the removal tool Ê Push the green engaging hooks down in the direction of the arrows (1) until they disengage from the removal tool. Ê Remove the engaging hooks (2) and keep them in a safe place. Ê...

  • Page 112: Removing A Dummy Module

    Before inserting an additional hot-plug expansion card, you will first have to remove the dummy module from its slot. Ê Open the server (see Ê Remove the dummy module in the same way as a PCI board (see on page 110).

  • Page 113: Installing A Hot-Plug Expansion Card

    CSS components Ê Take the retaining plate out and put it aside. Keep the retaining plate for future use. Ê Push the engaging hooks down until they disengage from the removal tool (see figure 30 on page 8.1.4.4 Installing a hot-plug expansion card Inserting an expansion card in the removal tool Figure 32: Inserting the new expansion card in the removal tool Ê...
  • Page 114 The slot is now powered on. If the light-pipe switch continues to flash, an error has occurred. Remove the expansion card and repeat the procedure as described above. Ê Close the server (see figure 28 on page "Opening/Closing the server" on page Operating Manual CSS components 109) by folding it down.

  • Page 115: Hot-Plug Memory Boards

    A possible memory module fault is reported by the CSS indicator lighting up on the front and rear of the server or displayed on the ServerView Local Service Display (for more information about the behavior of the Local Service Display, see chapter "Starting up and operation"...

  • Page 116: Identifying The Defective Memory

    Ê Wait until ATTN LED (2) and Power LED (3) are turned off. Ê Remove the memory board as described in in question" on page 117 figure 33) when the server is open. "Opening the server" on page Mirror LED (green) 8x DIMM Fault LED (orange) "Removing the memory board...

  • Page 117: Removing The Memory Board In Question

    CSS components 8.1.5.2 Removing the memory board in question Figure 34: Example: Removing memory board Ê Unlock the memory board in question by pressing the green locks (1). The levers on both sides will be released. Ê Swivel the levers in an upright position and lift the memory board up and out using its levers simultaneously (2).
  • Page 118 For more information on the individual storage modes, see the Technical Manual "System Board D2870 for PRIMERGY RX600 S5". Figure 35: Removing a memory module Ê Press the holders on either side of the memory slot concerned outward (1).

  • Page 119: Installing A New Memory Module

    CSS components 8.1.5.4 Installing a new memory module CAUTION! Observe the safety information concerning memory modules in "Removing a defective memory module" on page Figure 36: Installing a memory module Ê Carefully press the memory module into the slot (1) until the fastening tabs on both sides of it engage (2).

  • Page 120: Adding A Memory Board

    Hot-plug components Ê Press the ATTN button. Ê Wait until the ATTN LED is turned off. Ê Close the server as described in 8.1.5.6 Adding a memory board To add memory boards during operation, proceed as follows: Ê Open the server (see Ê...

  • Page 121: Non-Hot-Plug Components

    The circuit boards and soldered parts of internal options are exposed and can be damaged by static electricity. Before handling them, first touch a metal part on the server to discharge static electricity from your body. Do not touch the circuitry on boards and soldered parts. Hold the metallic areas or the edge of the circuit boards.

  • Page 122: Identifying The Defective Css Component

    Non-hot-plug components 8.2.1 Identifying the defective CSS component Ê Open the server (see Ê Press the Indicate CSS button on the system board (see Technical Manual for the system board D2870 on the ServerView Suite DVD 2). The PRIMERGY Diagnostic LED of the defective CSS component lights up orange, thereby indicating which CSS component on the system board must be replaced (see Technical Manual for details).
  • Page 123 CSS components Removing an expansion card from the removal tool CAUTION! When removing the expansion card from the removal tool, pay particular attention to the engaging hooks that fasten the board to the removal tool (see figure 39). Do not lift them by more than approx. 1 mm, in other words only as far until the expansion card is released.
  • Page 124 Non-hot-plug components Removing engaging hooks Figure 40: Removing engaging hooks from the removal tool Ê Push the green engaging hooks down in the direction of the arrow (1) until they disengage from the removal tool. Ê Remove the engaging hooks (2) and keep them in a safe place. Ê...

  • Page 125: Installing A Non-Hot-Plug Expansion Card

    Ê Insert the expansion card fastened to the removal tool in the PCI slot. Ê Close the slot lock (see that the slot lock engages. Ê If necessary, connect the cables on the expansion card. Ê Close the server (see RX600 S5 figure 28 on page 109) by folding it down. Make sure "Opening/Closing the server"...

  • Page 126: Replacing Sfp+ Transceiver Modules

    Non-hot-plug components 8.2.3 Replacing SFP+ transceiver modules For Fiber Channel over Ethernet (FCoE) configurations, the ethernet server adapter is equipped with one or two SFP+ (small form-factor pluggable) transceiver modules. In order to remove, install or replace an SFP+ transceiver module, please proceed as follows.
  • Page 127 CSS components Non-hot-plug components Figure 43: Unlatching the locking bail Ê Carefully unlatch and fold down the locking bail on the SFP+ transceiver module to eject the transceiver from the socket connector. Operating Manual RX600 S5...
  • Page 128 Non-hot-plug components Figure 44: Removing the SFP+ transceiver Ê Pull the SFP+ transceiver module out of its socket connector. Ê Reattach the protective optical port plug to the transceiver optical bores. Place the removed SFP+ transceiver module in an antistatic bag or other protective environment.

  • Page 129: Installing Sfp+ Transceiver Modules

    CSS components 8.2.3.2 Installing SFP+ transceiver modules Figure 45: Removing the protective optical port plug Ê Remove the SFP+ transceiver module from its protective packaging. Ê Remove the optical port plug from the new / additional SFP+ transceiver module. CAUTION! –...
  • Page 130 Non-hot-plug components Figure 46: Unlatching the locking bail Ê Carefully unlatch and fold down the locking bail on the SFP+ transceiver module. Figure 47: Inserting the SFP+ transreiver Ê Insert and slide the SFP+ transceiver module into the socket connector as far as it will go.
  • Page 131 CSS components Non-hot-plug components Figure 48: Latching the locking bail Ê Carefully fold up and latch the locking bail. Operating Manual RX600 S5...
  • Page 132 Non-hot-plug components Figure 49: Attaching the protective optical port plug Ê If the SFP+ transceiver module is not immediately connected to an LC connector, attach the protective optical port plug to the transceiver optical bores. Operating Manual CSS components RX600 S5...
  • Page 133 CSS components Non-hot-plug components Figure 50: Installing the secondary SFP+ transceiver module Ê If applicable, install the secondary SFP+ transceiver module accordingly. Operating Manual RX600 S5...

  • Page 134: Opening/Closing The Server

    5 minutes. Use the anti-tilt plate to prevent the rack from tipping when installing the rack. Pulling the server out of the rack without having installed the anti-tilt plate may cause the rack to tip over.
  • Page 135 CSS components Opening/Closing the server Figure 51: Opening the server Ê Loosen the little screw (see circle in figure above) and put it on a safe place. Ê Push the two green touchpoints on the cover and move the cover for approximately 2 cm backwards.

  • Page 136: Closing The Server

    Figure 52: Placing the housing cover – Place the housing cover onto the server such that it projects approx. 2 cm at the back (see circle in figure above). – Push the housing cover as far as possible in the direction of the arrow.

  • Page 137: Appendix: Server Specification

    Appendix: server specification This section explains the specifications for the server. The specifications for this server are liable to be updated without any notice. Please be forewarned. System Board System board type Chipset Processor Processor quantity and type Processor notes...
  • Page 138 PCI-Express Gen2 x8 PCI-Express Gen2 x16 1 x full height (3/4 length) PCI-Express x4 (mech. x8) Appendix: server specification 6 x USB 2.0 (3x front, 2x rear, 1x internal) 2 x VGA (1x front, 1x rear) 2 x serial RS-232-C...
  • Page 139 Appendix: server specification Drive bays Hard disk bay configuration Accessible drive bays Notes accessible drives all possible options described in relevant system General system information Number of fans Fan configuration Fan notes Operating Panel Operating buttons Status LEDs Service display...
  • Page 140 Operating ambient temperature Operating relative humidity Exhaust air volume Appendix: server specification up to 46 kg Weight may vary depending on actual configuration Rack mounting kit as option (standard for the japanese market) 482.6 mm (Bezel) / 445 mm (Body) x 770 x 176 mm...
  • Page 141 Appendix: server specification Electrical values Power supply configuration Max. output of single power supply Hot-plug power supply redundancy Rated voltage range Rated frequency range Active power min. (typical config) Active power max. (typical config) Rated active power max. 3360 W (14 A x 240 V) Apparent power max.
  • Page 142 Appendix: server specification Operating Manual RX600 S5...

  • Page 143: Index

    Index 3rd party rack installing in requirements accessible drives DVD 15, magnetic tape acclimatization time 41, Advanced Video Redirection ambient conditions ASR&R automatic server reconfiguration & restart batteries BIOS security functions update cables connecting disconnecting CE marking 23, chipkill Class A Compliance Statement...
  • Page 144 fault...
  • Page 145 NMI button 64, noise level notational conventions On/Off button on/off button operating system, installing operation configuring the server server switch on/off optical drive indicator overload packaging 39, PCI slots dummy module expansion cards, replacing PDA 17,...
  • Page 146 ServerStart ServerView Installation Manager 20, ServerView Local Service Display 15, ServerView Operations Manager supported functions ServerView Remote Management service service LAN connector SFP+ transceiver module installation removal start-up configuring the server switching on the server support Operating Manual RX600 S5...
  • Page 147 USB connector USB connectors...
  • Page 148 Index Operating Manual RX600 S5...

Table of Contents
