OPERATION

3.1 Modes of Operation

FIGURE 6.

Page 12

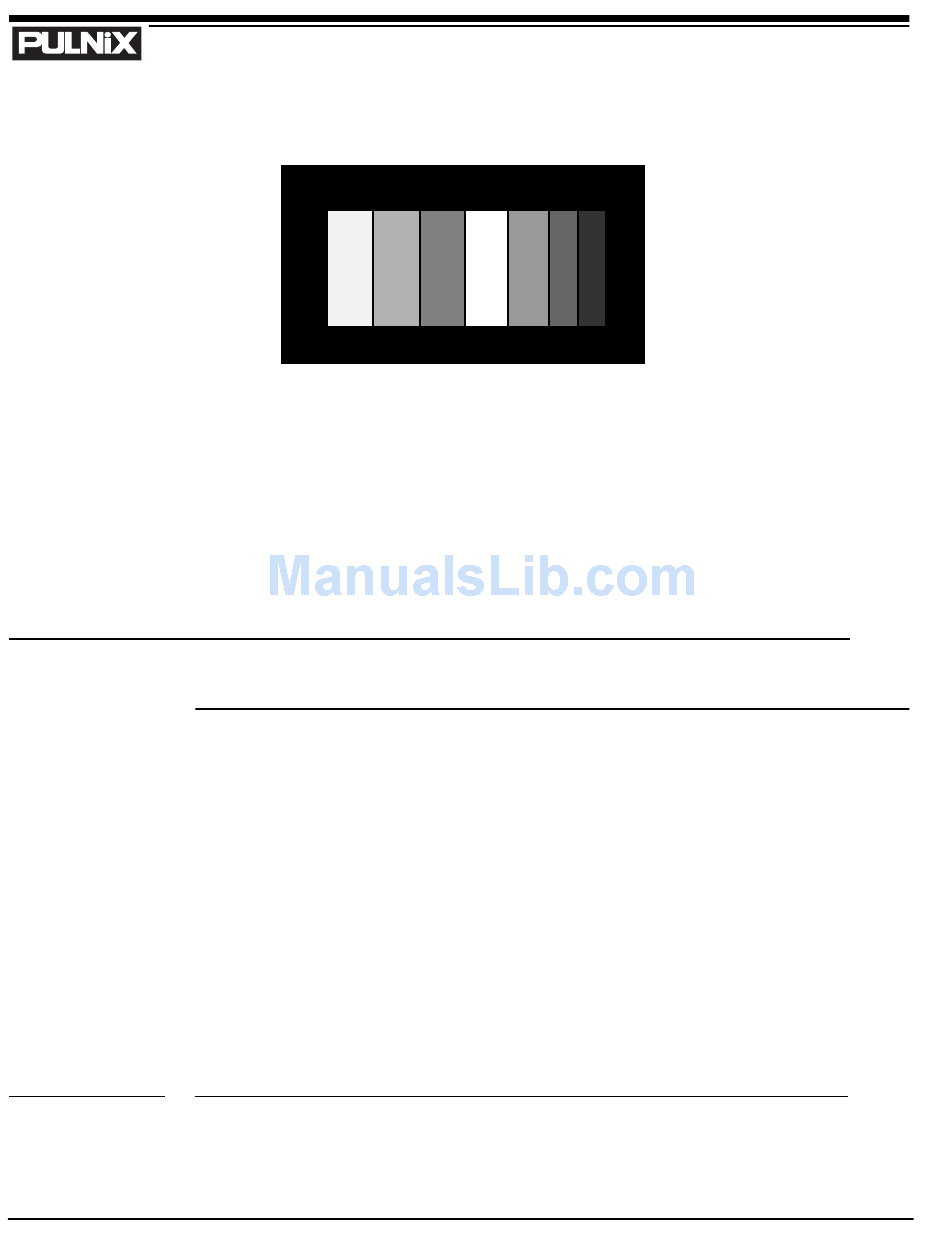

2.3.1 (c) Color Bar Chart for Color Adjustment
YL
2.3.1 (d) Signal Adjustment
Vector Scope
Waveform monitor
Oscilloscope

3.1.1 Shutter Control Functions

3.1.1 (a) Electronic Shutter Control
The capability to externally vary the electronic shutter rate from 1/60 sec. to 1/10,000 sec. is a standard
feature of the TMC-7DSP/TMC-6DSP camera. The TMC-7DSP/TMC-6DSP camera has a substrate
drain type shutter mechanism which results in a superb picture at various speeds with smearing.
Electronic shuttering eliminates the need for costly and distracting strobe lights on high speed assembly
or inspection lines.
3.1.1 (b) Auto Shutter Mode
Auto shutter (electronic iris control) is available by selecting the SW4 (up) on the rear panel, or by
selecting externally via a PC (see Section 4.2.2, "Shutter Mode Control," on page 20).

Shutter Control Settings

G
CY MG R
W
B
TMC-7DSP/TMC-6DSP Color CCD Camera
OPERATION
