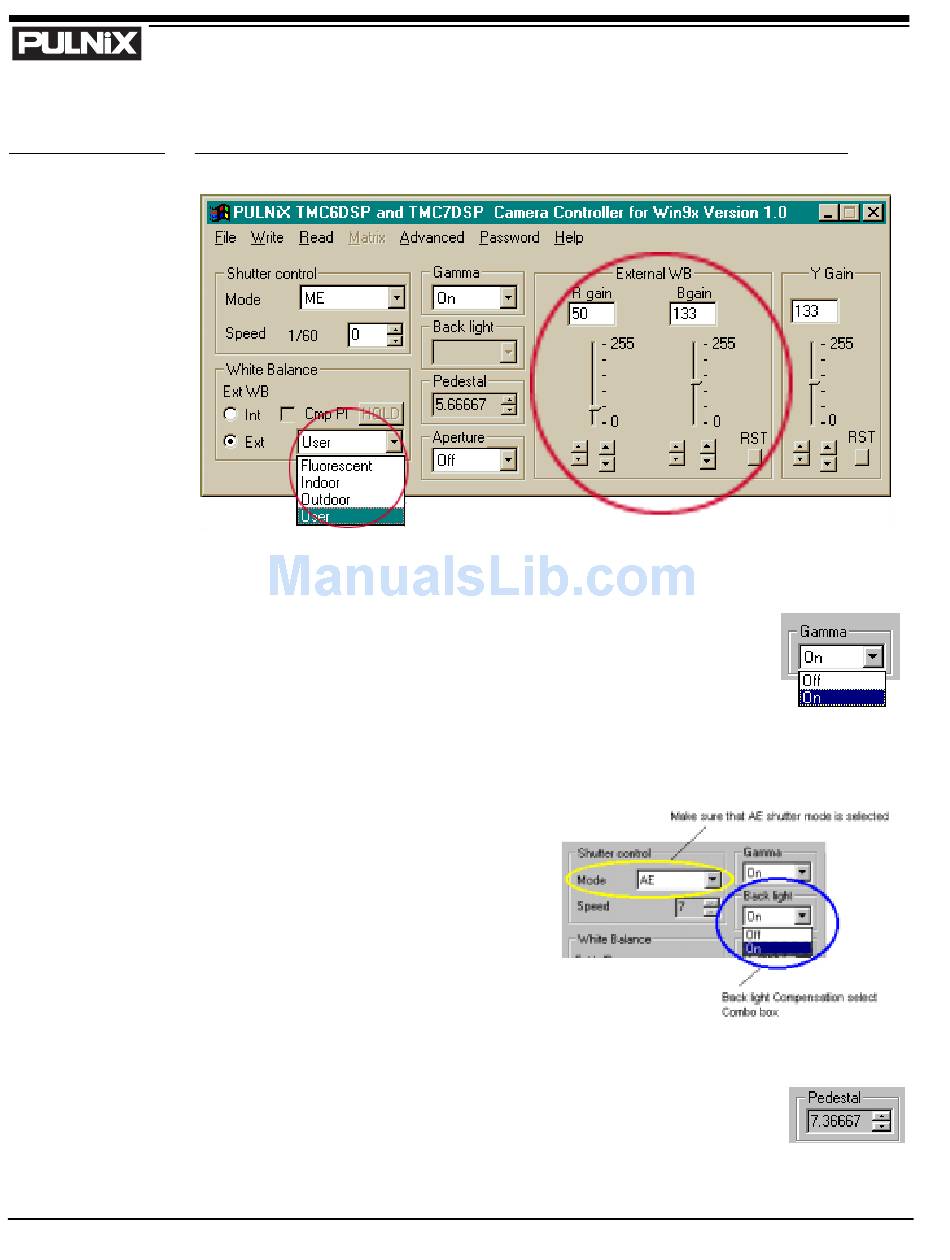

FIGURE 12.
Page 22
Setting Values in "User" External White Balance Mode

4.2.4 Gamma Control

Gamma correction can be switched on and off by using the Gamma Control Select
Combo box (right).

4.2.5 Back Light Compensation Control

Back light compensation can be switched on
or off by using the Back Light Compensation
Select Combo box (right). Note that the back
light compensation feature is only enabled
when AE (auto exposure) shutter mode is
selected.

4.2.6 Pedestal Control

Pedestal value is configurable from 0 to 8.5 (IRE) by using the arrow up/down keys
in the Pedestal box (right). Resolution is 4-bit (16 step). Default pedestal is set at
7.367 (IRE).
