FIGURE 15.
FIGURE 16.
Page 30

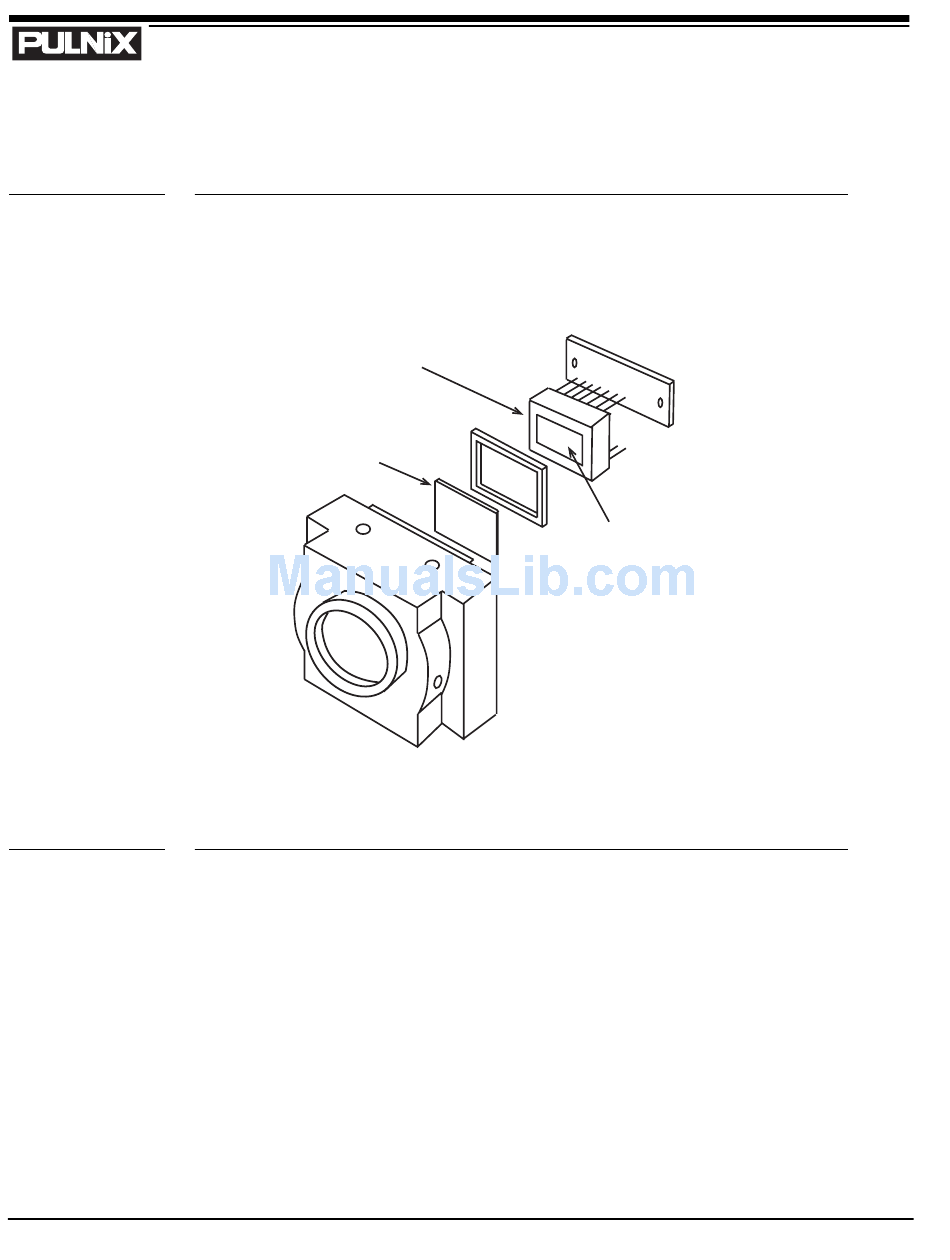

6.1.3 Glass Specifications
Camera Front End - Glass Specifications
CCD
Glass Cover
6.1.4 C-Mount Specifications
C-Mount
The Flange Back Length of the CS-Mount is 12.5mm versus 17.526 of the C-Mount. The shorter Flange
Back Length of the "CS-Mount" allows room for the stripe filter incorporated in the color camera.
Additionally, the shorter Flange Back Length allows for reduction of the effective diameter of the first
lens and reduces the number of lens elements. The common C-Mount lens is completely compatible
with a CS-Mount camera when a 5mm extension ring is inserted between the lens and the camera.
CCD Glass (BK-7) 0.75mm thickness
Refractive Index = 1.5
Glass Cover (BD-65) 1.0mm thickness
Refractive Index = 1.51
CCD Glass
TMC-7DSP/TMC-6DSP Color CCD Camera
APPENDIX
