FIGURE 13.
Page 24
4.2.10 (a) Writing the Current Setting onto the Hard Disk as a File

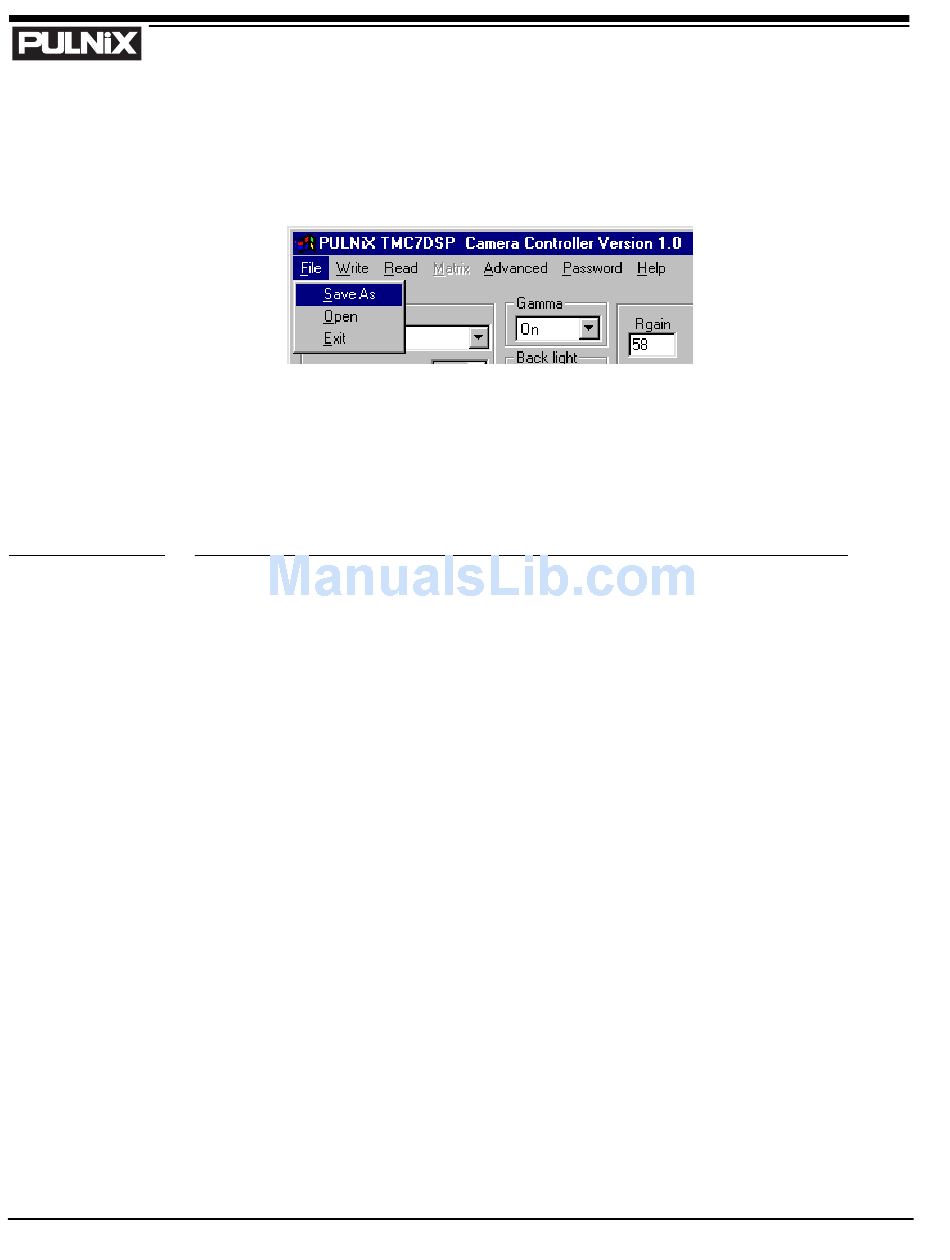

TMCDSP allows you to save your current setting as a text file on your PC's hard disk. From the menu
bar, select "File" -> "Save As" (below).
The current setting is saved in ASCII format. An example is shown below (Figure 13, "ASCII Text
Format Example"). This text file can be modified or edited using any type of text editor tool. Character
'#' represents the start of a comment. All parameters are case sensitive and have a strict range of
variable. Please make sure that you have correctly modified the setting and set valid data before loading
the modified data file.
ASCII Text Format Example
AE
Auto
INT WB
Off
On
On
7.36667
Off
134
0.25197
0.13386
-0.37500
-0.06250
#Shutter Mode
#Shutter Speed
#White Balance
#Complete Pullin: 0: OFF
#Gamma selection
#Backlight selection
#Pedestal setup
#Aperture On Off
#Y Gain
#RY Gain
#BY Gain
#FY Hue
#BY Hue
SOFTWARE INSTRUCTIONS
1: ON
