OPERATION

3 OPERATION

3.1 Modes of Operation

FIGURE 3.
FIGURE 4.
TM-200 / TM-300 Miniature CCD Camera

3.1.1 External Switches

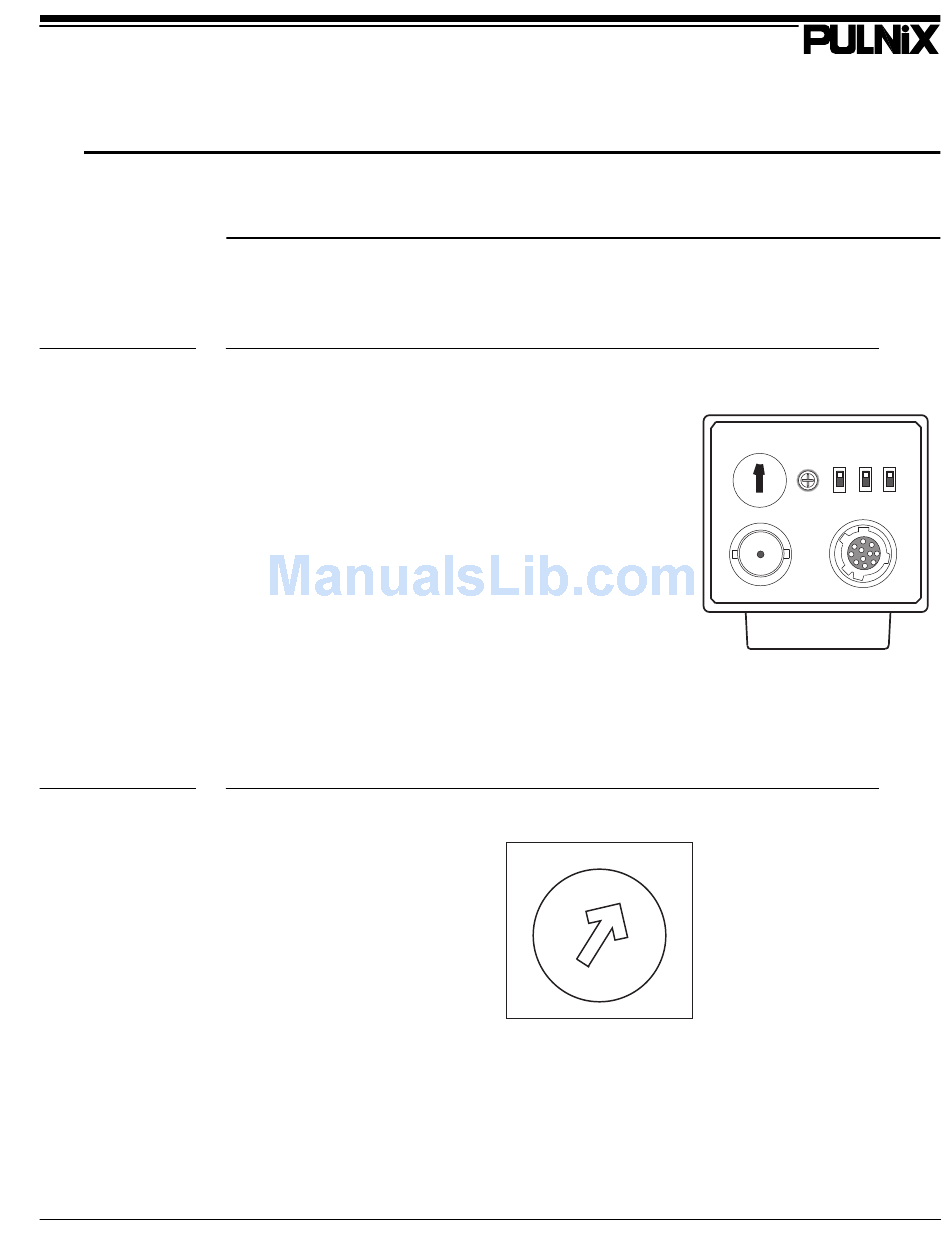

TM-200 Rear Panel
Gamma switch
Up = 1.0
Down = 0.45
AGC/MGC switch
Up = AGC (Automatic Gain Control)
Down = MGC (Manual Gain Control)
* When MGC is selected, the camera gain is adjustable
with the potentiometer on the back plate.
FLD/FRM Switch
Up = FLD (Field Mode)
Down = FRM (Frame Mode)
* Select FRM for strobe applications and FLD for high
shutter speed applications.

3.1.2 Shutter Control

Shutter Control Settings
Set Shutter Mode
0 1/60
1 1/125
2 1/250
3 1/500
4 1/1,000
5 1/2,000
6 1/4,000
7 1/10,000
8 N/C
9 N/C

3.1.3 Field and Frame Modes

The standard factory setting for the TM-200/TM-300 camera is FIELD MODE. The mode selection is
on the back panel of the camera.
0
9 1
8 2
3
7
4
6
5
Shutter Control Switch
SHUTTER
SPEED
1.0 AGC FLD
GAIN
0 1
9
8 2
3
7
6 4
0.45 MGC FRM
5
VIDEO
POWER
