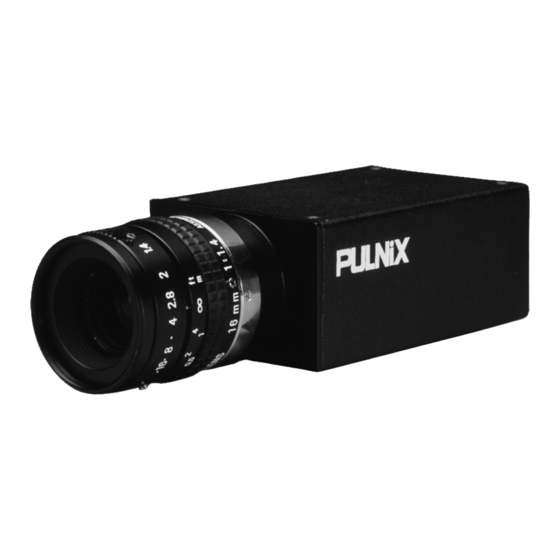

TM-75/76 High-Resolution CCD Camera
O p e r a t i o n M a n u a l
69-0088
Rev. A
I m a g i n g P r o d u c t s

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the TM-75 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Pulnix TM-75

Summary of Contents for Pulnix TM-75

  • Page 1 TM-75/76 High-Resolution CCD Camera O p e r a t i o n M a n u a l 69-0088 Rev. A I m a g i n g P r o d u c t s...
  • Page 2 The material contained in this manual consists of information that is proprietary to PULNiX America, Inc., and may only be used by the purchasers of the product. PULNiX America, Inc. makes no warranty for the use of its product and assumes no responsibility for any errors which may appear or for damages resulting from the use of the information contained herein.

  • Page 3: Table Of Contents

    3.2.6 Non-Interlace Operation........12 4 TM-75/76 External Signals ....13 4.1 External HD .
  • Page 4 7.2.1 Timing..........30 TM-75/76 High-Resolution CCD Camera...
  • Page 5 FIGURE 22. TM-75 Timing Chart ........30 FIGURE 23.
  • Page 6 Shutter Speed Control and Function .......9 TABLE 3. TM-75/76 Product Specifications Table......26 TM-75/76 High-Resolution CCD Camera...

  • Page 7: Introduction

    Introduction 1.1 Product Description The TM-75 is specifically designed to be a replacement for SONY’s XC-75 camera. It is an inexpensive yet high-quality camera that meets a variety of application requirements. This miniaturized high- resolution camera features an advanced Hyper-HAD interline transfer 1/2"...

  • Page 8: Functional Options

    Image capture can begin within a fraction of a second after turning on the camera. The power consumption is only 2.3W, 190mA @12V. • Camera mounting flexibility The TM-75/76 has tapped M3 holes on the top and bottom. A tripod mount is available as an optional accessory. • Three-year warranty The CCD solid-state image sensor allows the camera to maintain a superior performance level indefinitely while requiring virtually no maintenance.

  • Page 9: Interfacing To Frame Grabbers

    Page 3 Introduction 1.5 Interfacing to Frame Grabbers The TM-75/76 camera can be connected to a frame grabber using either the 12-pin connector or the BNC connector on the rear panel of the camera. 1.6 System Configuration Figure 1 (below) presents a typical system configuration for the TM-75.

  • Page 10: Installation

    2.2 Camera Setup 2.2.1 Connector Pin Configurations The TM-75/76 has a 12-pin connector for power input. In general, Pin #1 is Ground and Pin #2 is +12V DC. The other pins handle a number of other input and output functions, as shown in the table below.

  • Page 11: Power Supply And Power Cable

    2.2.2 (b) PULNiX Power Cables If you are using PULNiX power cables, such as the 12P-02S, please refer to the appropriate pin-out diagram. The color coded leads use Gray for Ground and Yellow for +12V DC. TM-75/76 High-Resolution CCD Camera...

  • Page 12: Figure 2. 12P-02S Interface Cable (Optional)

    The 12-pin connector is keyed and will only fit in one orientation. Follow these directions to properly attach the power cable to the camera connector: Rotate the connector while applying slight pressure until the keyways line up. Press the connector into place until firmly seated. TM-75/76 High-Resolution CCD Camera...

  • Page 13: Attaching The Video Output

    75Ω termination. Standard RG-59 type coaxial cable should carry a full video signal for up to 500 feet. To output the video and input the power and sync to a camera over a single cable, use the PULNiX multi-conductor cables, such as the 12P-02S, etc. The mini coaxial leads in PULNiX multi-conductor cables are designed for short runs of no longer than 100 feet.

  • Page 14: Operation

    Function selection for Trigger mode External VD or R-R mode selection TO FRONT MODE GAMMA SHUTTER 0.45 Factory Set is: Gamma=1.0 Mode switch ON/OFF Mode Cyclic Frame mode No TRIG mode External HD, VD Mode Shutter = 0 No shutter TM-75/76 High-Resolution CCD Camera...

  • Page 15: Internal Shutter Speed Control

    VD, internal VD is automatically generated. 3.1.3 Field and Frame Modes The standard factory setting for the TM-75/76 camera is FRAME MODE. The field and frame integration mode is selectable using the #2 switch of the mode switch inside the camera. The frame integration is used to separate all CCD pixels.

  • Page 16: Figure 3. Field/Frame Diagram

    Field mode, however, Frame mode has the disadvantage of showing vertical Moire. Frame mode should be used in applications that need strobe lighting, because full frame resolution is achieved in this mode. For higher pixel definition such as gauging and sub-pixel interpolation, Frame mode operation is recommended. TM-75/76 High-Resolution CCD Camera...

  • Page 17: Operating Modes

    2 is binned with row 3, row 4 with row 5, and so on. 3.2.2 Cyclic (Continuous) Shutter Mode With rotary switch shutter control, the TM-75/76 operates at the internally predefined shutter speeds. Each field output is exposed for the same period. The shutter control varies the substrate discharge timing.

  • Page 18: Reset-Restart Mode

    Operation 3.2.3 External Sync Mode TM-75/76 accepts standard RS-170 external sync, which is defined as horizontal sync (HD) and vertical sync (VD). The phase-locked loop jitter is designed to be the minimum (< 5ns) in this category using the latest PLL chip. The wide capture range enables the camera to operate at an extended temperature range (optional) of -35°C to 65°C.

  • Page 19: Tm-75/76 External Signals

    External sync (HD, VD sync) and Reset-Restart operation. 4.1 External HD When external HD is supplied to pin #6 of the 12-pin connector, the TM-75/76 automatically switches the clock to phase-lock to the external clock via HD PLL (phase lock loop). The PLL detects the leading edge of external HD and Phase compare with the internal HD.

  • Page 20: External Trigger (Trig) And Internal Sampling Clock

    4.4 External Trigger (TRIG) and Internal Sampling Clock To ensure stable operation without the influence of jitter, the TM-75/76 samples shutter trigger pulse (TRIG) by internal sampling clock (LCLK) and detects the low to high level change of TRIG. The sampling occurs only at HD leading edge timing to generate the internal TRIG as shown below.

  • Page 21: Trigger Pulse For Pulse-Width Shutter Control

    For snapshot mode (Donpisha shutter), the TRIG pulse width can be wider than just 2 pixel clocks wide (>150nsec) since this mode only requires pixel clock data strobing. The internal TRIG is generated at any random point and stays high until transfer gate pulse is completed. TM-75/76 High-Resolution CCD Camera...

  • Page 22: Operation Mode

    In Field 2, the pairs change to row 2 and 3, 4 and 5 and so on. This field mode accumulation is effective for electronic shutter applications as it generates twice as sensitive an image as frame mode. The electronic shutter output is always one field image per shutter. TM-75/76 High-Resolution CCD Camera...

  • Page 23: Continuous Shutter

    The discharge pulses occur in every horizontal line (in blanking) and stop at a predefined shutter timing in one field. The duration between the last discharge and transfer determines the exposure time. Continuous Shutter Timing FIGURE 11. Discharge Pulse Transfer Gate Accumulation (Exposure) Video TM-75/76 High-Resolution CCD Camera...

  • Page 24: Snapshot Reset-Restart Shutter (Donpisha Shutter)

    Donpisha Timing FIGURE 12. EXT. VD (R-R) 9.5H (EIA), 14.5H (CCIR) TRIG Discharge Transfer Gate Accumulation (Exposure) Video VD (R-R) 150nsec Min. TRIG 1.9µsec DISCHARGE EXPOSURE 9.5H (EIA), 14.5H (CCIR) TRANSFER TM-75/76 High-Resolution CCD Camera...

  • Page 25: Pulse Position Reset-Restart Shutter

    VD (Internal) Shortest Exposure Example: 8H for EIA, 13H for CCIR EXT. TRIG INTERNAL TRIG Exposure Time: = (9.5H -1H) - 8 H=0.5H (EIA) = (14.5H-1H) -13H=0.5H (CCIR) DISCHARGE Min. Exposure (1/2H) 9,5H (EIA), 14.5H (CCIR) TRANSFER TM-75/76 High-Resolution CCD Camera...

  • Page 26: Pulse Width Control Reset-Restart Shutter

    HD and Reset-Restart VD. Pulse Width Shutter: Asynchronous Timing FIGURE 16. R-R VD Missing VD TRIG (pulse width) DISCHARGE EXPOSURE TRANSFER GATE V SHIFT REGISTER no VD, no clock Stop clock Stop clock VIDEO TM-75/76 High-Resolution CCD Camera...

  • Page 27: Figure 17. Pulse Width Shutter: Continuous Timing

    Pulse Width Shutter: Continuous Timing FIGURE 17. TRIG falling edge must be within 9H(EIA), 14H(CCIR) from VD R-R VD V Clock starts at 9H (EIA), 14H (CCIR) 10H(EIA), 15H(CCIR) TRIG (pulse width) DISCHARGE EXPOSURE TRANSFER GATE V SHIFT REGISTER VIDEO TM-75/76 High-Resolution CCD Camera...

  • Page 28: Troubleshooting

    PULNiX representative. 6.1.1 Symptom: No Video Remedies: Check that the following are properly connected and operational. • Power supplies Power cables • • Main power source • Shutter control Async mode • • Lens TM-75/76 High-Resolution CCD Camera...

  • Page 29: Troubleshooting Flowchart

    Video output failure Sync exists? Shutter Mode setting problem normal? External sync or See External sync problem section Trigger applied? Signal board problem CDS output? CCD or Timing Gen board or CCD output? CCD driver problem TM-75/76 High-Resolution CCD Camera...

  • Page 30: Troubleshooting Flowchart 2

    Frequency capture range, PLL circuit problem Locking PLL jitter, Termination, Image Noisy external sync stable? VD locks? Sync reset problem VD is set to standard Mode selection error or Reset-restart? Check TRIG input and timing TRIG exists? TM-75/76 High-Resolution CCD Camera...

  • Page 31: Information And Support Resources

    Page 25 Troubleshooting 6.4 Information and Support Resources For further information and support: Phone: (408) 747-0300 (800) 445-5444 (800) 3-PULNIX (24-hour message access) Fax: (408) 747-0660 E-mail: imaging@pulnix.com Mail: PULNiX America Inc. Sales Department 1330 Orleans Drive Sunnyvale, CA 94089...

  • Page 32: Appendix

    Page 26 Appendix Appendix 7.1 Specifications 7.1.1 Product Specifications TABLE 3. TM-75/76 Product Specifications Table Model TM-75(EIA) TM-76(CCIR) Imager 1/2" Interline transfer CCD, HAD type Pixels 768(H) x 494 (V) 752 (H) x 582 (V) Cell size 8.4µm x 9.8µm 8.6µm x 8.3µm...

  • Page 33: Physical Dimensions

    56.0 (2.20) 4X M3 25.0 (0.98) 26.0 (1.02) 32.2 (1.27) 25.0 (0.98) 4X M2 7.1.3 C-Mount Specifications The TM-75/76 lens mount is standard C-mount. 7.1.3 (a) Front End Detail Front End Detail FIGURE 19. Image plane 18.17 (0.715) SCREW THREAD: 1"-32UNC...

  • Page 34: Figure 20. Combination With "Cs-Mount" Camera

    CS-Mount camera when a 5mm extension ring is inserted between the lens and the camera. • Backfocus adjustable front end For close-up and specific backfocus requirements, this front end comes with an adjustable C-mount ring. TM-75/76 High-Resolution CCD Camera...

  • Page 35: Spectral Response

    Page 29 Appendix 7.2 Spectral Response Spectral Response FIGURE 21. 1000 1100 1200 Wavelength (nm) TM-75/76 High-Resolution CCD Camera...

  • Page 36: Timing

    Active Image Area Signal Composite Video H BLANK Active Image Area H SYNC 4.89 usec 910 (63.56 usec) 1 H (Horizontal Line) O.B. Active Image 242.5H Video Output 242.5H V BLANK V BLANK Active Image 262.5H (One Field) TM-75/76 High-Resolution CCD Camera...

  • Page 37: Figure 23. Tm-76 Timing Chart

    Signal Composite Video Active Image Area H BLANK H SYNC 4.89 usec 908 (64.0 µsec) 1 H (Horizontal Line) O.B. O.B. Active Image 287.5H Active Image Video Output 287.5H V BLANK V BLANK 312.5H (One Field) TM-75/76 High-Resolution CCD Camera...
  • Page 38 Page 32 Appendix TM-75/76 High-Resolution CCD Camera...
  • Page 39 I m a g i n g P r o d u c t s PULNiX America, Inc. Tel: 408-747-0300 1330 Orleans Drive Tel: 800-445-5444 Sunnyvale, CA 94089 Fax: 408-747-0660 Email: imaging@pulnix.com w w w . p u l n i x . c o m 69-0088 Rev.
