4.2.7 Aperture Control

The default setting is Aperture Off. Switching on Aperture can enhance the edges of

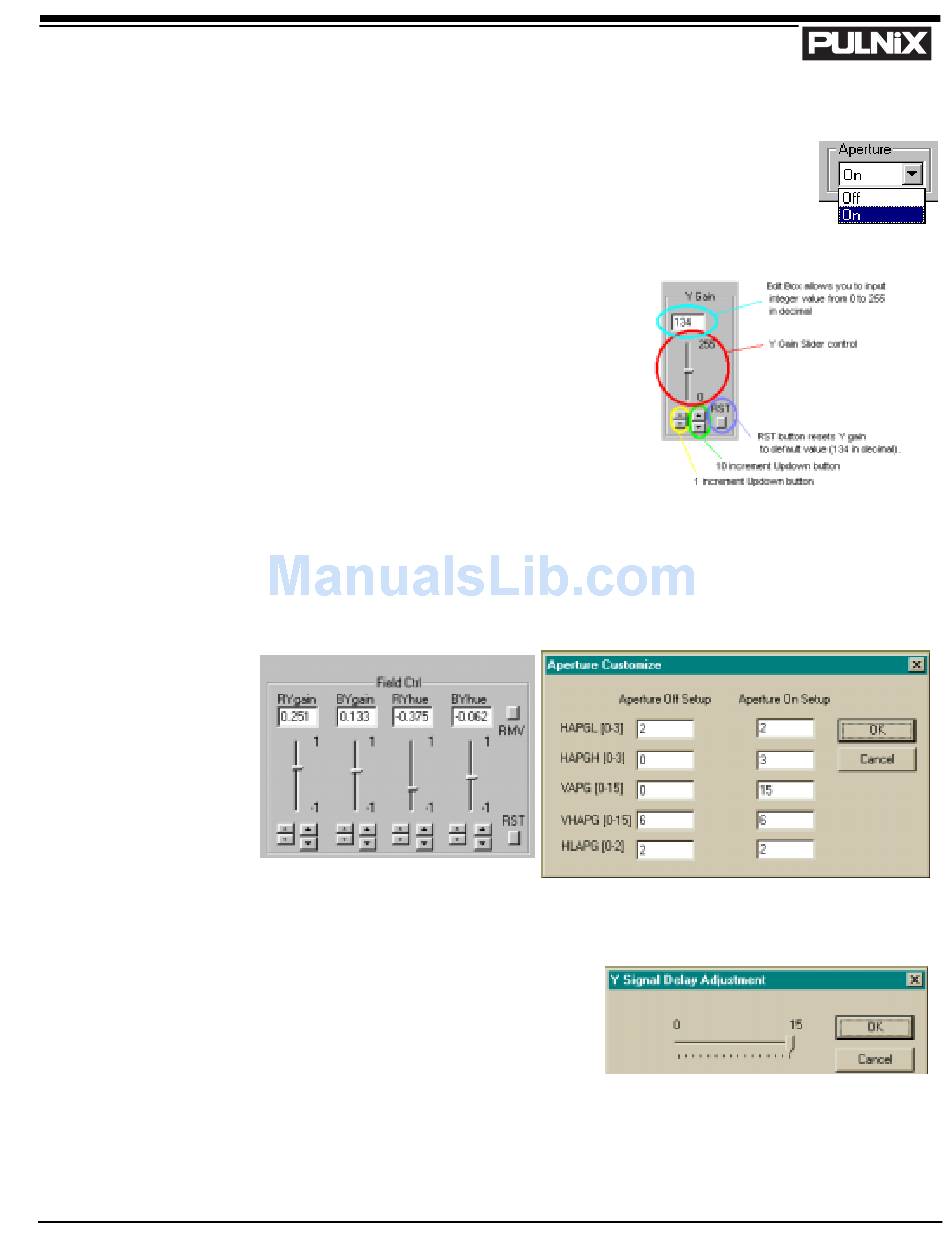

an image horizontally and vertically. Aperture ON/OFF is selected by choosing On
or Off from the Aperture menu (right).

4.2.8 Y Gain Control

Default Y Gain is set as 134 in decimals. To change this
value, edit the value in the Edit box (right), either by sliding
the Y Gain slider control or by clicking the large and small
up/down arrow buttons. The larger up/down arrow button
varies the value in increments of 10, while the smaller up/
down arrow button varies the value in increments of 1. The
RST button resets Y gain to the default value.

4.2.9 Advanced Control

Special advanced controls, such as Hue control (RYgain, BYgain, RYhue and BYhue), Fix White
Balance Preset Value, Customized Aperture and Y Signal Delay Control are available by request.
Advanced controls are enabled only if the user is authorized with a valid password distributed by
PULNiX. Please contact the PULNiX America Sales Department to request these advanced controls
(See "Information and Support Resources" on page 27.).

4.2.10 Write Current Setting

The current setting can be saved onto the hard disk
of your PC as a file, or into the TMC-7DSP/TMC-
6DSP's EEPROM.
TMC-7DSP/TMC-6DSP Color CCD Camera Page 23
